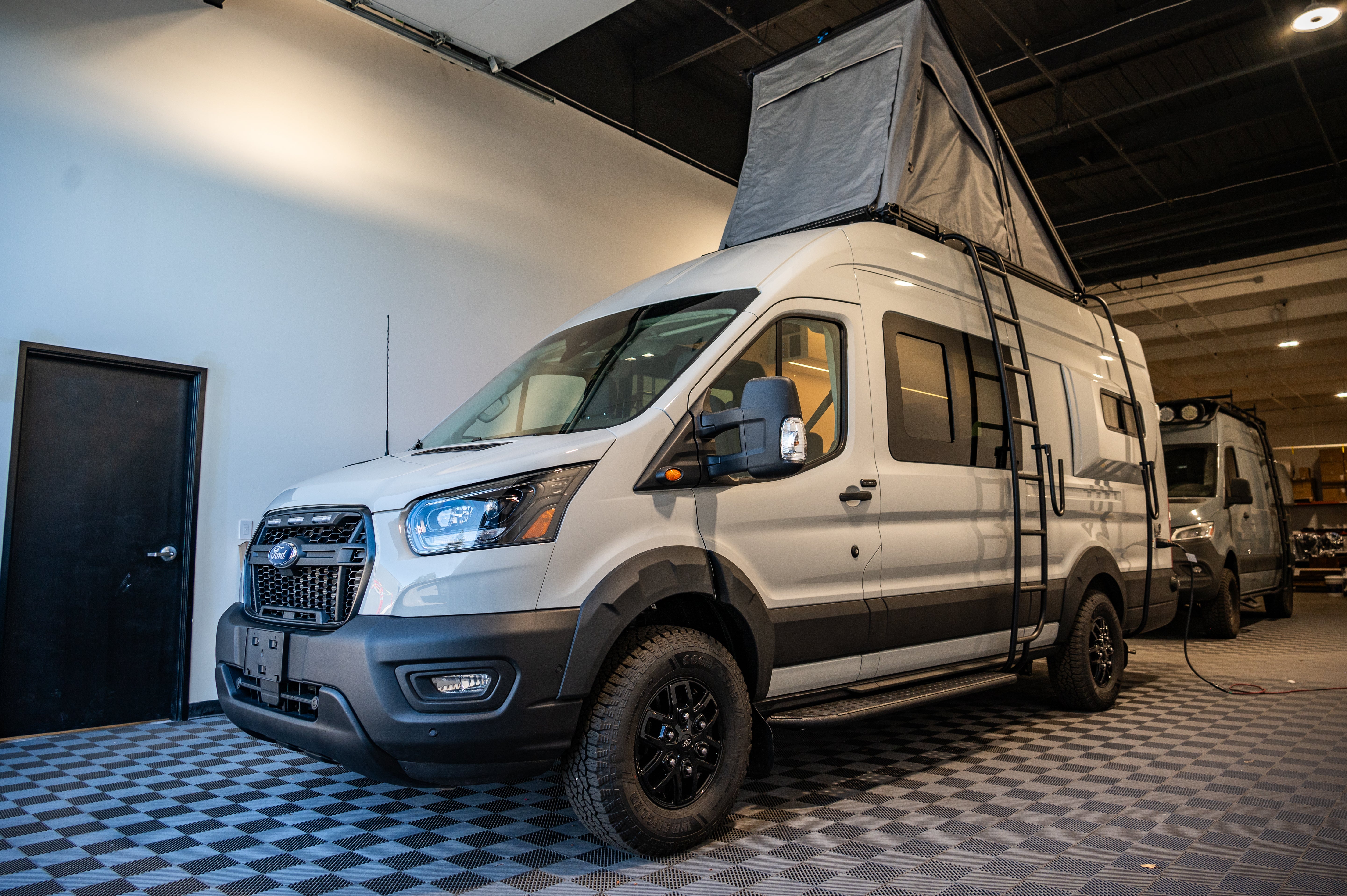

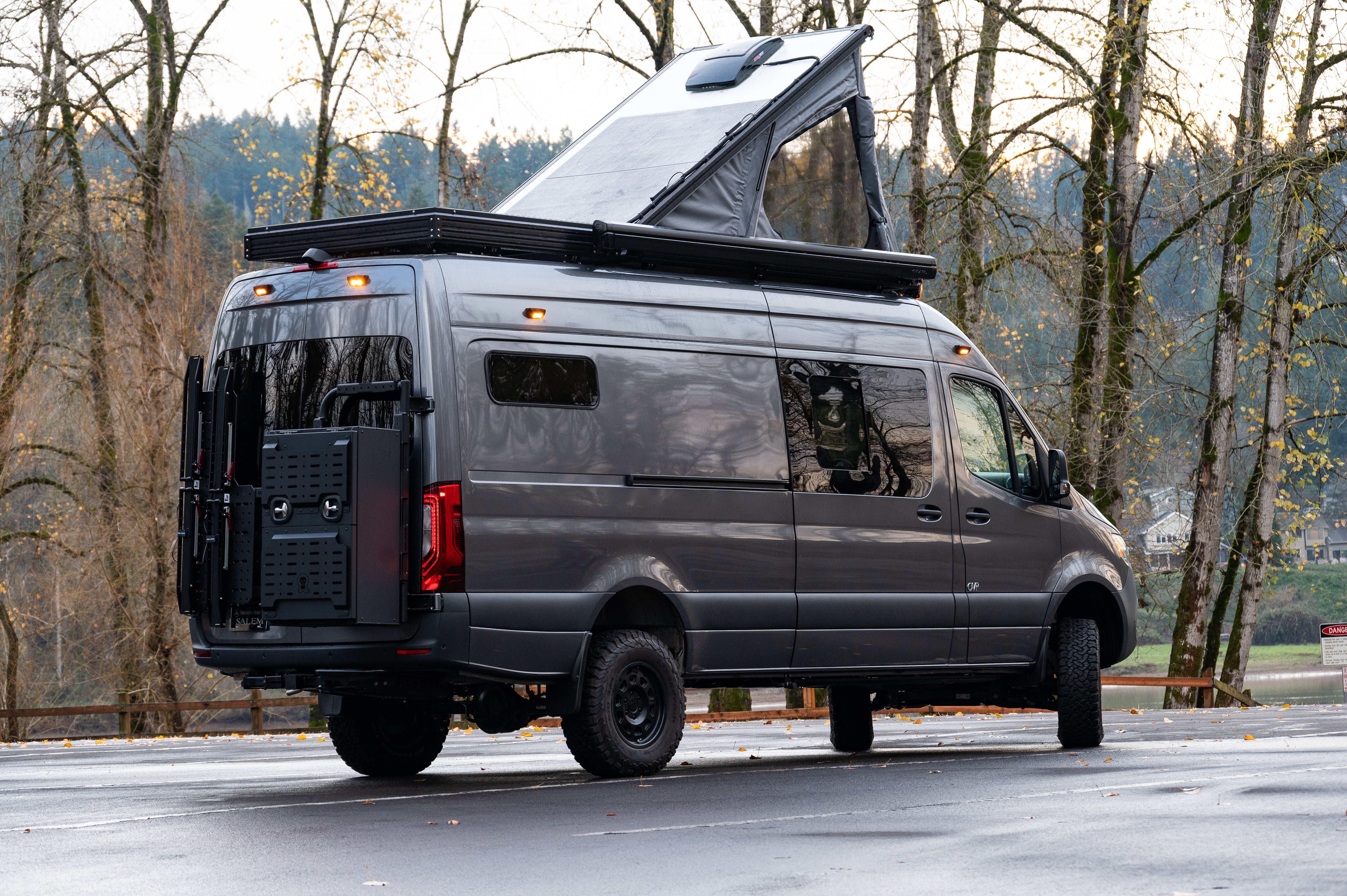

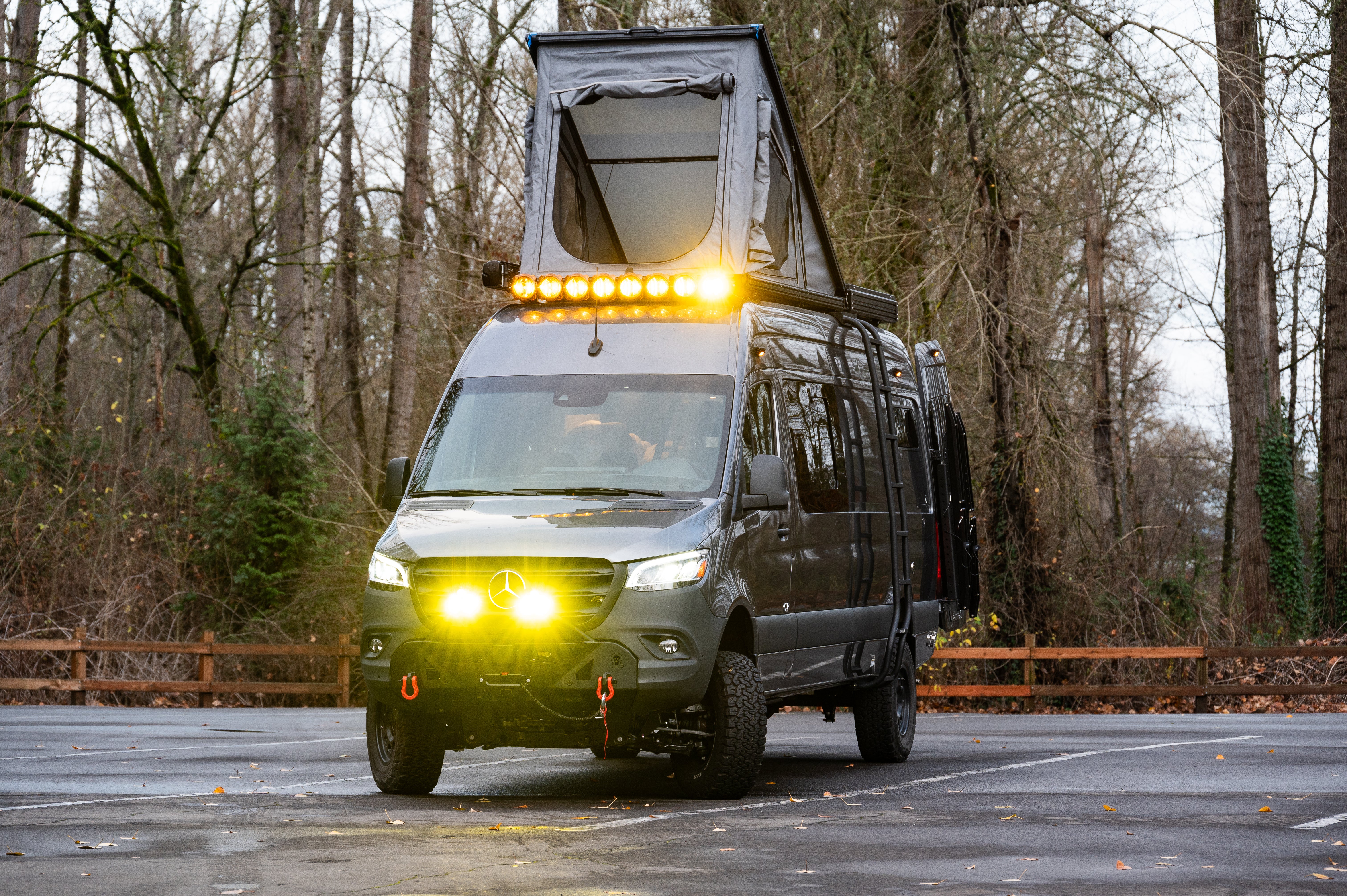

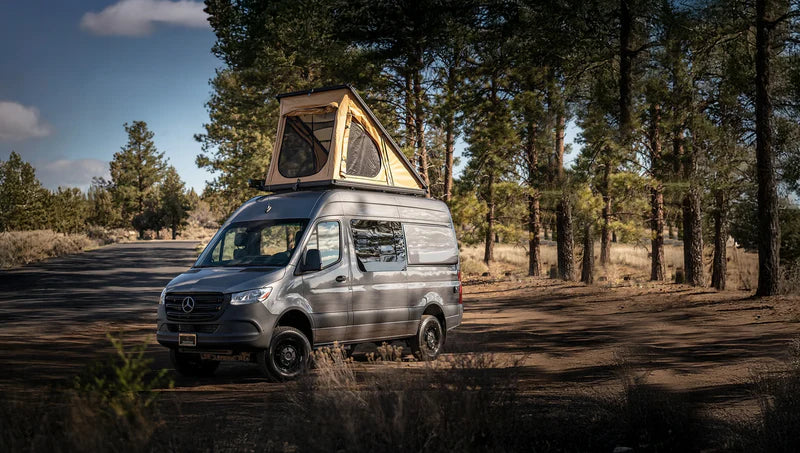

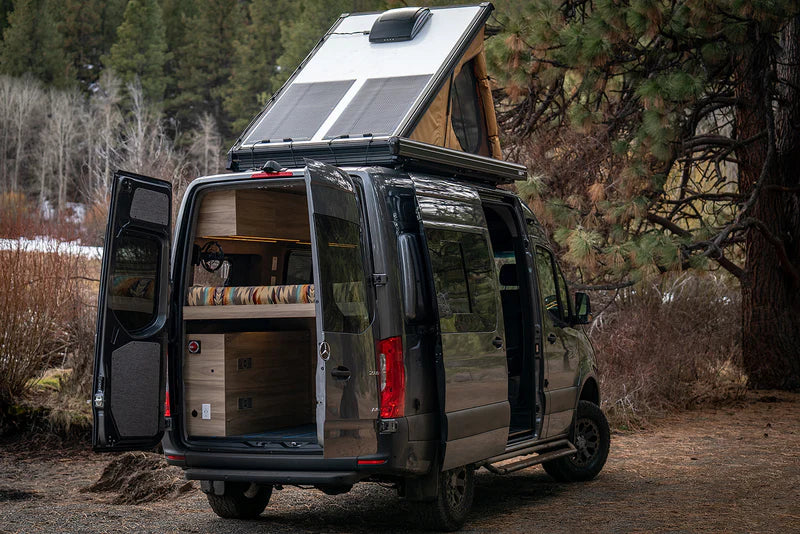

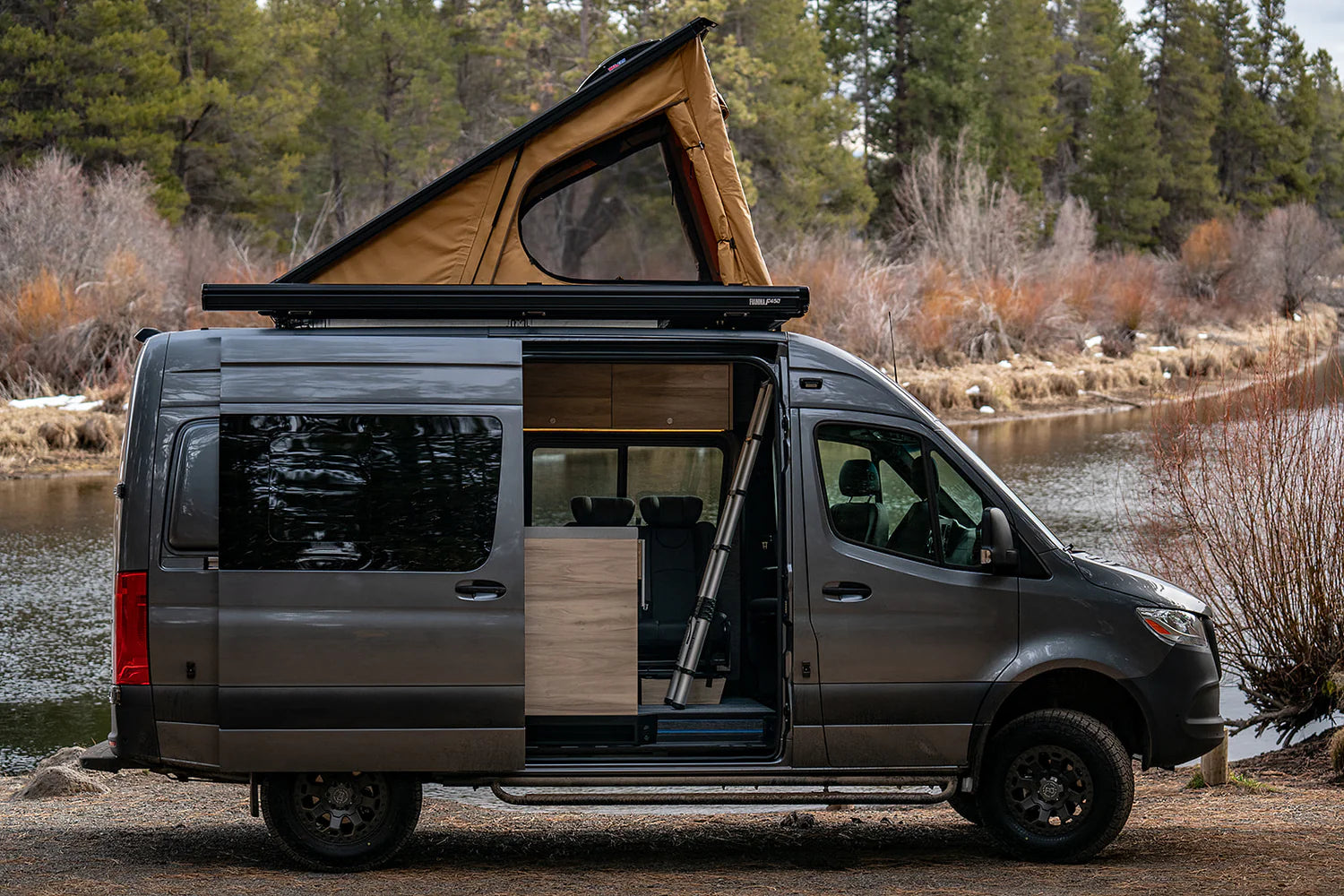

CloudCap is the pop-top built to handle the rigors of overlanding and off-road adventuring without leaving your favorite gear behind. It's rugged, modular and 4-season ready.
A loft bedroom for two, a private bunkhouse for the kids, a guest room for friends, or a panoramic crow's nest for you. CloudCap expands your van's living space.
The Preferred Pop-Top of Premium Builders.
ONLY AVAILABLE TO PURCHASE WITH INSTALL AT THE OVP INSTALL CENTER.
why add cloudcap

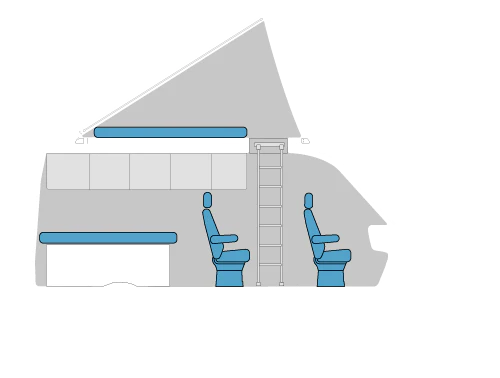

The Seat 4 Sleep 4
Turn your van into a seat 4, sleep 4 with beds & seating for the whole family.

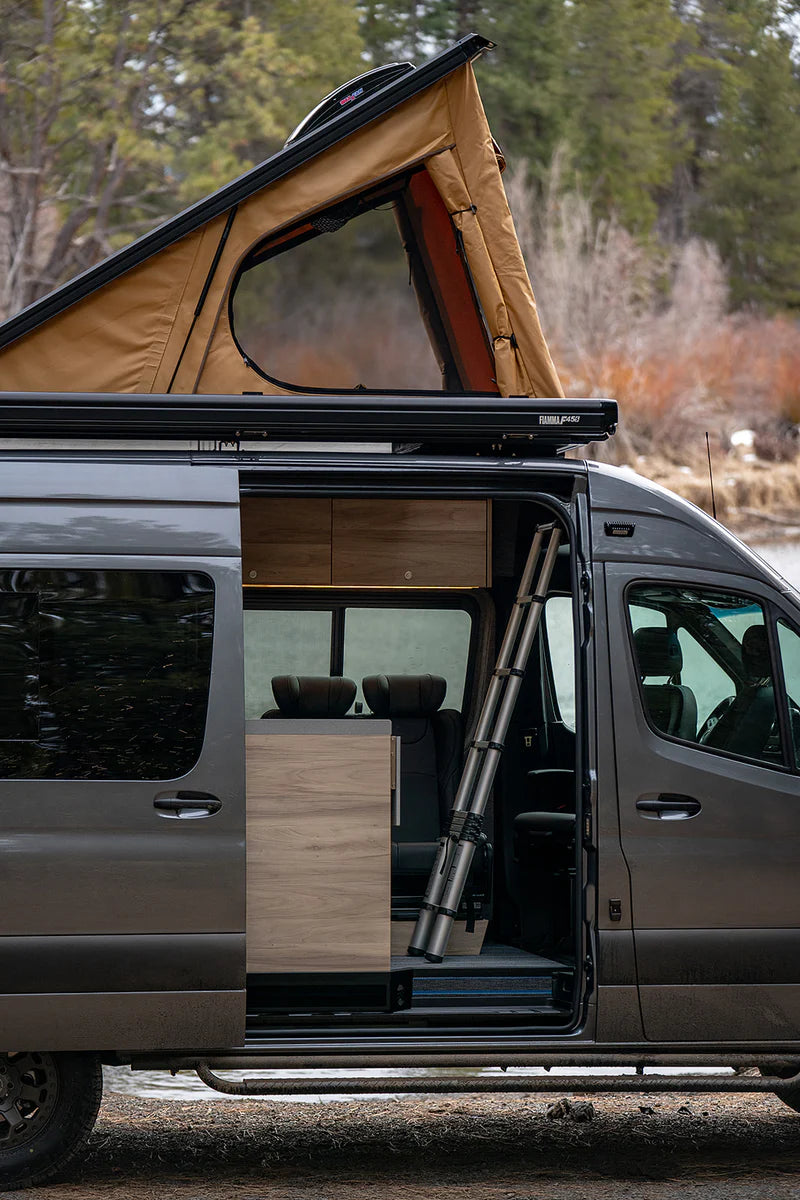

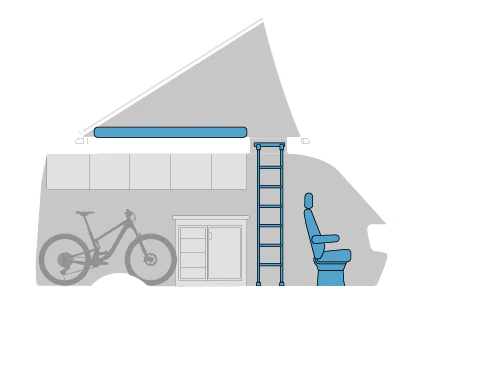

THE GEAR HAULER
With a dedicated loft bed you can maximize space for lounging or hauling gear.
Product Overview
Features

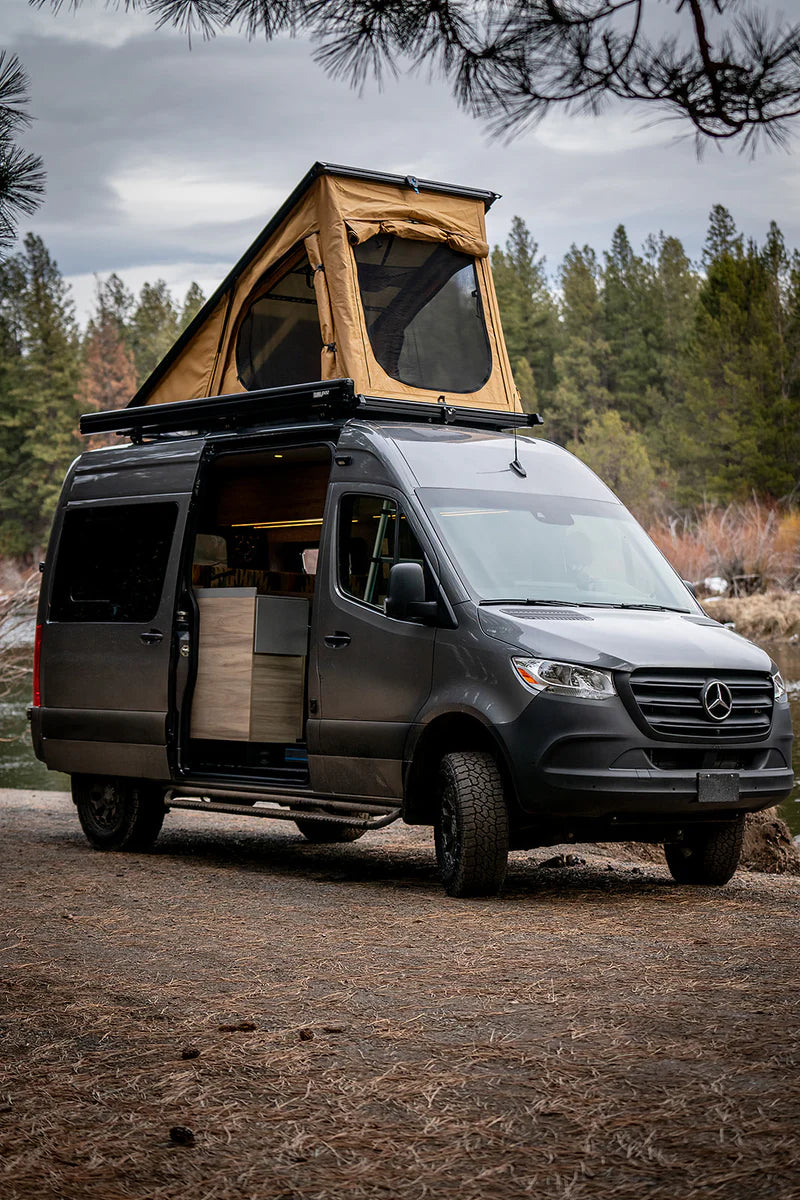

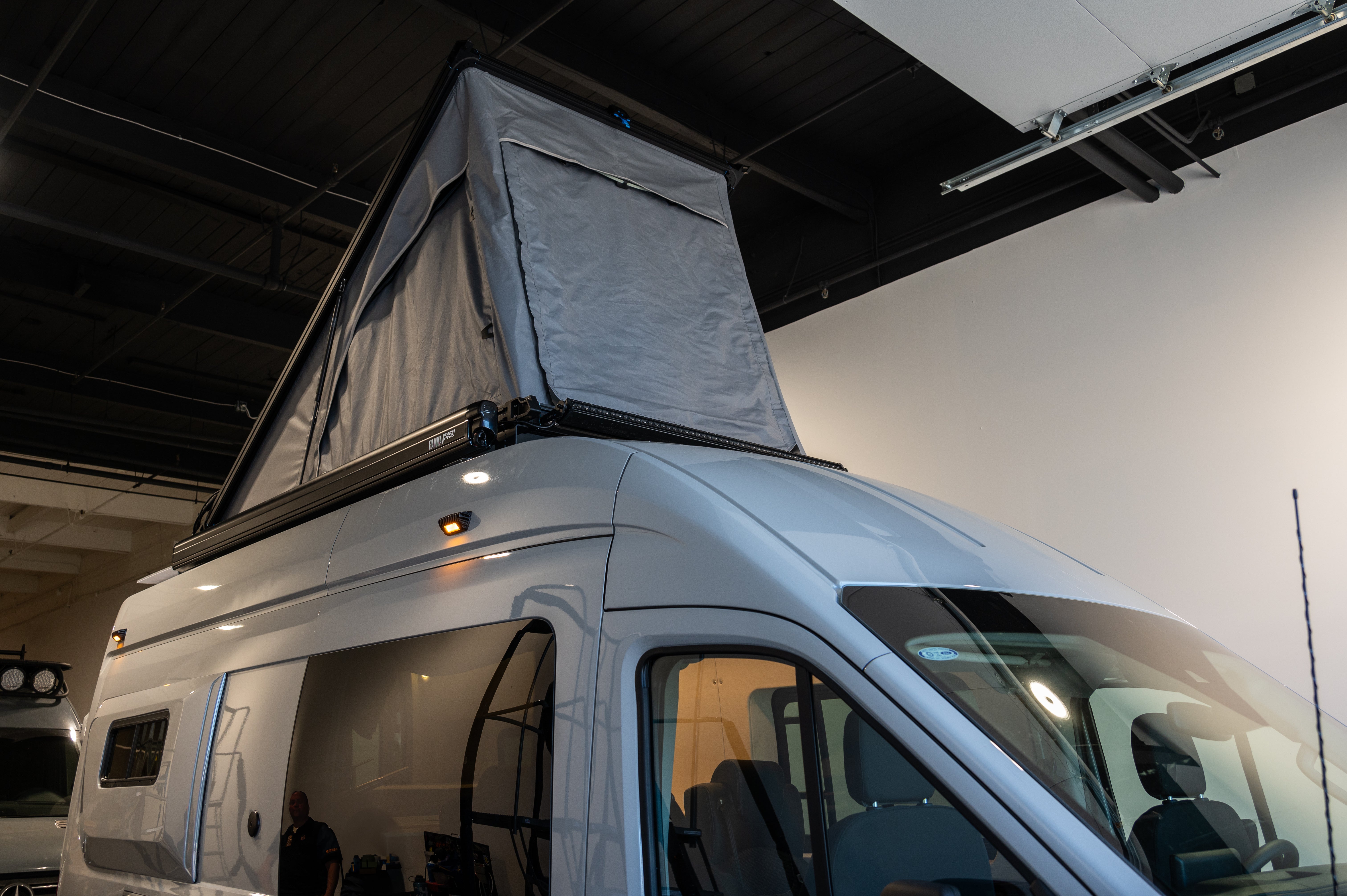

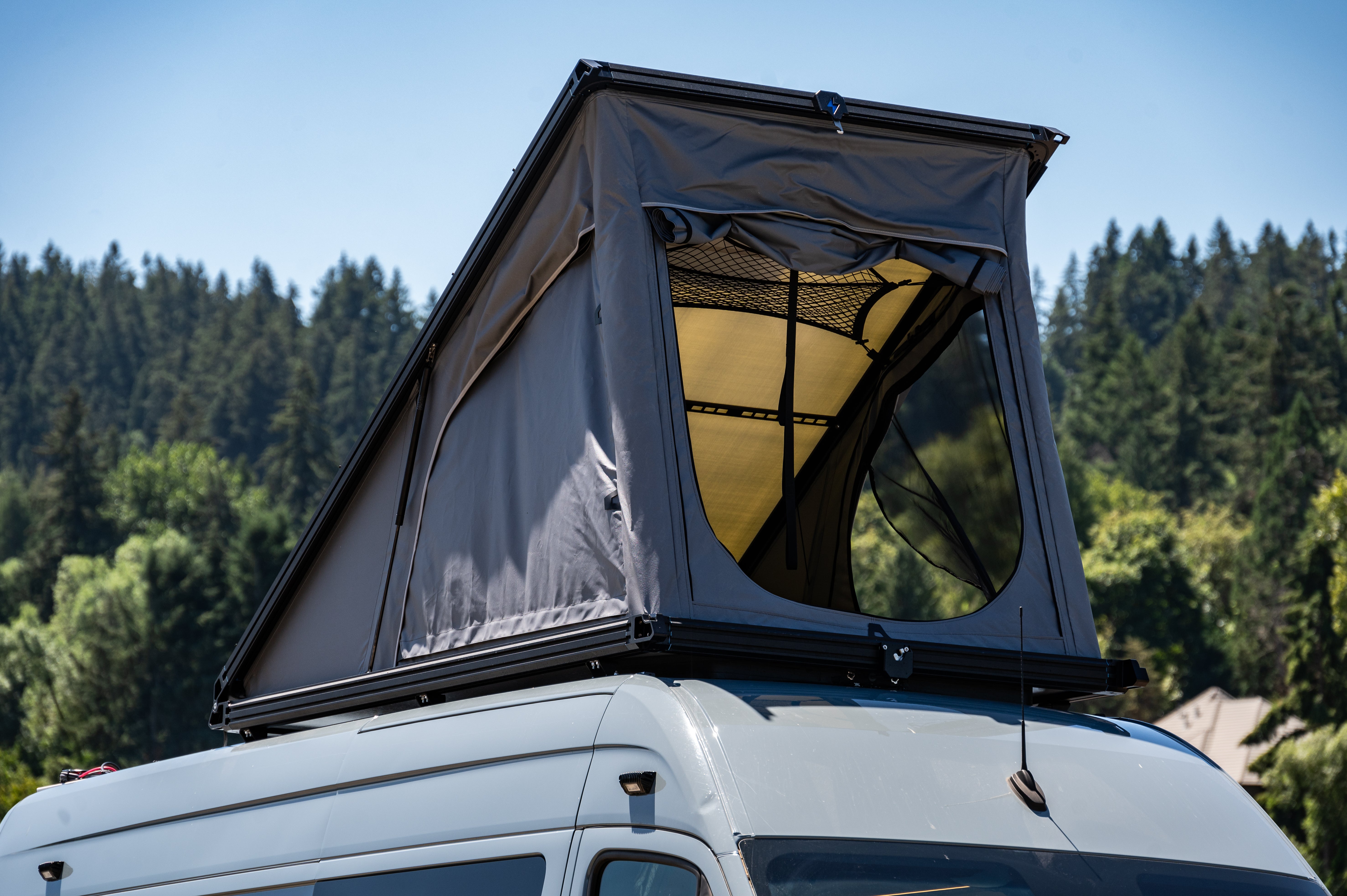

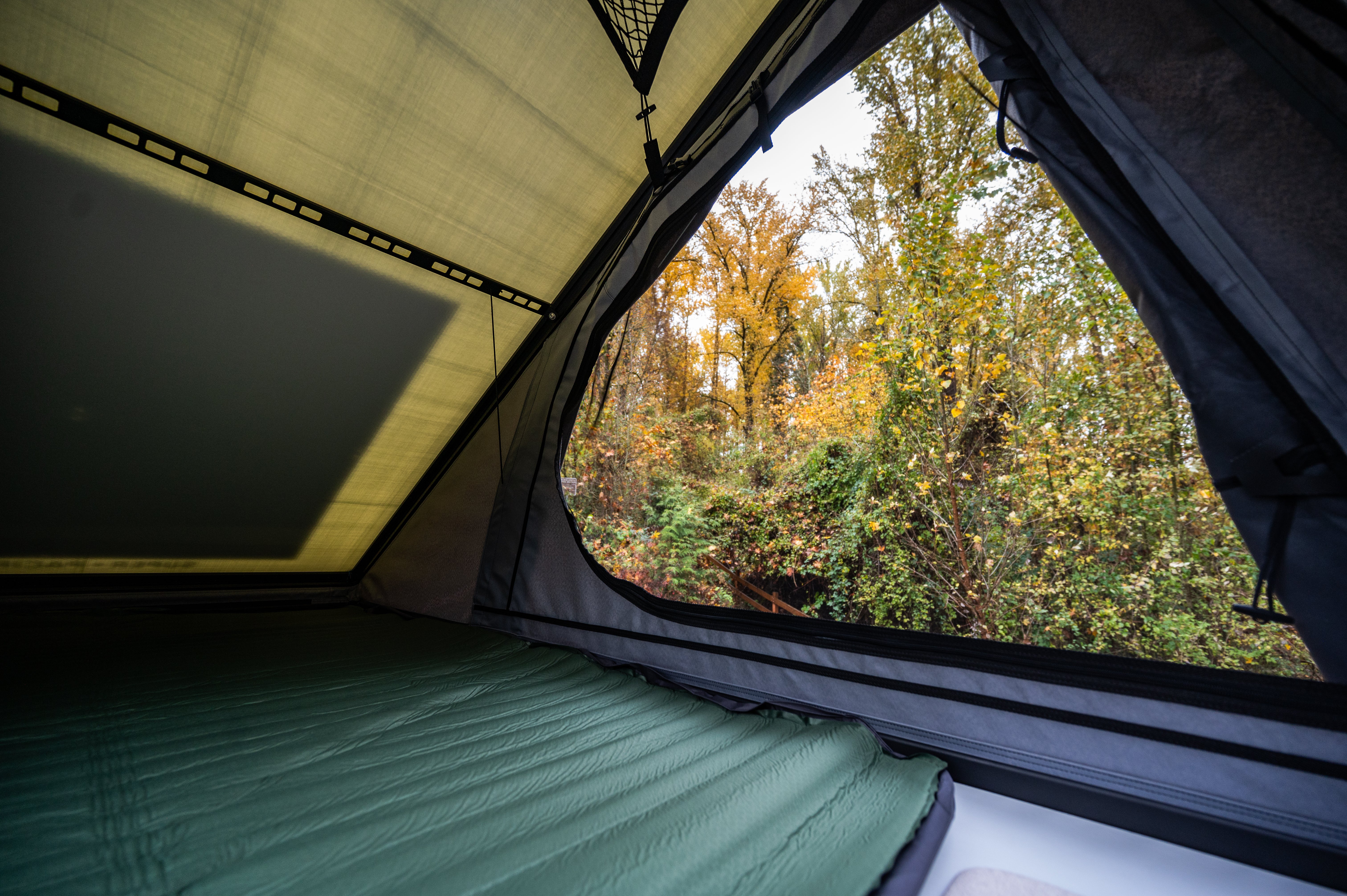

CloudCap 4-Season Tent.
Marine-grade tent: The tent uses a burly 9 oz. acrylic-impregnated polyester material.
Thermapuff insulation: The optional insulation kit adds a a 3.4 R value layer of lofted barrier.
Storm doors: The tent features 3 zippered storm doors that cab be opened from inside the tent to take in the view
Flowstate vents: Adjustable vents above each tent door offer passive ventilation.

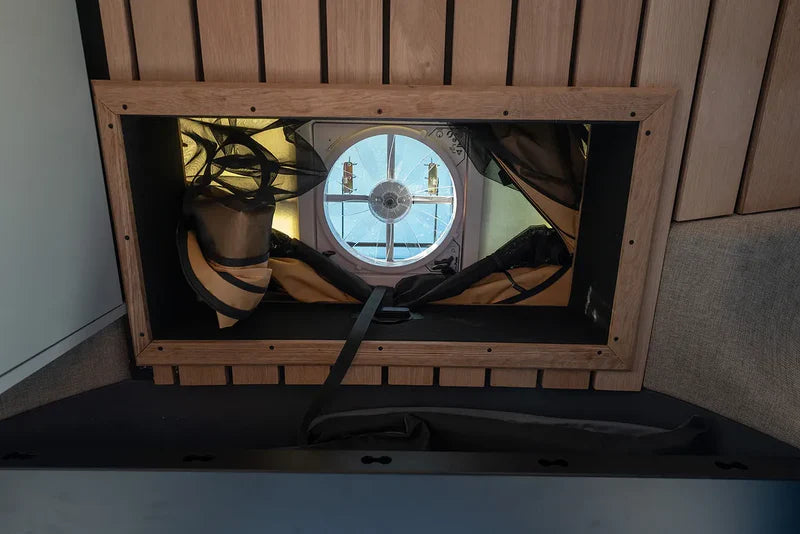

Maxxair fan: Optional vent fan helps control airflow and minimize condensation. Fan can be operated when CloudCap is either open or closed.
Bug screens: No-see-um rated zippered screens cover each tent door opening.

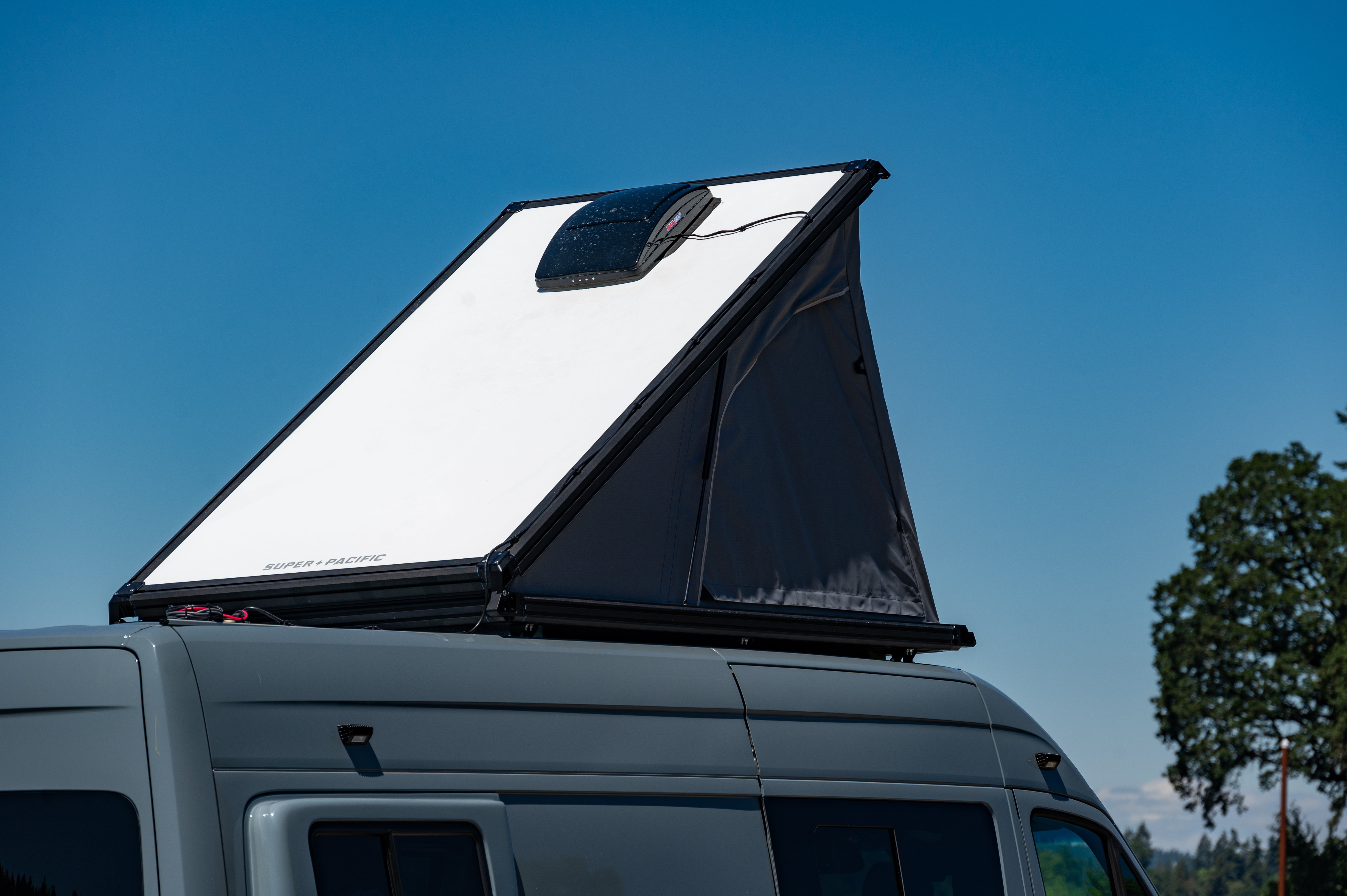

your roof is your rack
500 LBS. Dynamic Load: *Subject to your van's roof load capacity.
300 LBS. Walking Load: A durable roof that's tough enough to walk on.

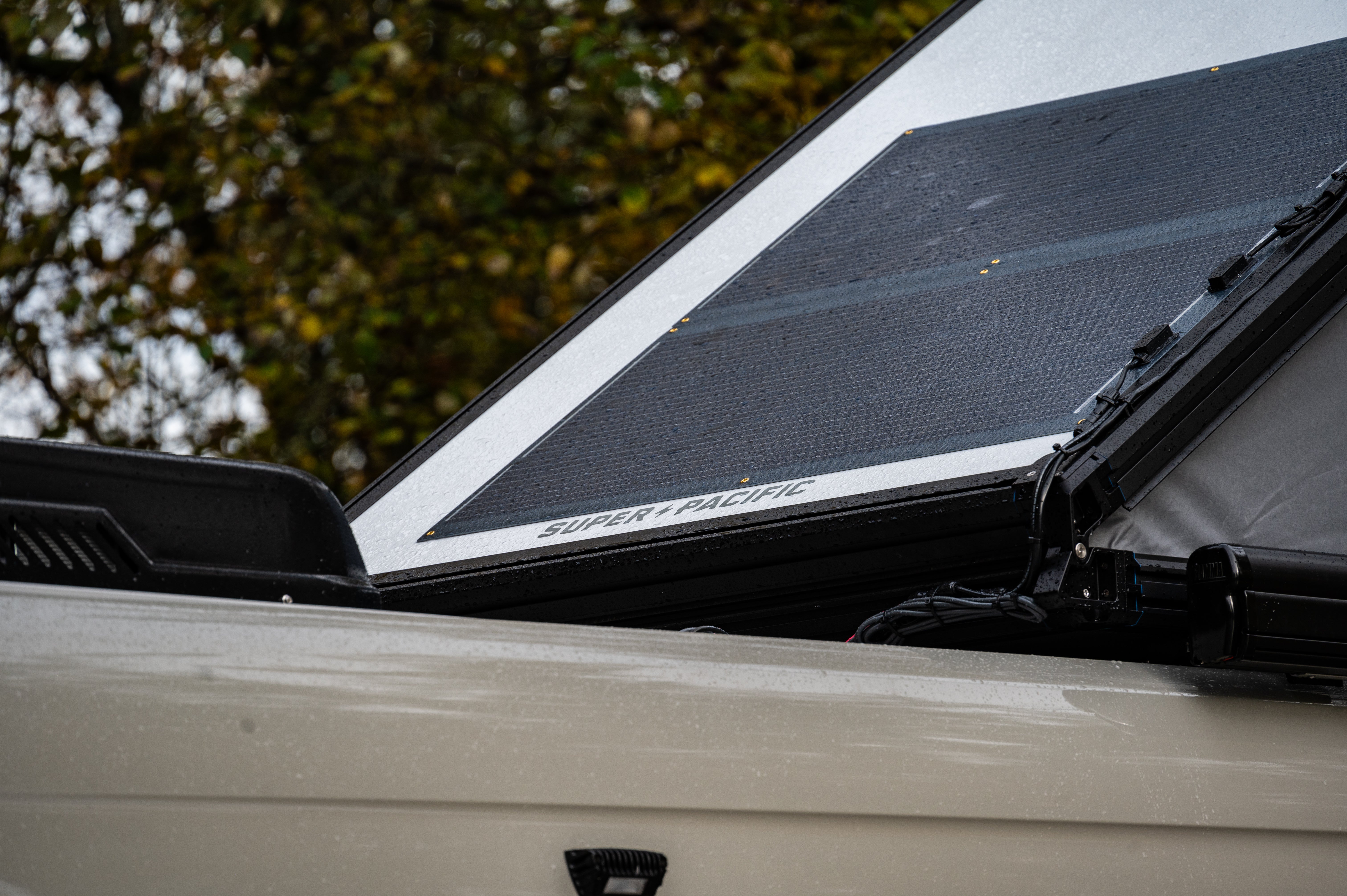

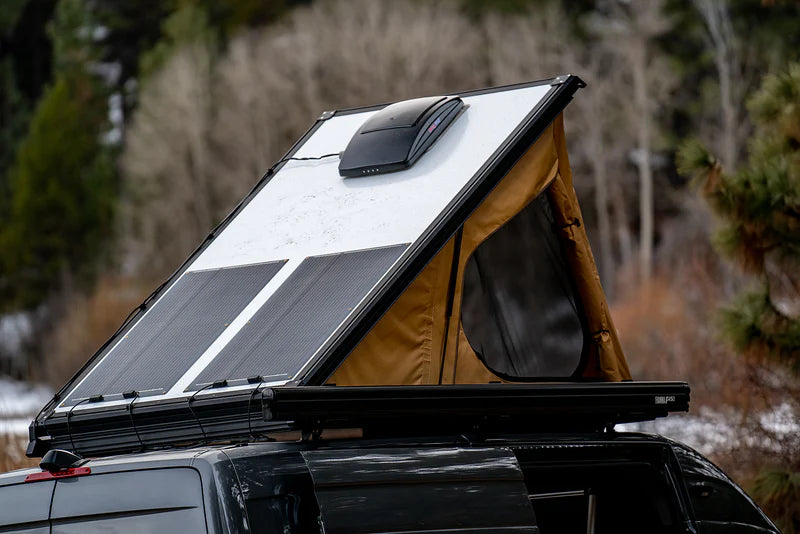

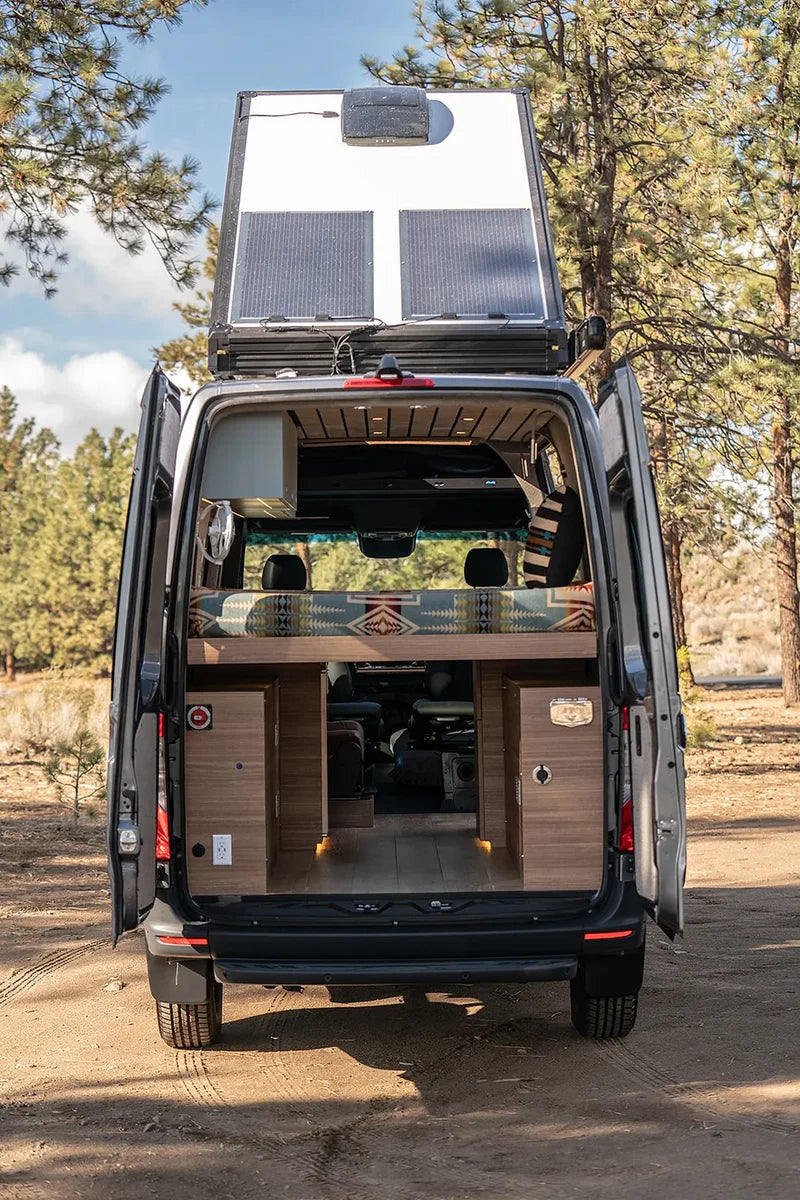

Up To 630 WATTS Solar: Ample roof capacity for maximum wattage.

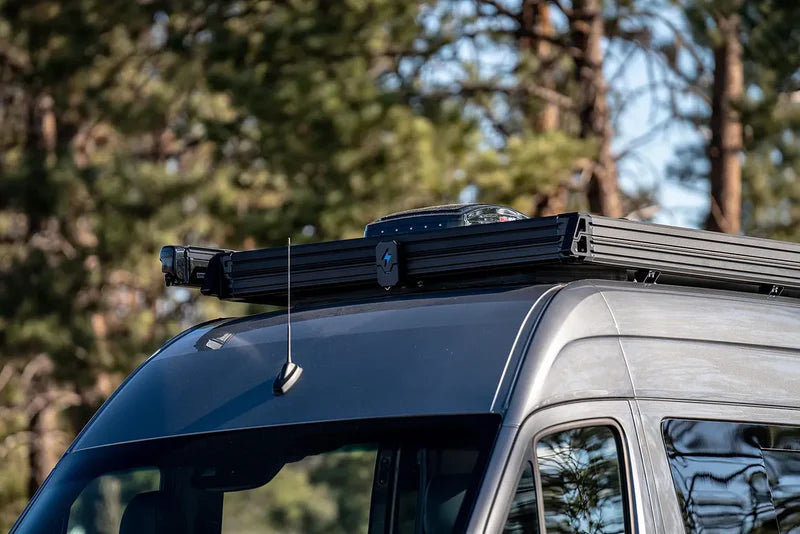

T-slots: Over 1,200" of universal t-slots on the exterior, interior, and roof.
Compatibility

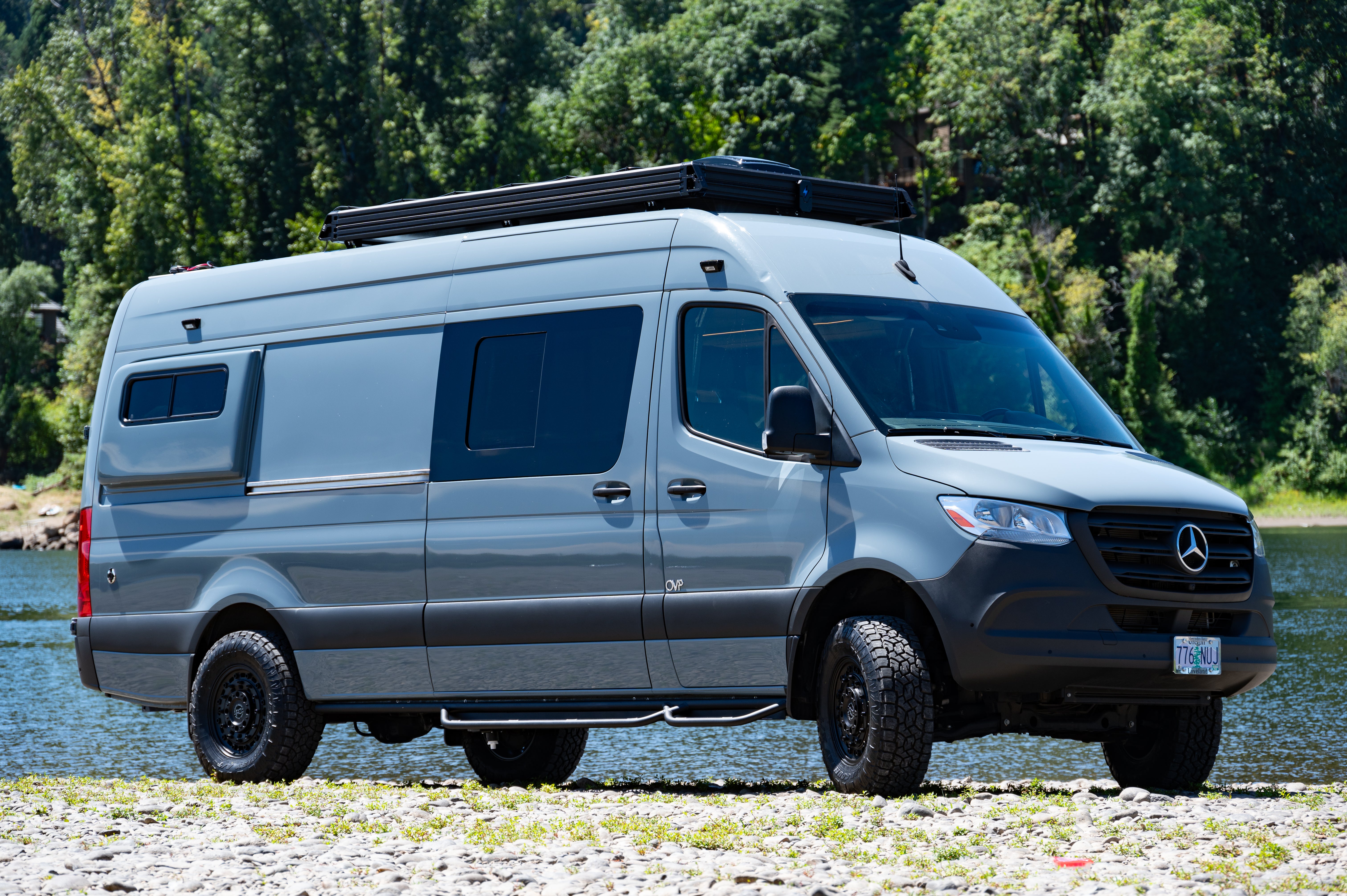

Mercedes Sprinter:
144" | Low Roof
144" | High Roof
170"
170" Extended
Ford Transit:
148" | Mid Roof
148" | High Roof
148" Ext | Mid Roof
148" Ext | High Roof
Specs
Weight:
220 lbs.
Dimensions:
Closed: 52" W x 110" L x 6" H
Open: 52" W x 110" L x 56" H
Pass-through Opening: ~18" W x 36" L
Roof Capacity:
Closed: Dynamic Load: 500 lbs.(subject to your van's roof capacity)
Closed: Walking Load:300 lbs.
Open: ~75 lbs.(upgradeable to 125 lbs.)
T-Slot Dimension:
10mm opening x 20 mm slot
Uses Series 45 T-nut
Materials
Soft-Sided Tent:
9 oz. Acrylic-Impregnated Marine-Grade Polyester
No-see-um rated Bug Screen material
Roof:
.5" Polypropelene Honeycomb panel - white
Sleeping Platform:
.5" Polypropelene Honeycomb panel - white
Extrusion:
Custom extruded Aluminum
Powder-coated Black
Corner Hardware, Hinges, and Latch Mechanism:
CNC-machined billet Aluminum
Architectural-grade UV resistant anodizing
Installation
Warranty
Super Pacific provides the following CloudCap warranty:
