Travel Van House Systems Cabinet

SKU: UN1013B
In stock
$2,195.00
  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Flat rate shipping
Durable laminate countertop
OVP Install Center- For your install needs

Chat with our team

Email +1 (402) 366-9037
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Need help? OVP Install Center is here to help!

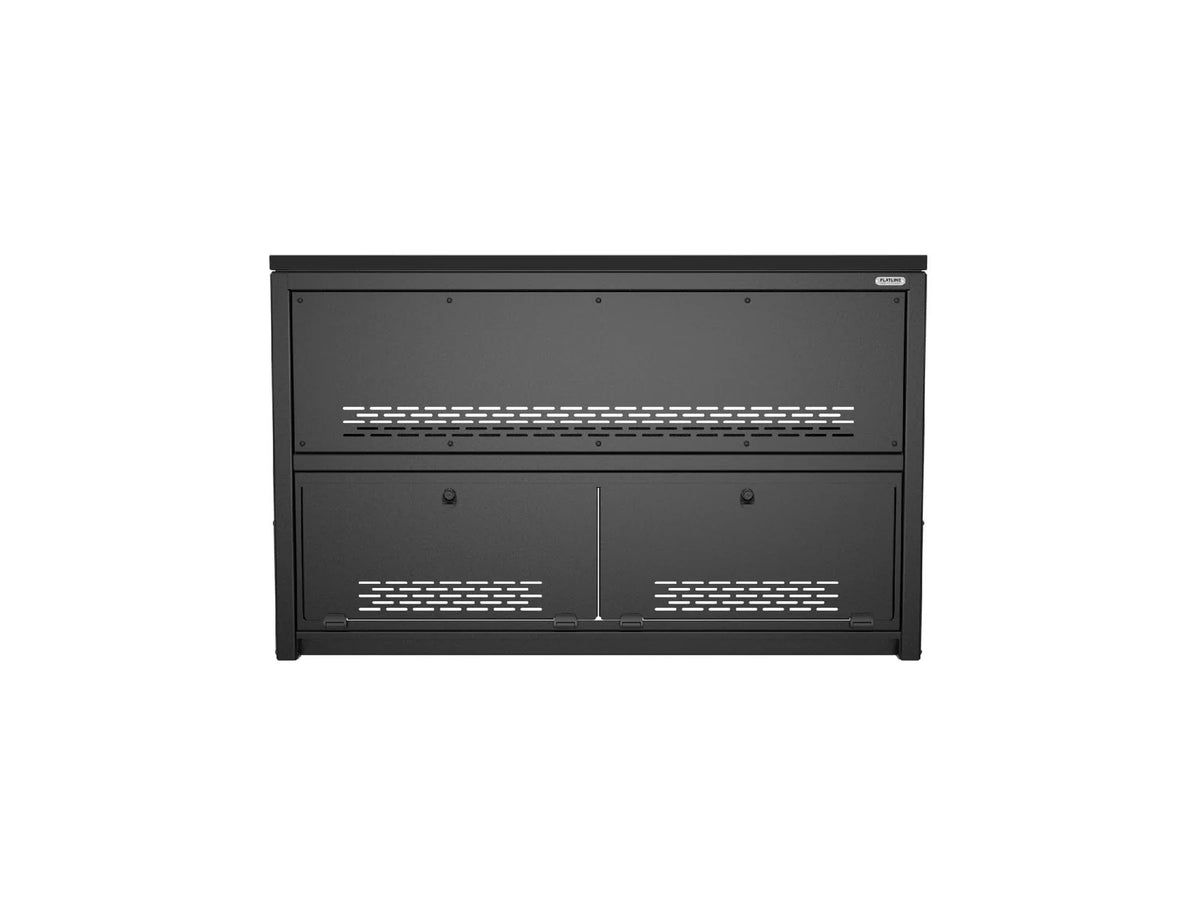

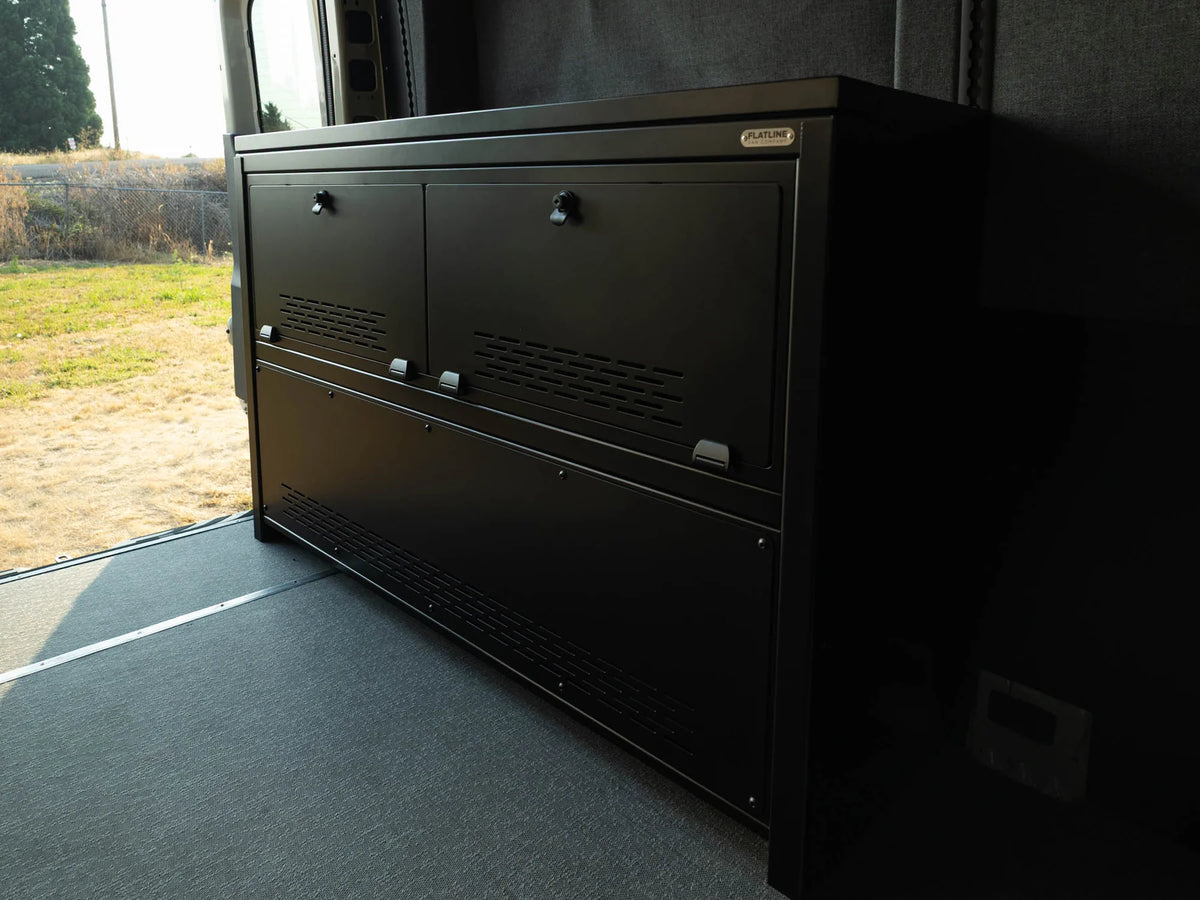

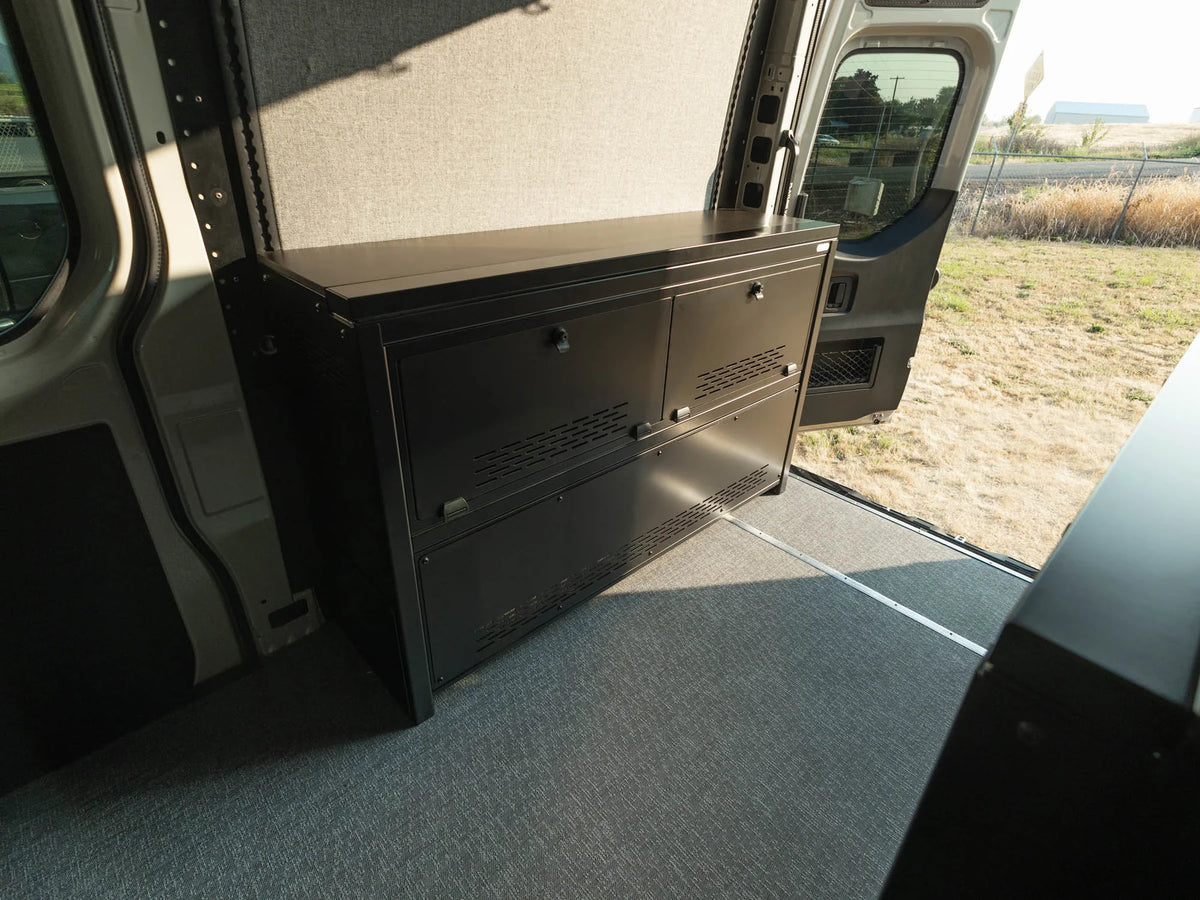

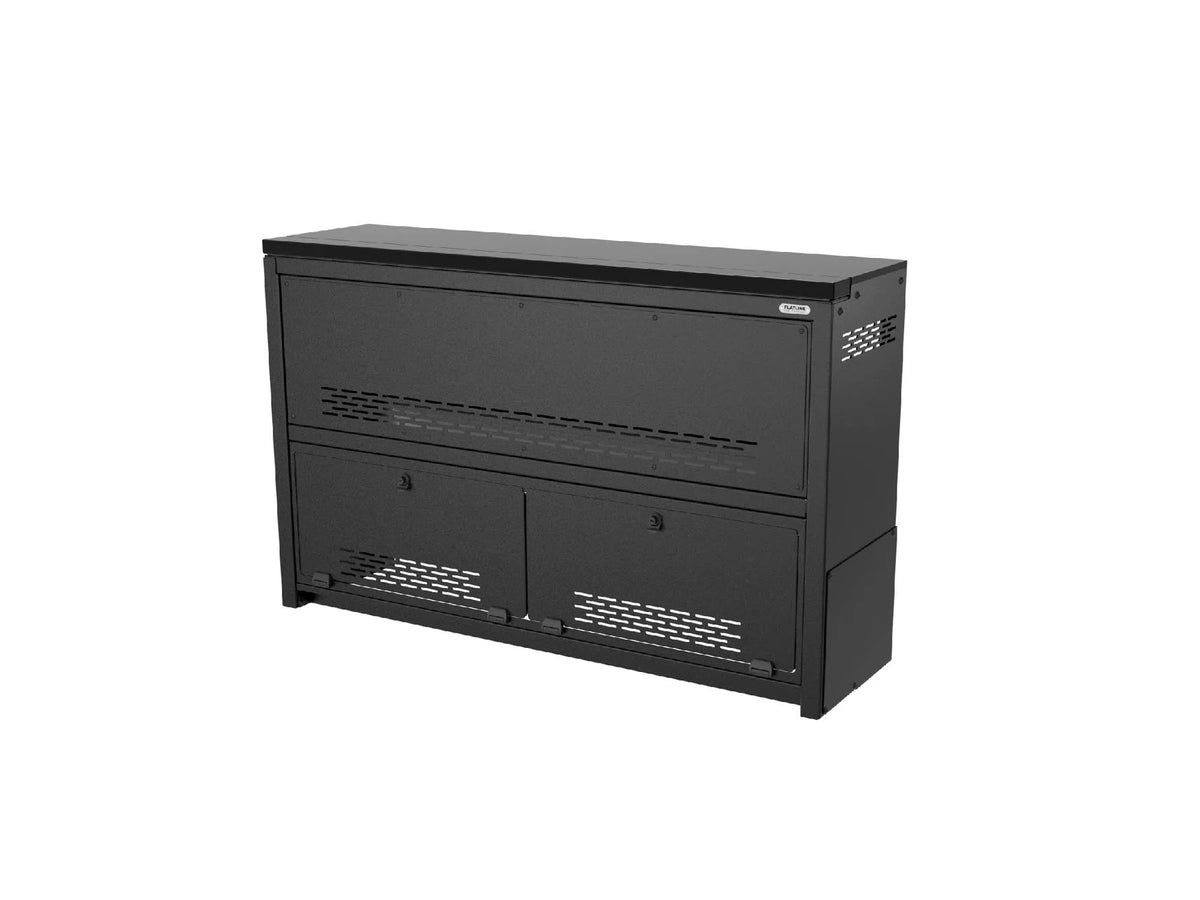

The House Systems Cabinet gives your water and power systems a clean, dedicated home inside your Sprinter or Transit build. The cabinet is divided into two sections. One section accepts an optional cover panel, making it a clean, spacious enclosure for your electrical and water systems. The other section features two lockable doors for secured storage, ideal for tools, gear, or anything you want out of reach but close at hand.

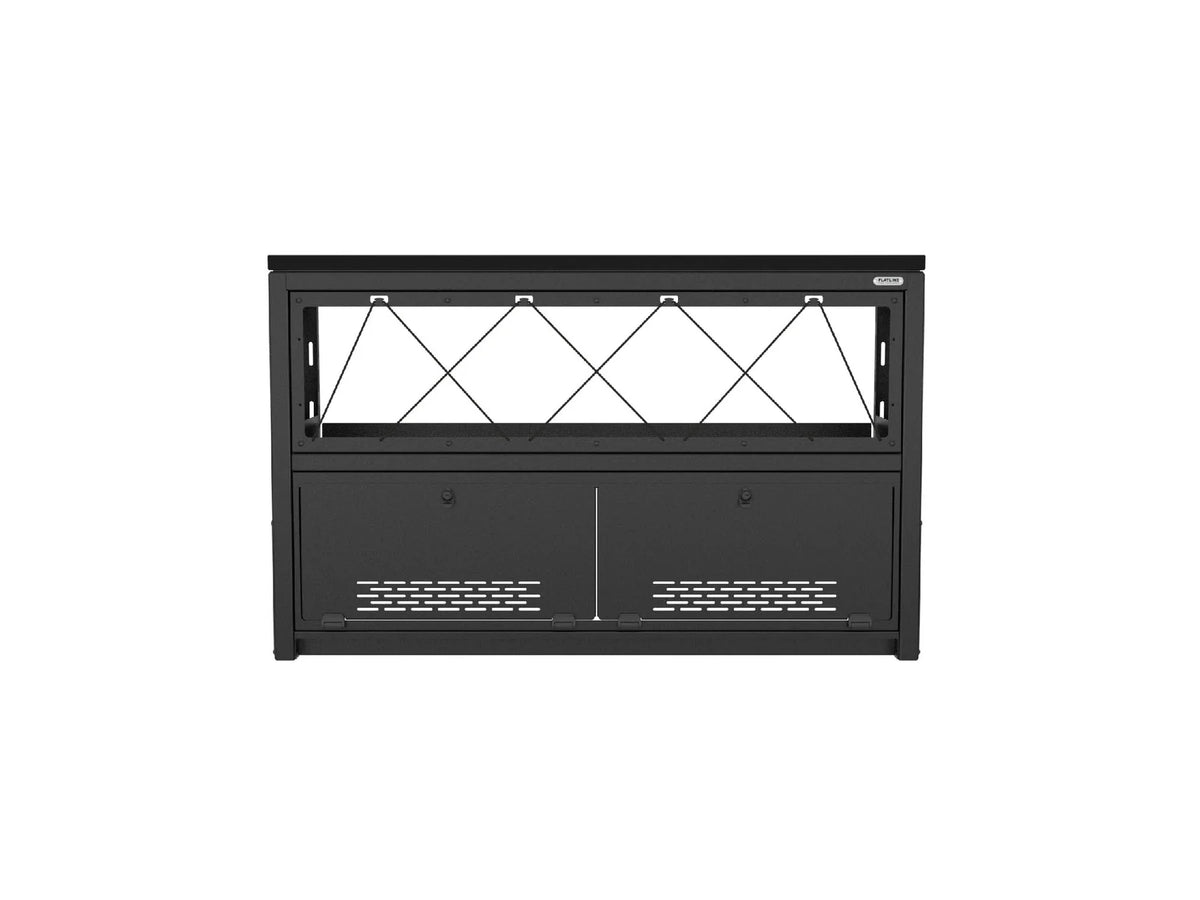

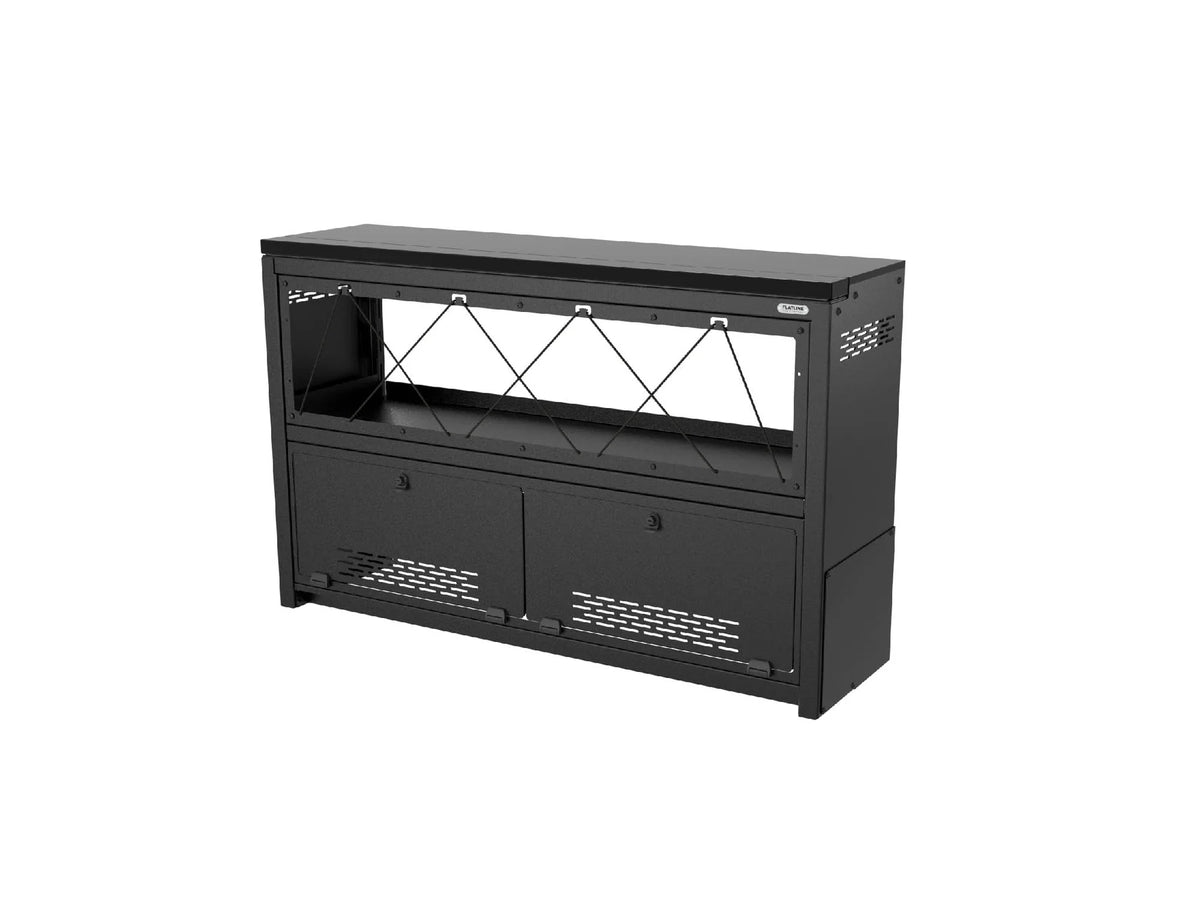

Both segments are interchangeable, so you can position the doors on top or the open segment on top depending on what works best for your setup. Skip the cover panel and run the included bungee keeper instead of using that segment as easy-access open storage.

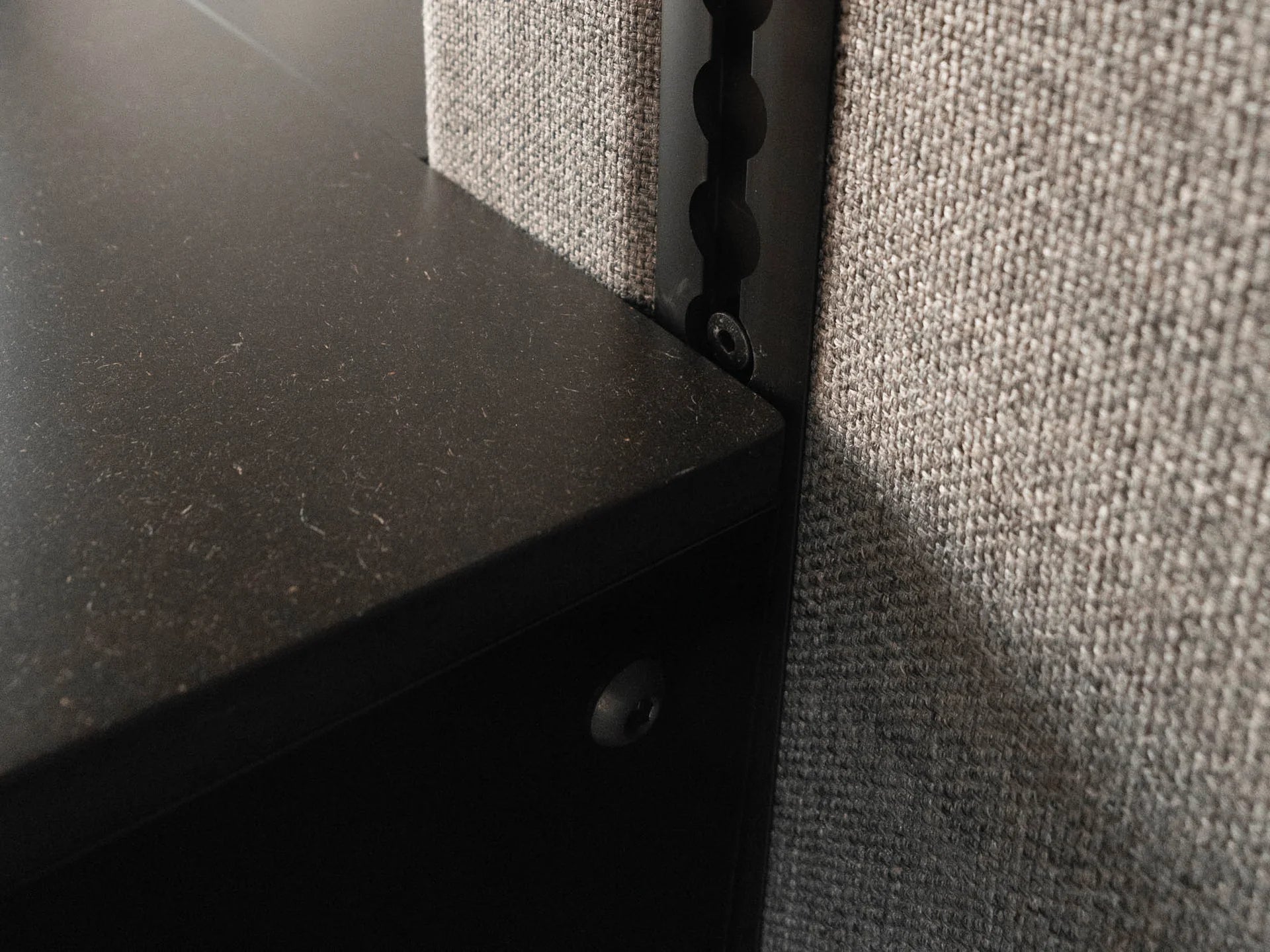

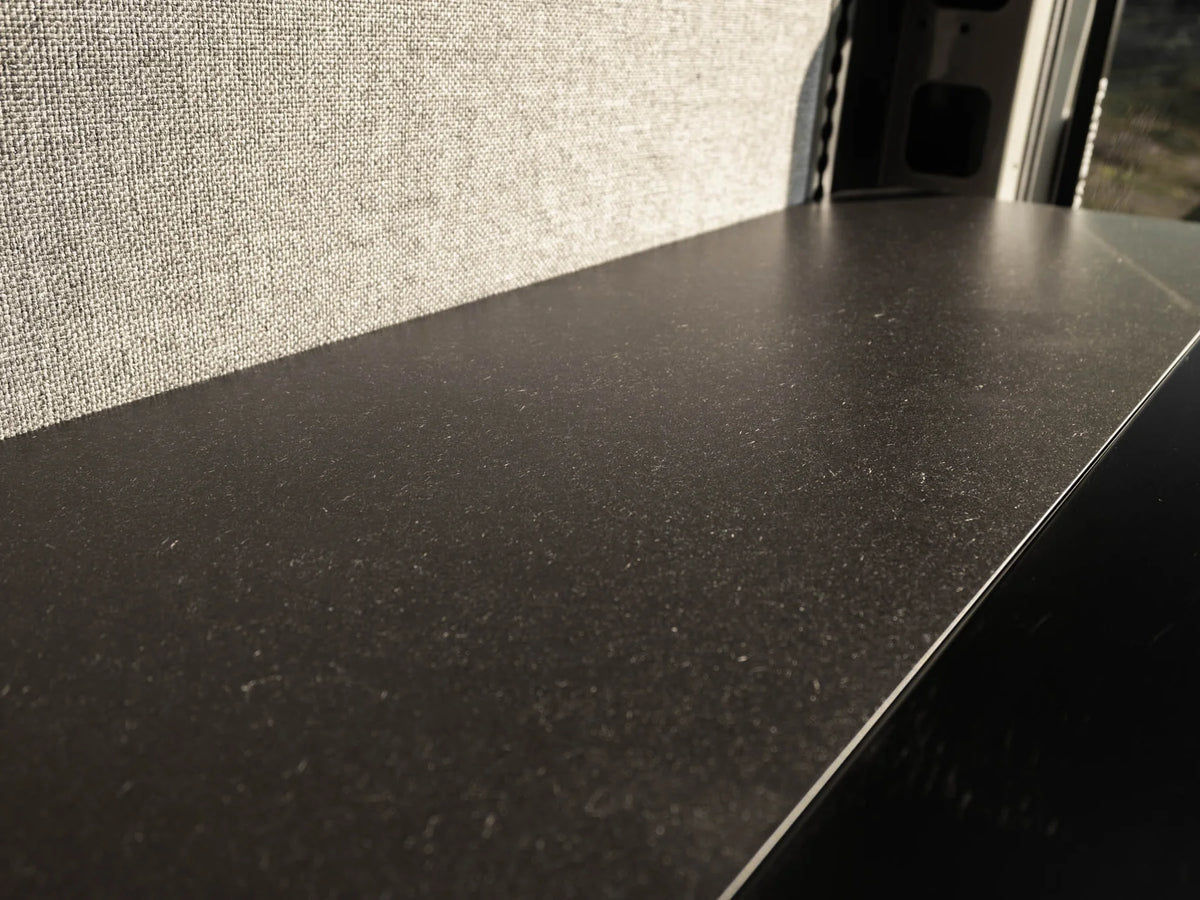

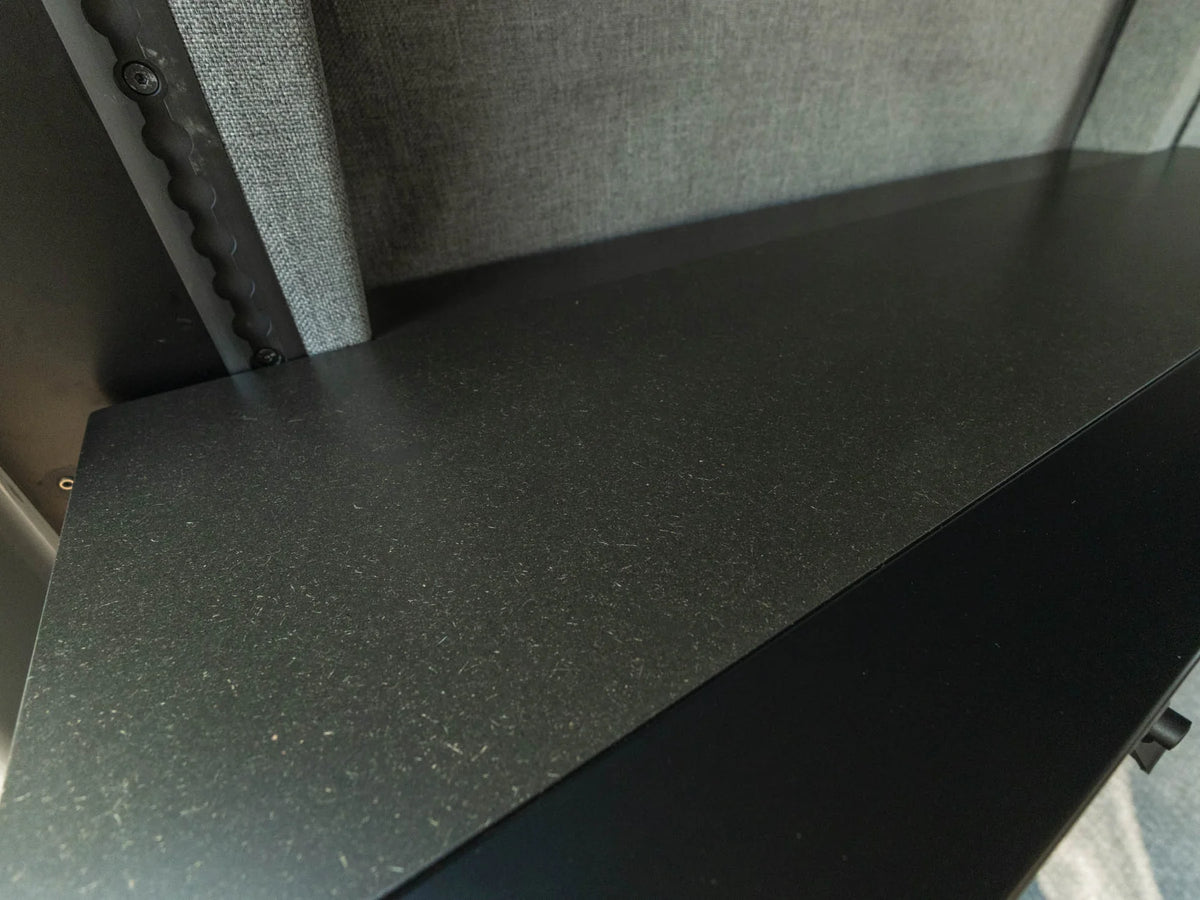

The countertop is made from a compact-grade laminate, and is a durable, water-resistant work surface that stands up to cooking prep, or could be used as a work surface. At 60 inches wide by 16 inches deep, it adds a substantial countertop to your build without claiming additional floor space. Built from aluminum with stainless steel hardware, the cabinet is solid and built to last.

These cabinets are also the foundation for our Modular Bed Systems. If you’re looking for an integrated solution for sleeping, check out the Modular Cabinet Bed System for Sprinter & Transit.
  • Compatible with Sprinter & Transit vans
  • The cabinet can house a full power and water system. We recommend housing one system per side for weight balancing.
  • Expandable into a full Cabinet & Bed System
  • 17 cubic feet total interior volume (usable capacity varies once installed over or straddling a wheel well)
  • Upper and lower segments spanning the full cabinet length

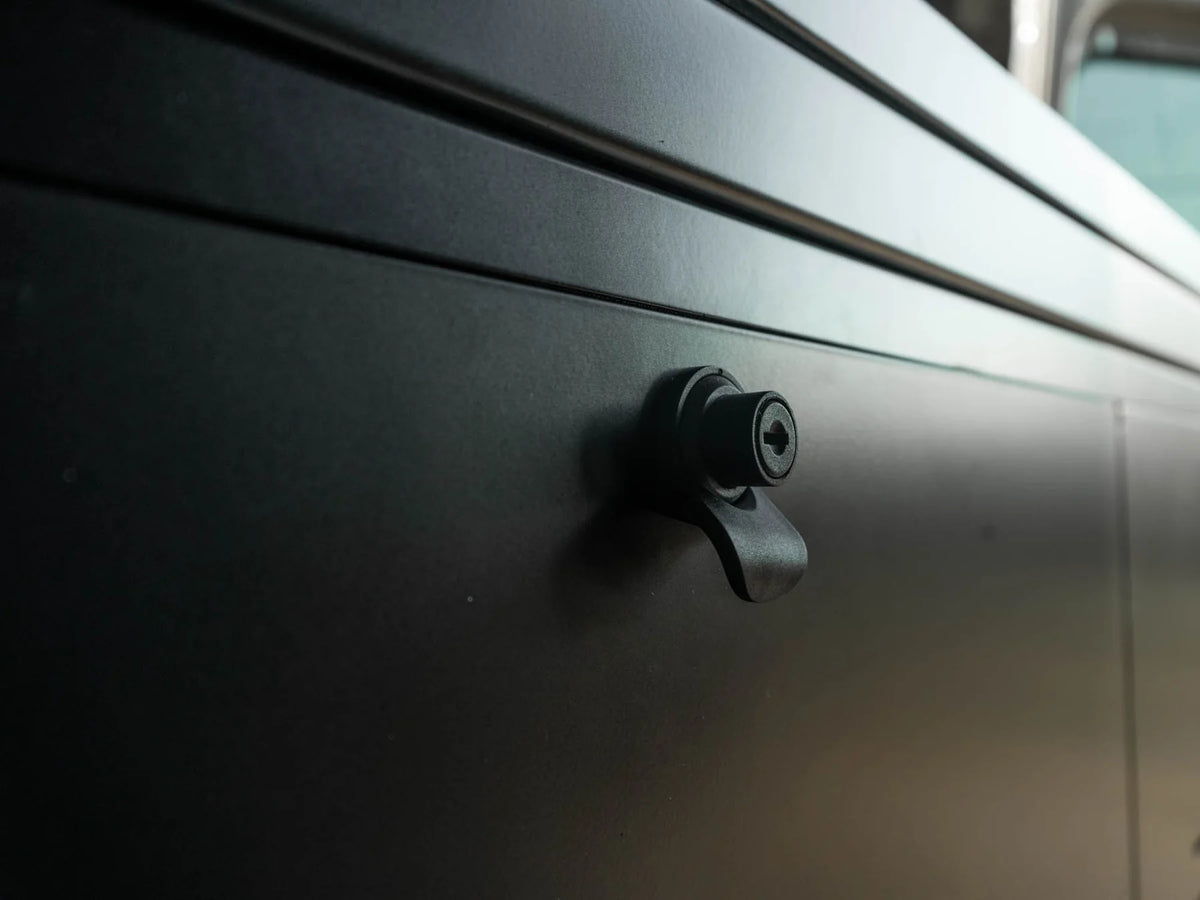

  • One segment with two lockable doors (key included)
  • One segment with an optional cover panel or bungee keeper
  • Aluminum construction with compact-grade laminate countertop

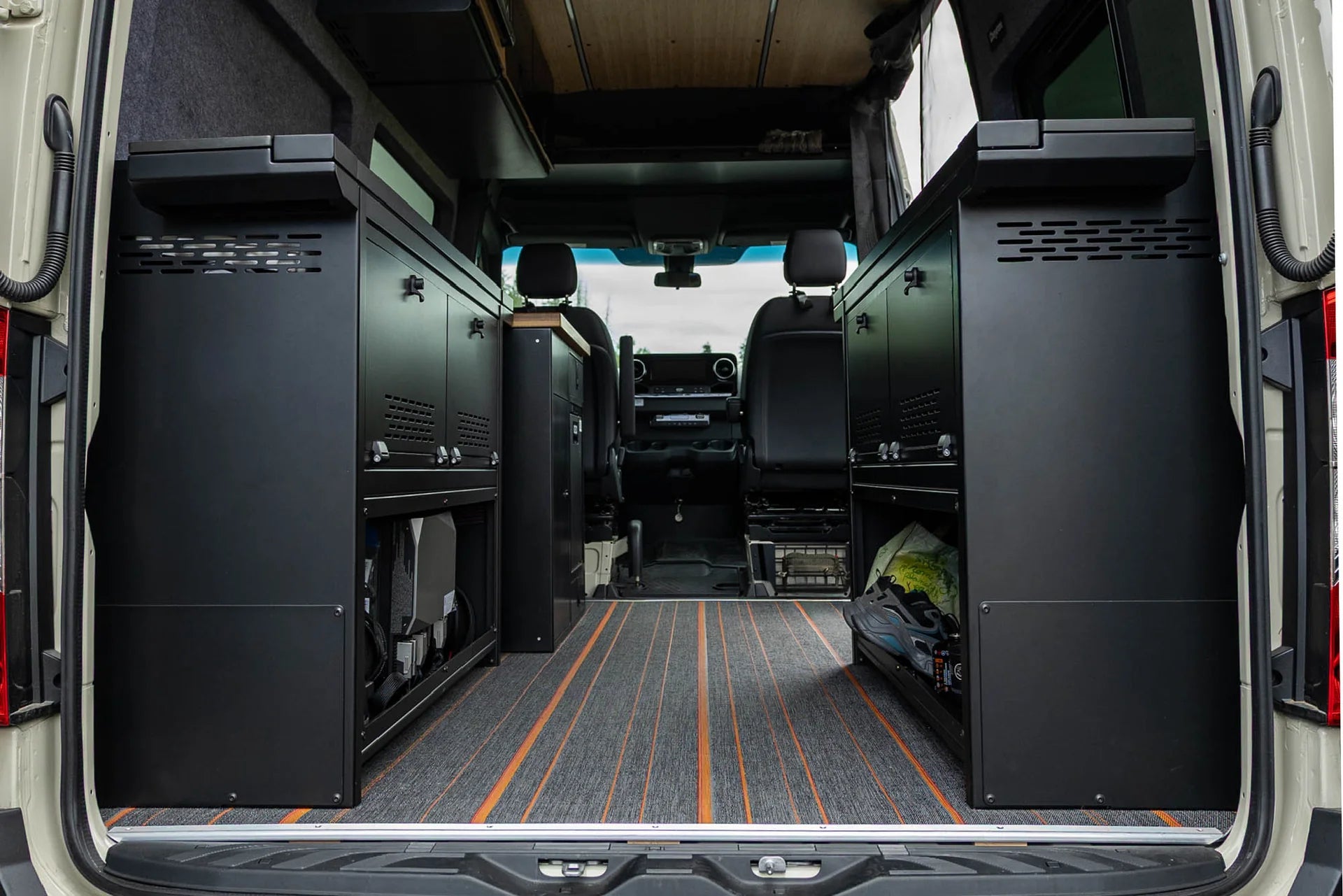

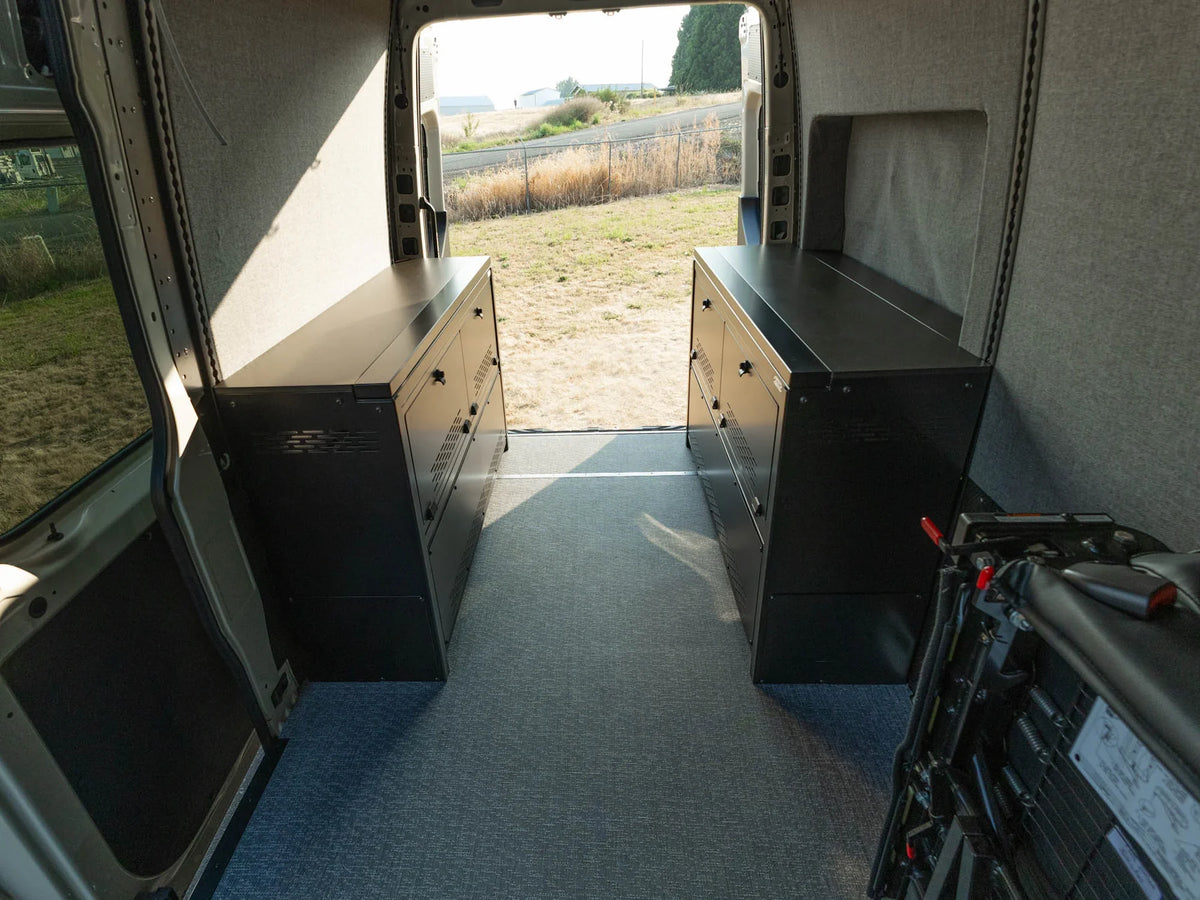

  • Use standalone or pair two for storage on both sides of the van
  • EcoFlow compatible
  • Compatible with NW Conversions wheel-well water tanks for Sprinter and Transit

    20-gallon Sprinter tanks: SP-L-20, SP-R-20, SP-C-20
    24-gallon Transit tanks: TR-L-24, TR-R-24, TR-C-24
  • 2007+ Sprinter 1500/2500/3500/3500XD | 144"/170"/170" EXT | Low/High Roof
  • 2015+ Transit 150/250/350 | 136"/148"/148" EXT | Low/Mid/High Roof
  • Ram Promaster: Direct compatibility depends on floor height. Installation may require minor trimming of the aluminum cabinet wheel well cover or a custom trim piece to bridge the gap if the wheel well cover panel is removed.

Travel Van House Systems Cabinet Installation Guide

POWER AND WATER, READY TO GO

Built to work with your systems, not around them. Each cabinet fits Sprinter and Transit wheel-well water tanks from NW Conversions and is deep enough to house a full electrical system, so a single cabinet handles a dedicated power or water setup cleanly. Run two and you've got a complete, organized system for both, or pop off a front panel and use that space for open storage, with an included bungee cord to keep everything in place.

CONFIGURABLE STORAGE

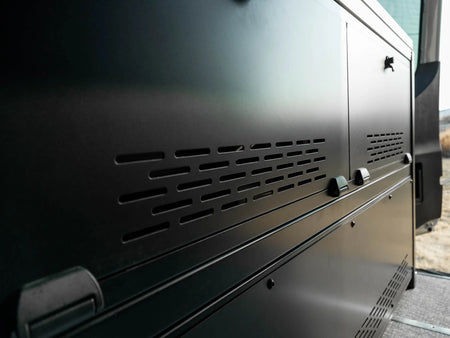

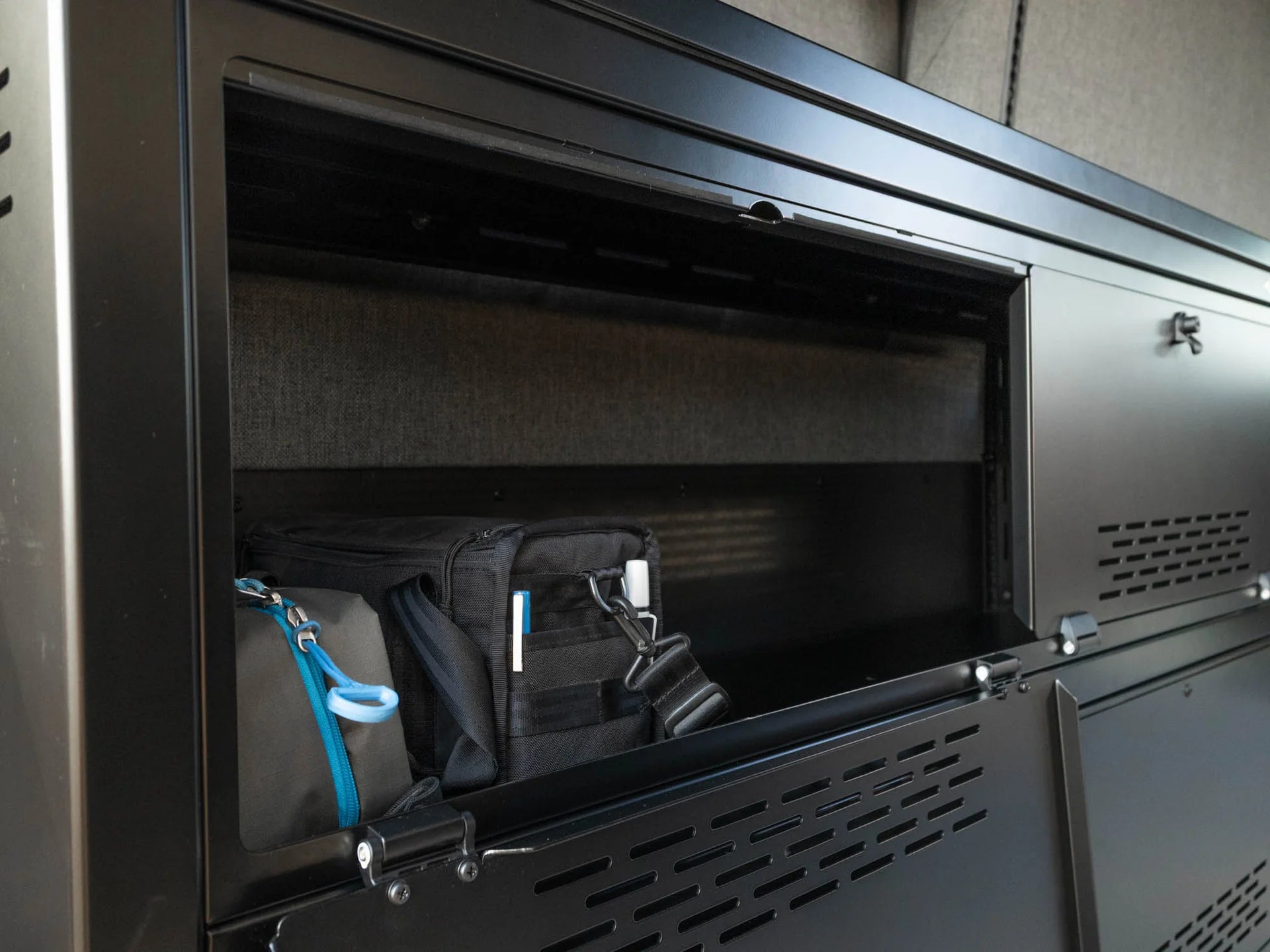

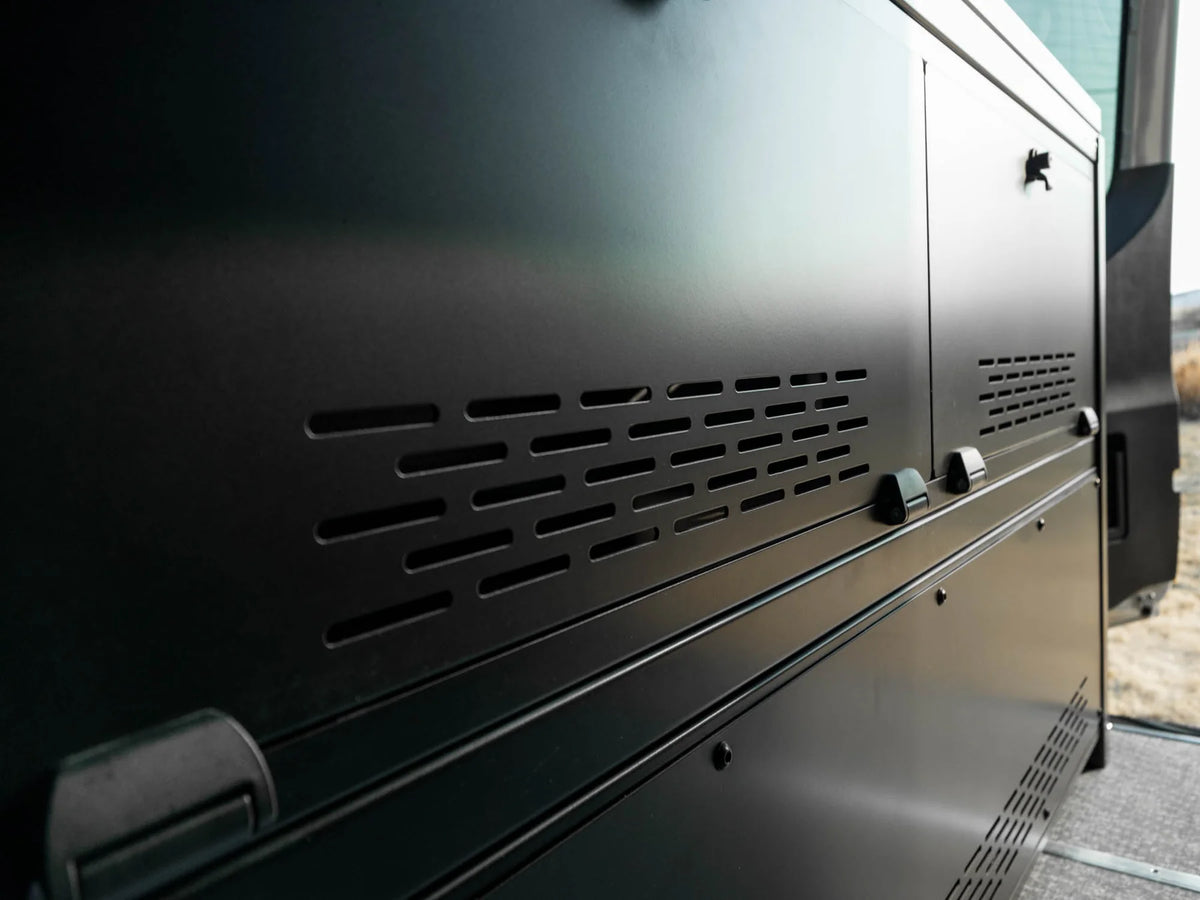

The cabinet has two interchangeable segments. One houses two lockable doors for secured storage, the other accepts a cover panel or can be run as open storage with the included bungee keeper for easy-grab access. Swap the positions to put the doors on top or bottom, whatever works best for your build.

SOLID VAN BUILD CONSTRUCTION

Constructed from aluminum with stainless steel hardware and a 16mm compact grade laminate surface, the cabinet is made to handle daily use and the demands of life on the road. It's rigid, solid to the touch, and built to the same standard you'd expect from a permanent fixture in a professional van build.
