Enjoy convenient access to tempered water with the Aquor RV City Water Inlet and Mixing Valve Bundle. Quick connect Hydrant without a check valve. Recommended for RVs, campers, and adventure vehicles. Install as an inlet or an outlet, vertically, horizontally, even upside down! Drains upon disconnection. Also includes a single dial valve that controls temperature. Perfect for an outdoor shower setup.

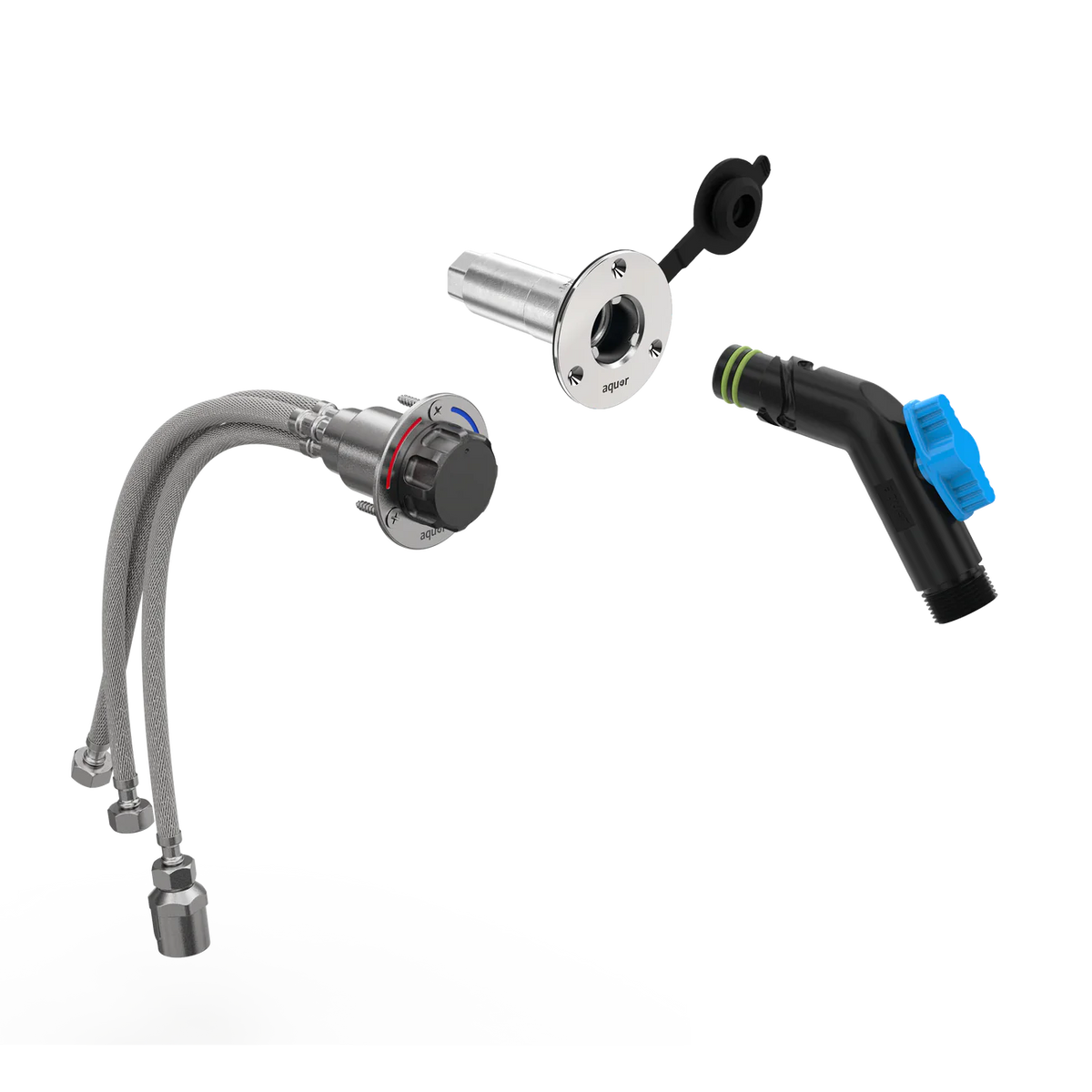

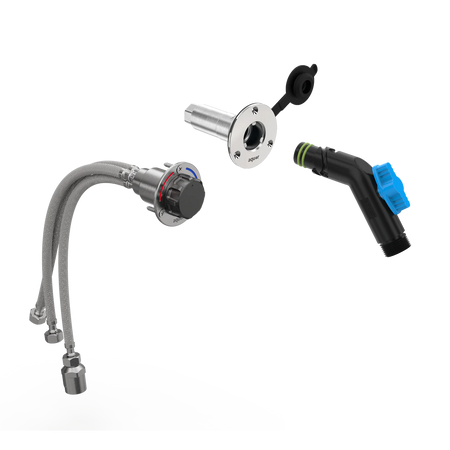

• Hydrant w/ Plug Cover
• Removable Faucet Hose Connector (CN-F-BLK)
• 1/2" NPT Straight Inlet
• Valve Body
• x6 #10 Flathead 1 - 1/2" Mounting Screws
• x3 M10*1 (m) x G1/2" (f) In/Out Hoses
• G1/2" (m) Inlet

Overview

• Install Required: Yes
• Install Level: Depends on install location; plumbing knowledge and tools required
• Average Install Time: Varies
• Warranty: Limited lifetime all Aquor Hydrants and valves, 5-year limited warranty all other products and parts

Product Specs

• Hydrant Length: 2" hydrant (3 - 5/8" total length)
• Hydrant Inlet: 1/2" NPT (f)
• Hydrant Outlet: 3/4" GHT (m)
• Mixing Valve Inlet: G1/2" (BSPP) (f)
• Mixing Valve Outlet: G1/2" (BSPP) (f)
• Inner Diameter: 3/4"
• Backflow Protection: None
• Hydrant Entry Hole: 1 - 1/2"
• Mixing Valve Entry Hole: 1 - 3/4"
• Operating Temperature: 33-140°F
• Operating Water Pressure: 25-125 PSI
• Flow Rate: 6.8 GPM @ 52 PSI
• Plumbing Compatibility: G1/2" (BSPP) (f)
• Hydrant/Valve Material: 316L stainless steel
• Connector Material: Acetal polymer
• O-Ring Material: Fluorocarbon rubber
• Cover Material: EPDM rubber
• Knob Material: Nylon
• Mixing Cartridge: CC-MX1

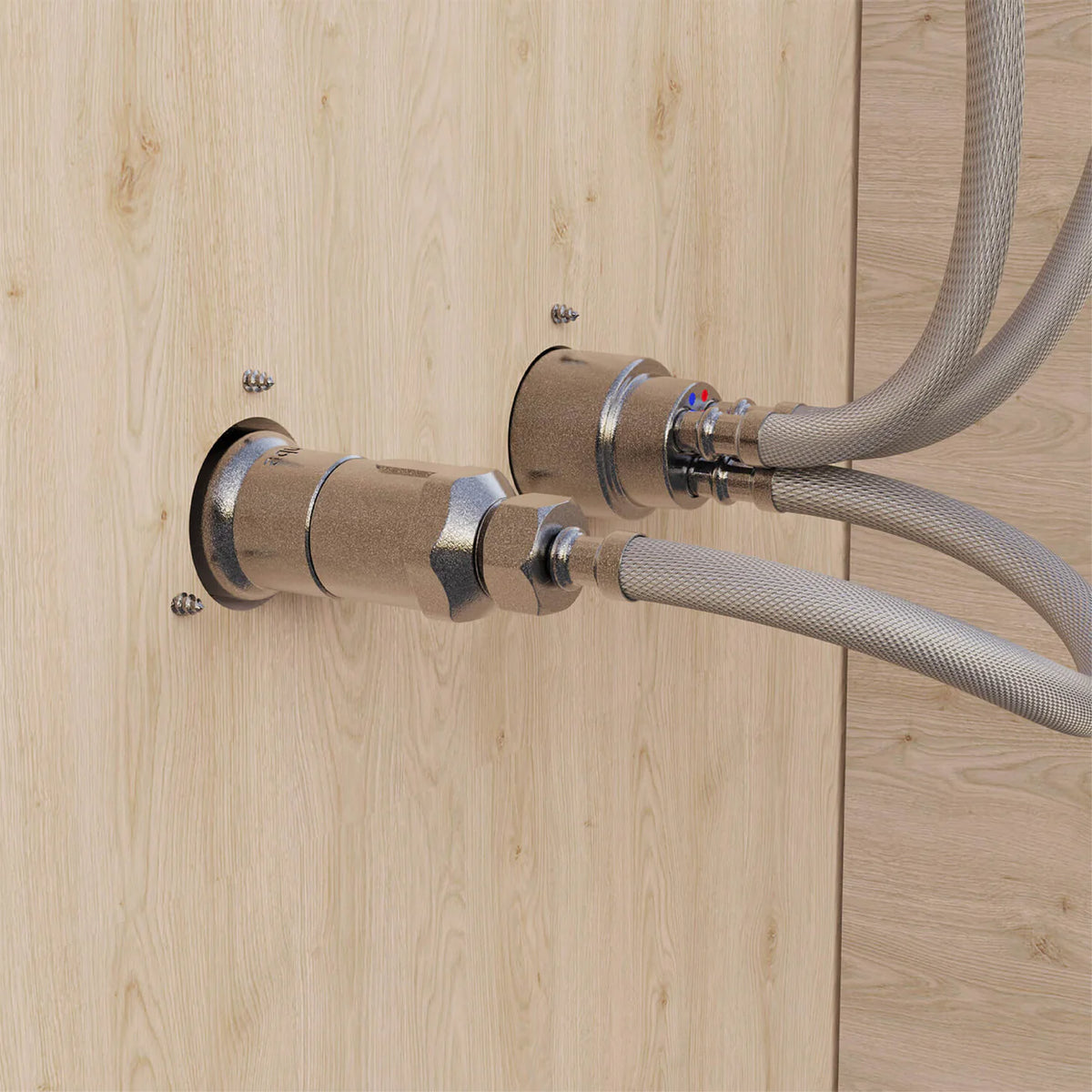

Mixing Valve Install Guide

Aquor seamlessly complements most setups. Whether you prefer to DIY or
opt for a professional install, integrating your Hydrant is easy.

• Recommended for RV/Marine applications
• Outgoing water fixture should be installed a minimum of 3 - 1/2" away from the center of the mixing valve
• Leave access to feed hoses when installing
• Intended for mild climates, will not prevent freezing
• Be sure to drain hydrant and plumbing before temperatures drop below freezing to prevent damage
• Marine-grade stainless steel and non-toxic materials

Access tempered water easily with the Aquor Mixing Valve for RV/Marine. This

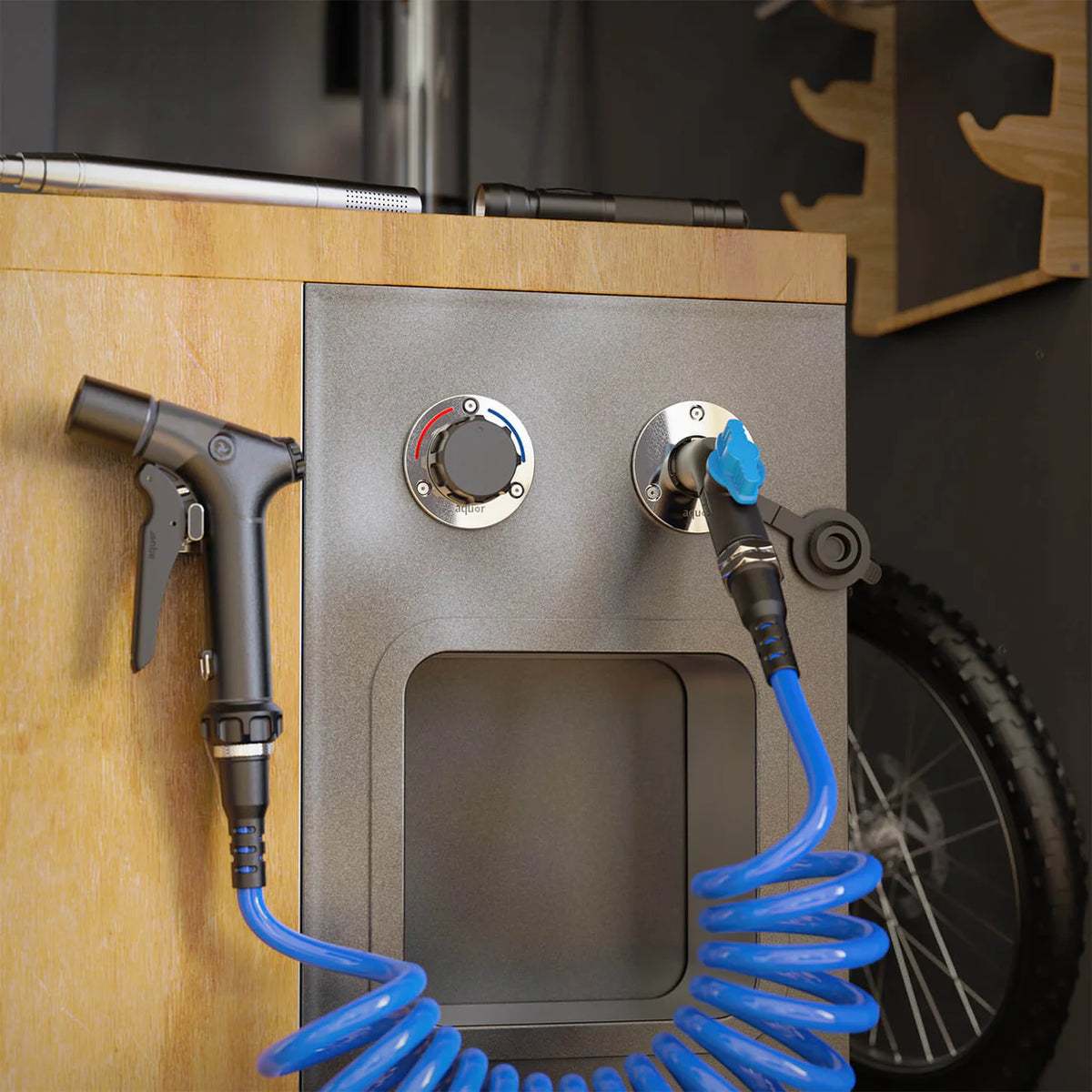

compact, ergonomic valve is perfect for RV showers, dog wash stations, and more. Designed for mild climates. Pair with an Aquor Hydrant for instant water with a simple push and twist.

• Ergonomic, User-Friendly Design
• Reliable Ceramic Mixing Cartridge
• Non-Toxic Materials
