Sprinter(2023-2024) 45 Gallon Replacement Fuel Tank

$1,549 USD

Shipping calculated at checkout.

In stock

Payment methods

Amazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay Visa

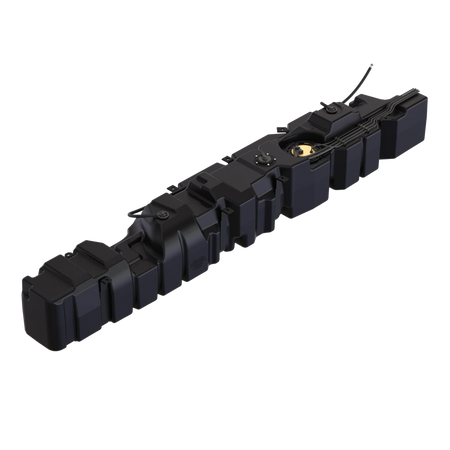

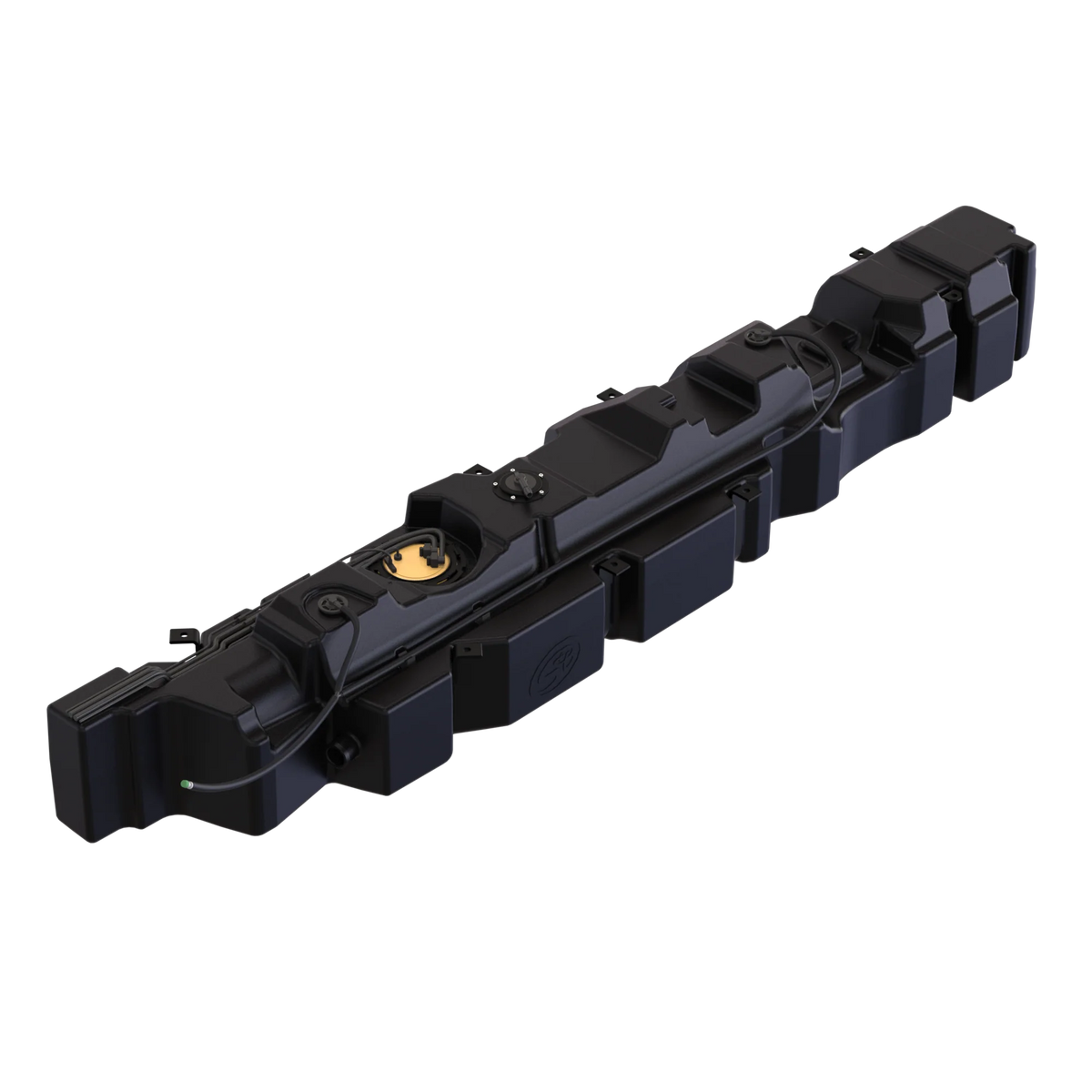

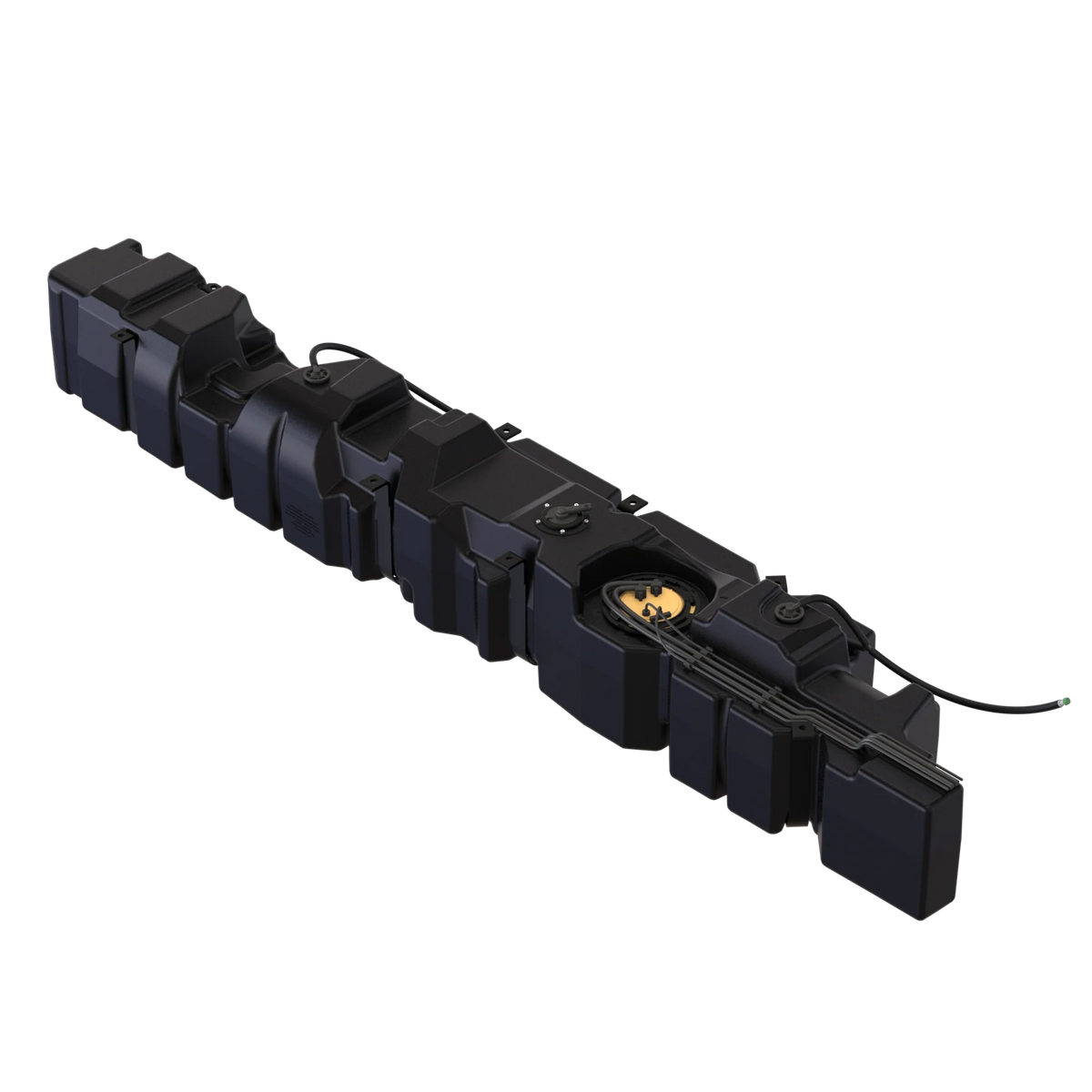

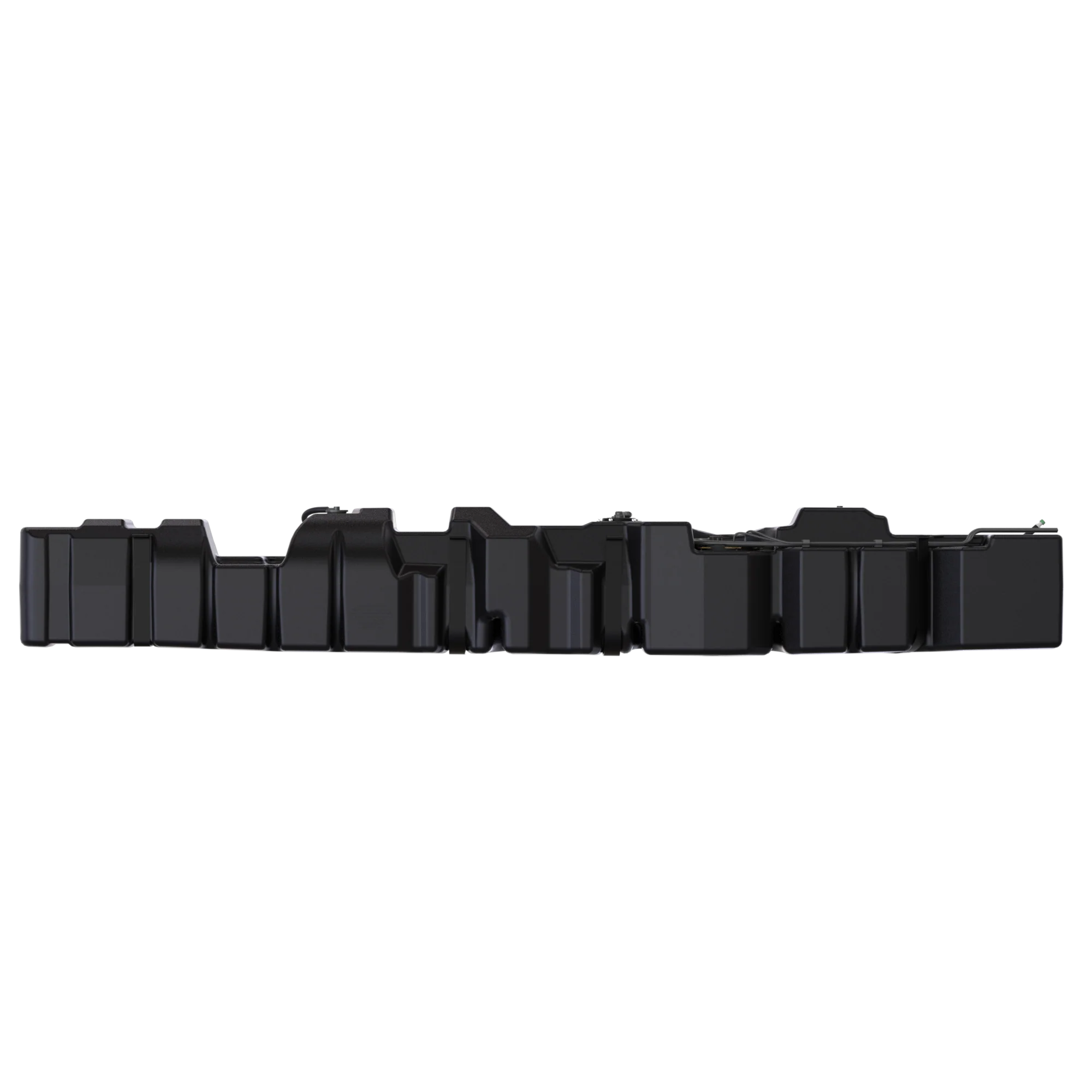

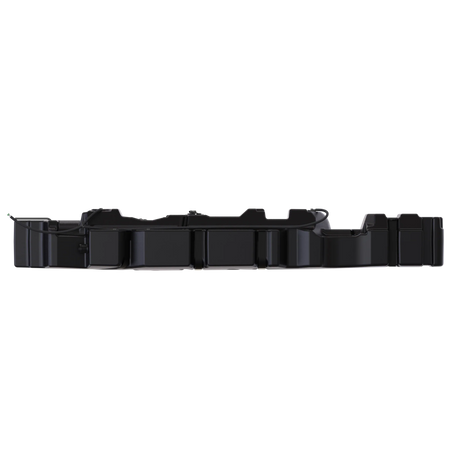

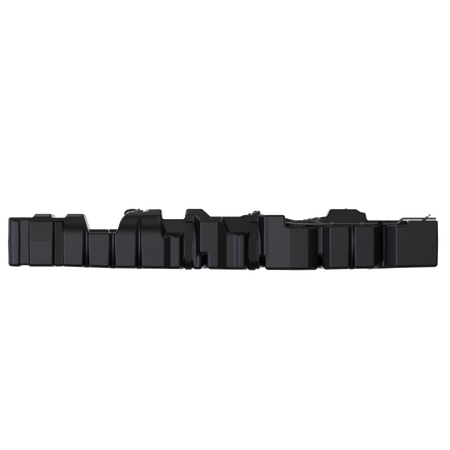

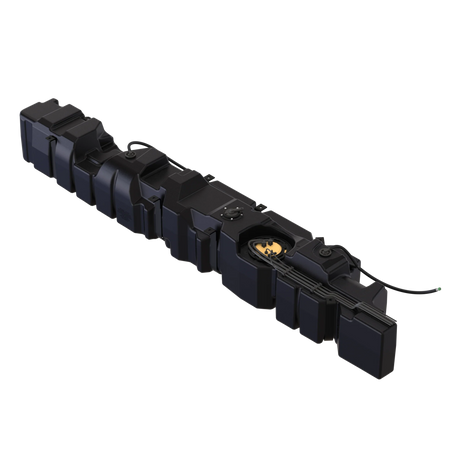

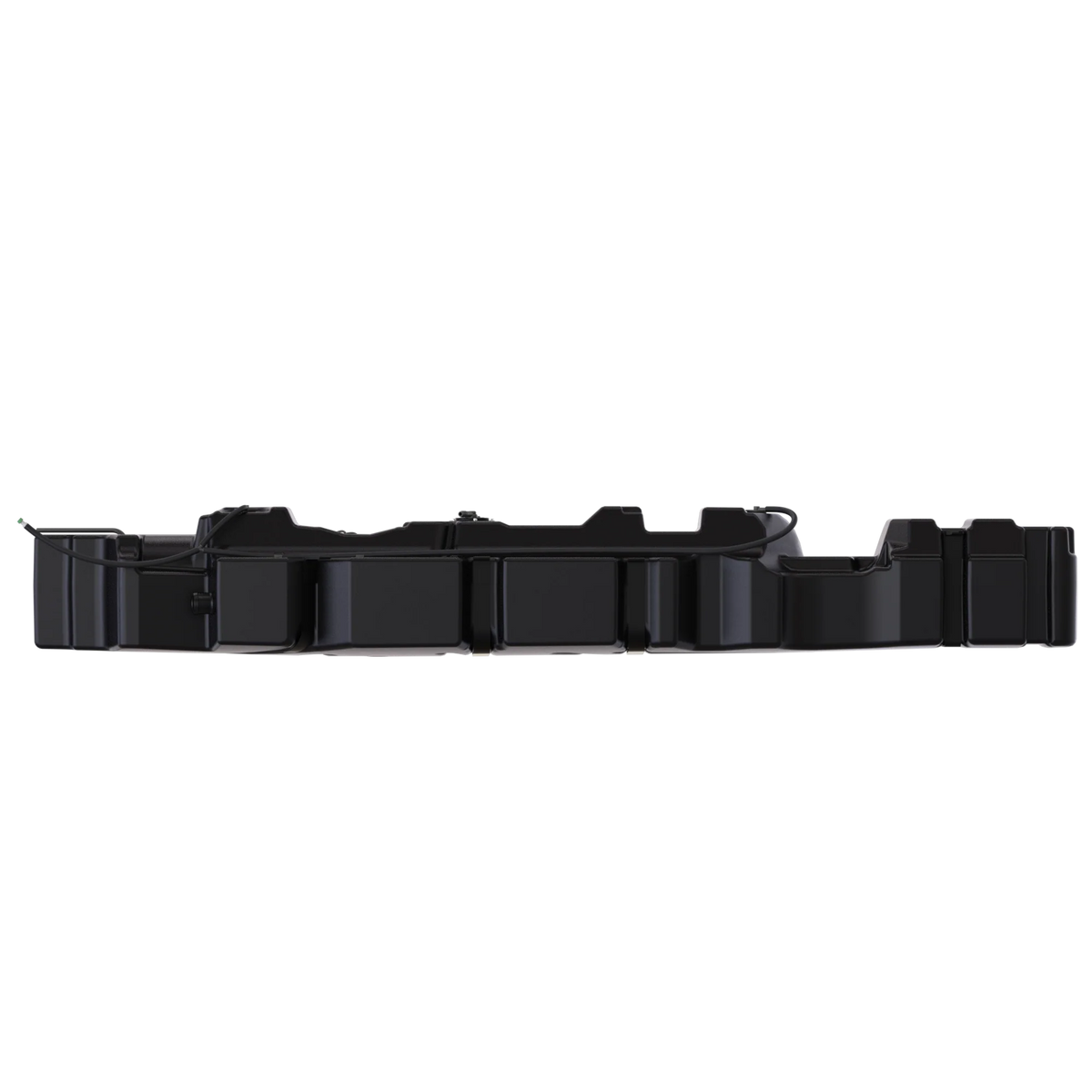

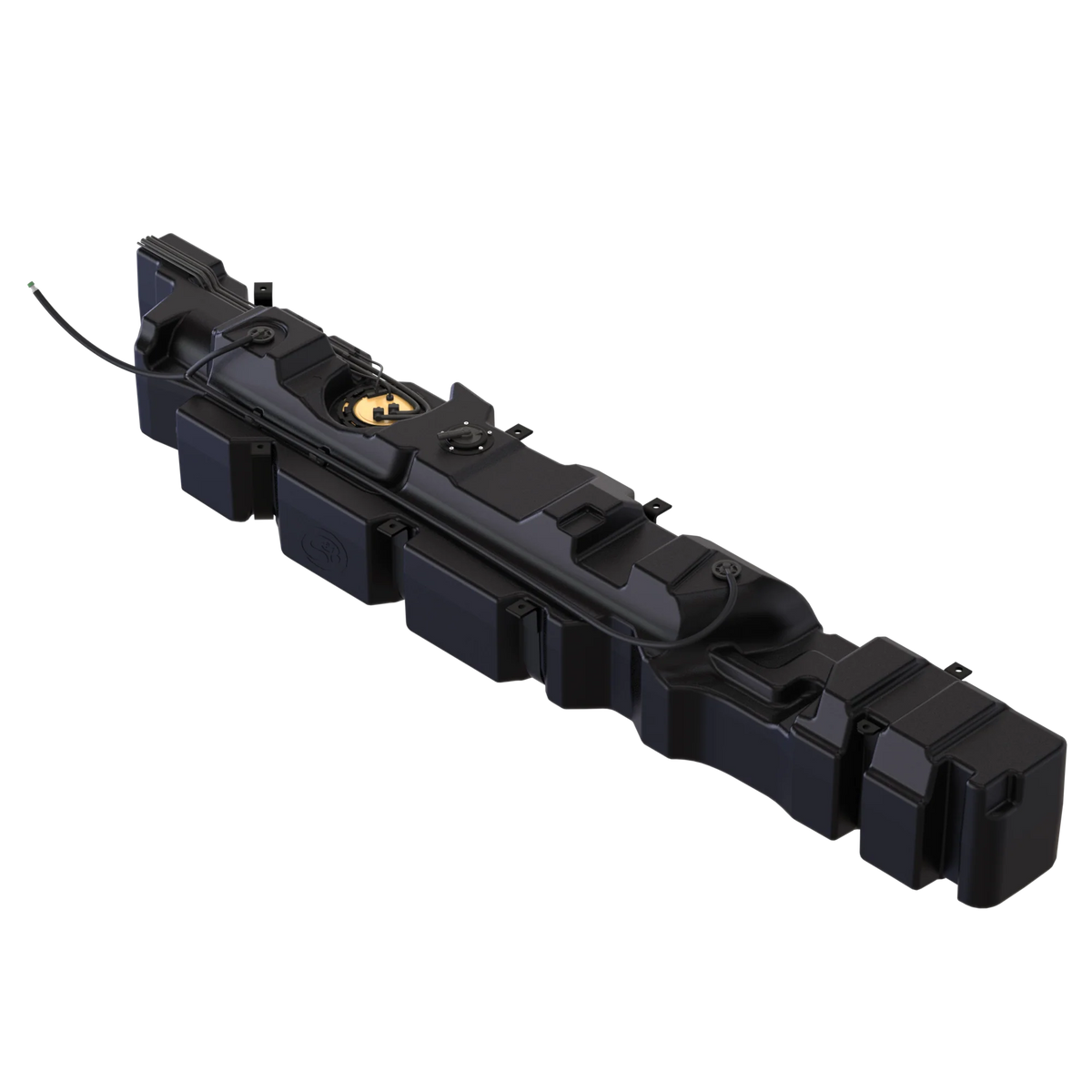

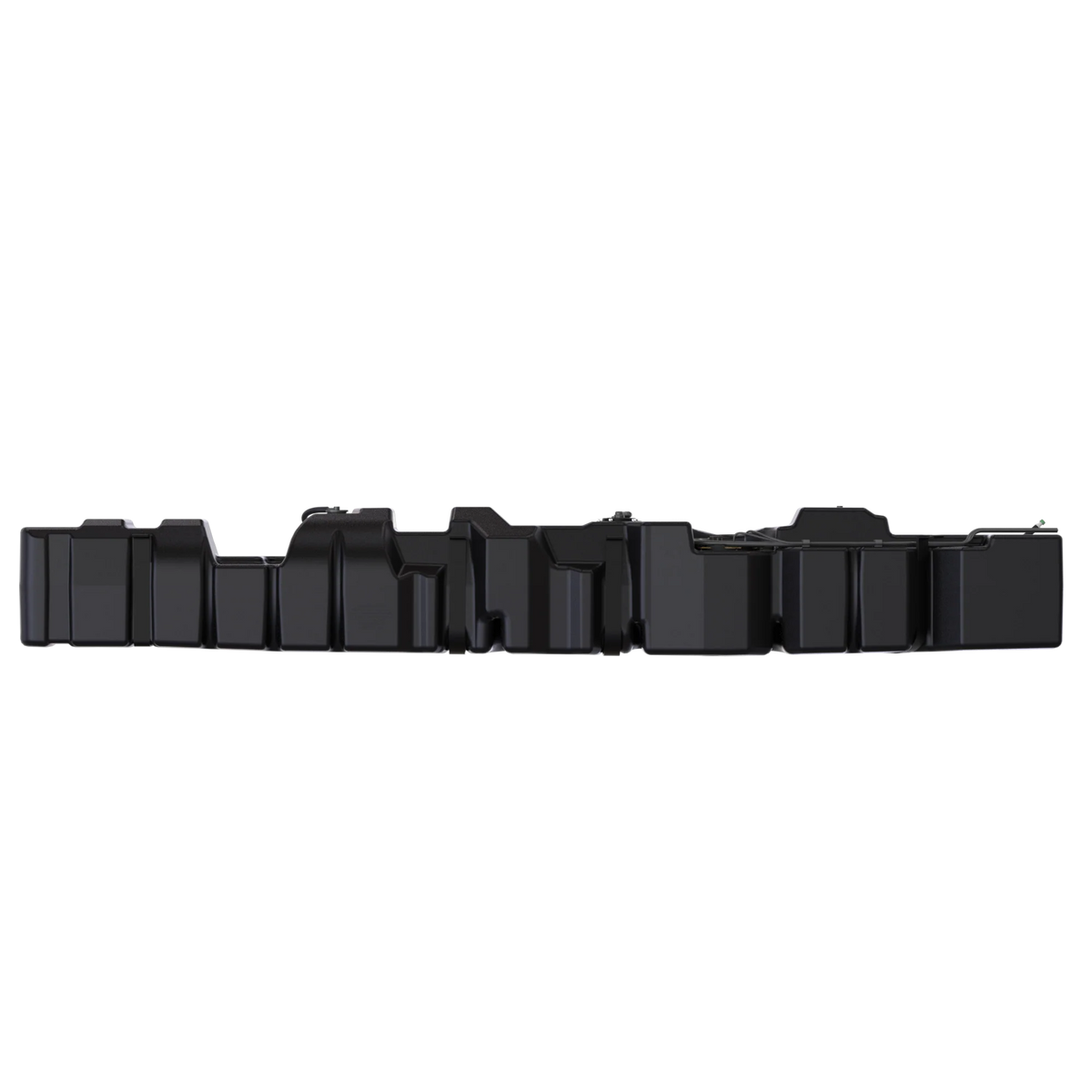

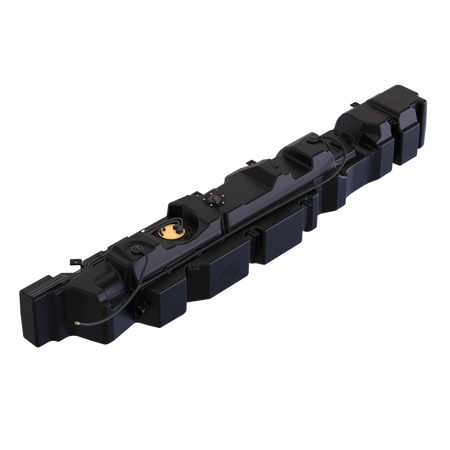

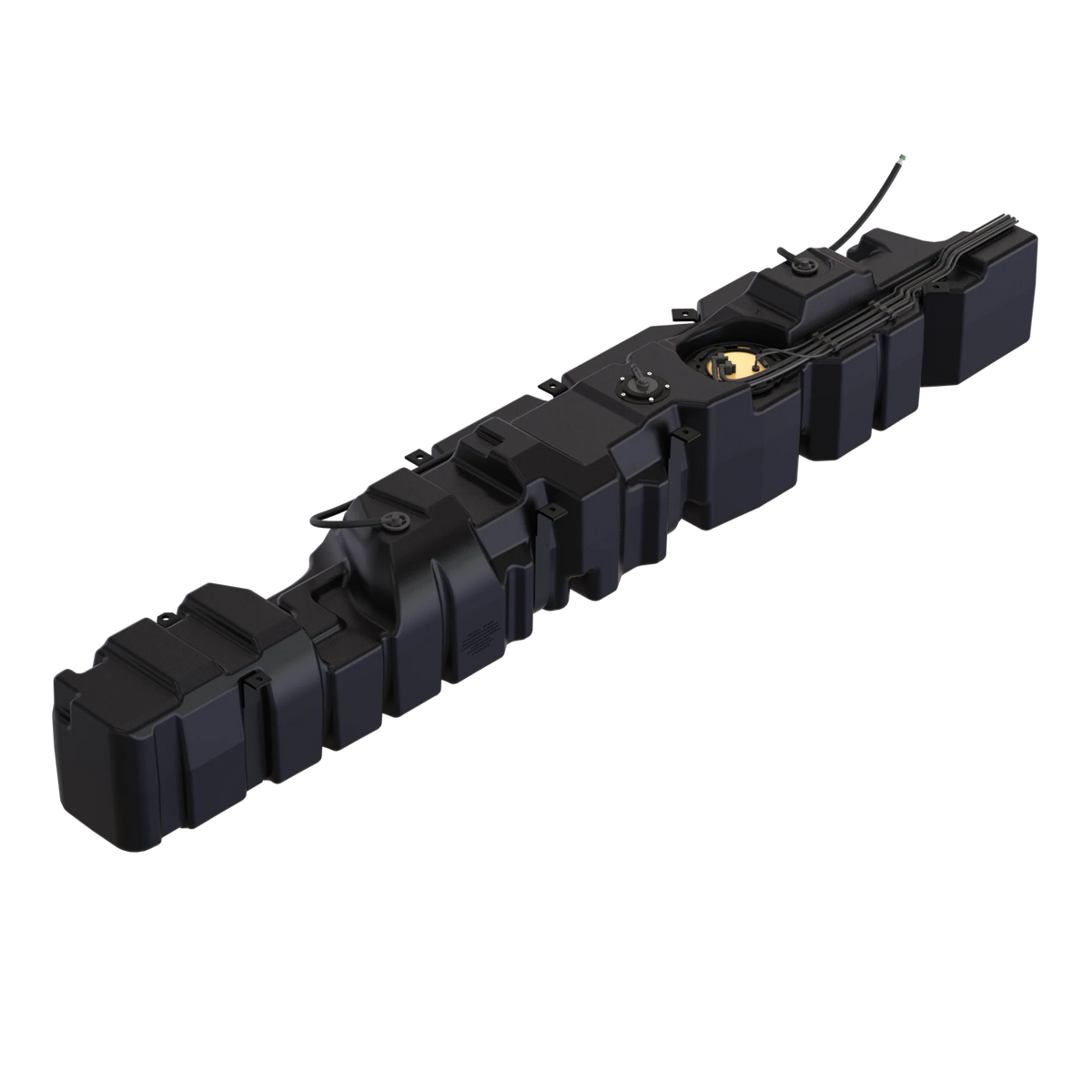

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with their 45 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.

Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by S&B lifetime warranty.

Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The gauge will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (45 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.

Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.

When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.

Product Overview

Feature

  • Dimensions: 98.28" X 15.41" X 14.17"
  • Drain: No
  • Ground clearance compare to oe tank: 1.5"
  • Oem capacity: 24 Gallons
  • Sending unit: OE
  • Straps included: Yes
  • Sump: No
  • S&B Capacity (Approximate): 45 Gallons
  • Tank type: Midship
  • Weight dry: 45lbs

Compatibility

  • 2023-2024
    Mercedes, Sprinter
    2.0L, Diesel
  • 2023-2024
    Storyteller, Classic Mode 4x4
    3.0L, Diesel
  • 2023-2024
    Storyteller, Stealth Mode 4x4
    3.0L, Diesel
  • 2023-2024
    Storyteller, Beast Mode 4x4
    3.0L, Diesel
  • 2025
    Winnebago, Ekko
    2.0L, Diesel

This tank will NOT fit:

144” Dually Vans

170” Crew Vans (1 row of seats)

With plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.

Storyteller XO (accommodation coming soon)
