All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

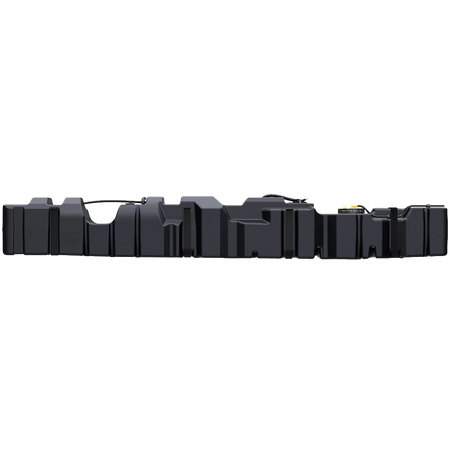

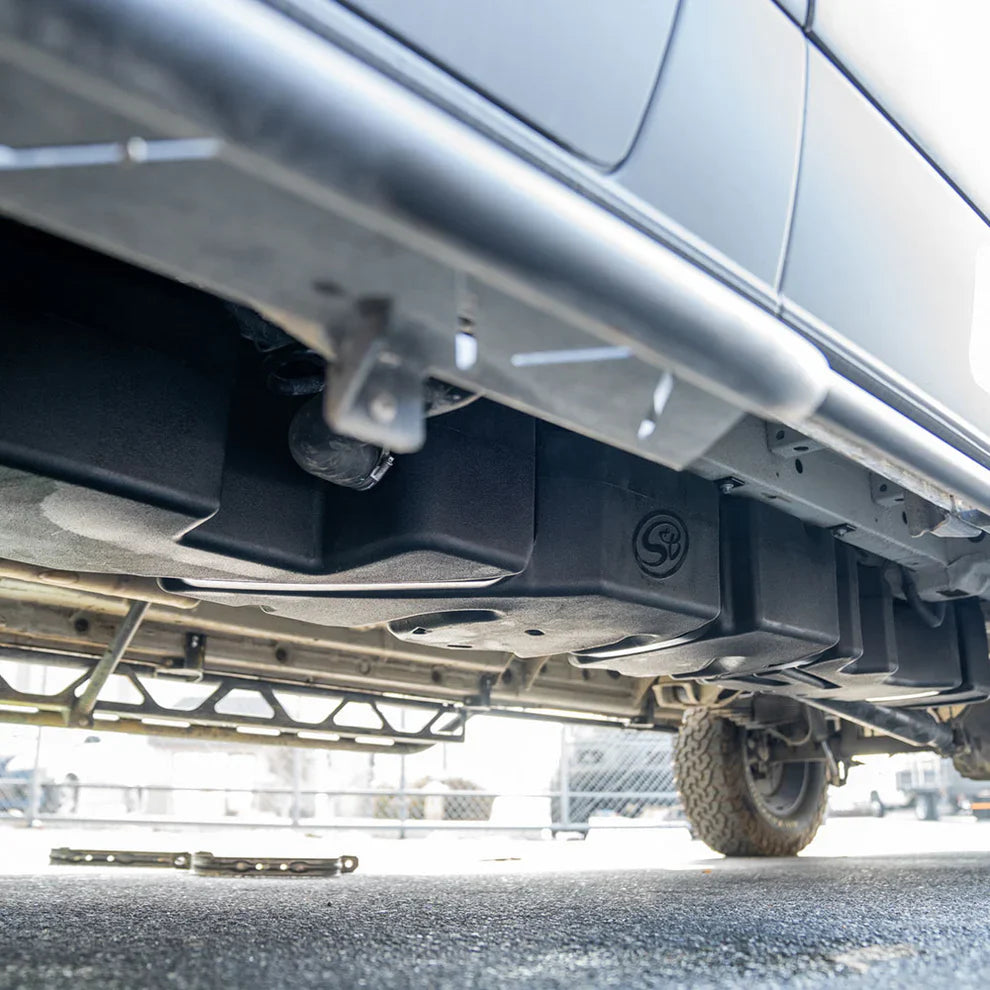

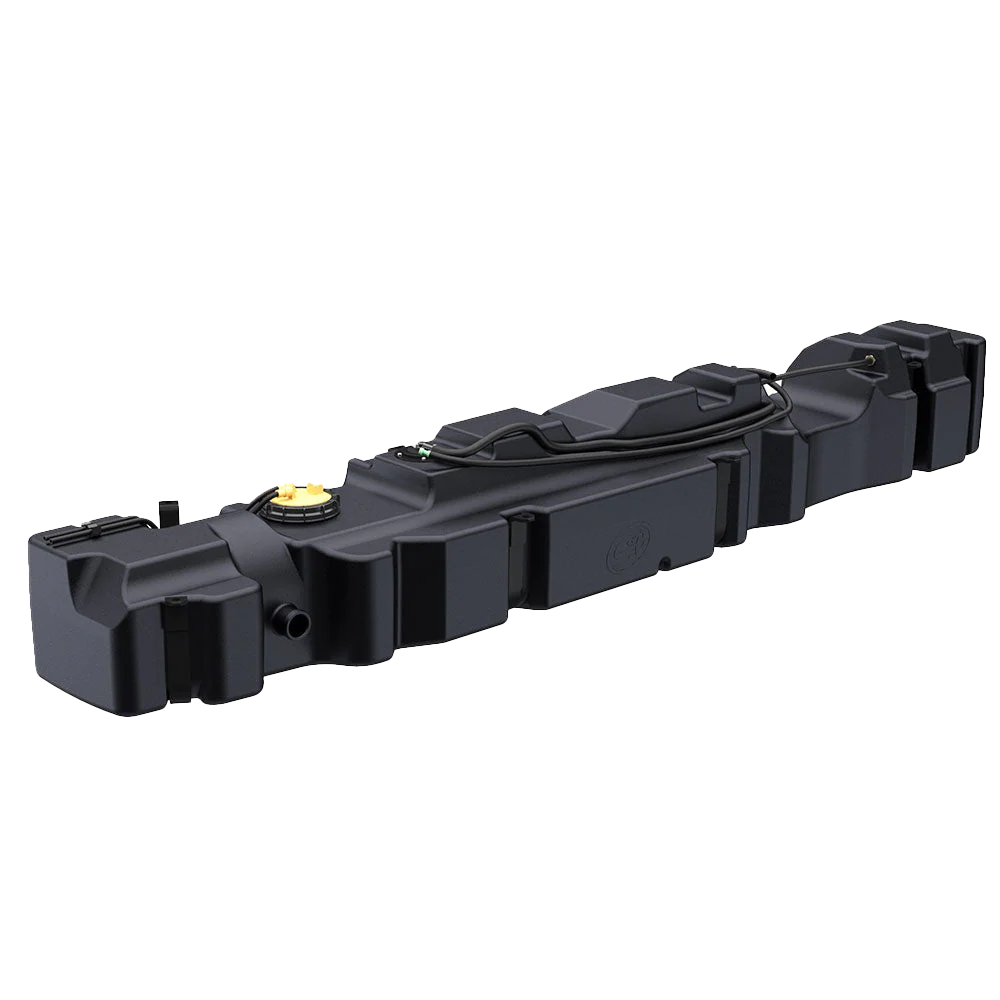

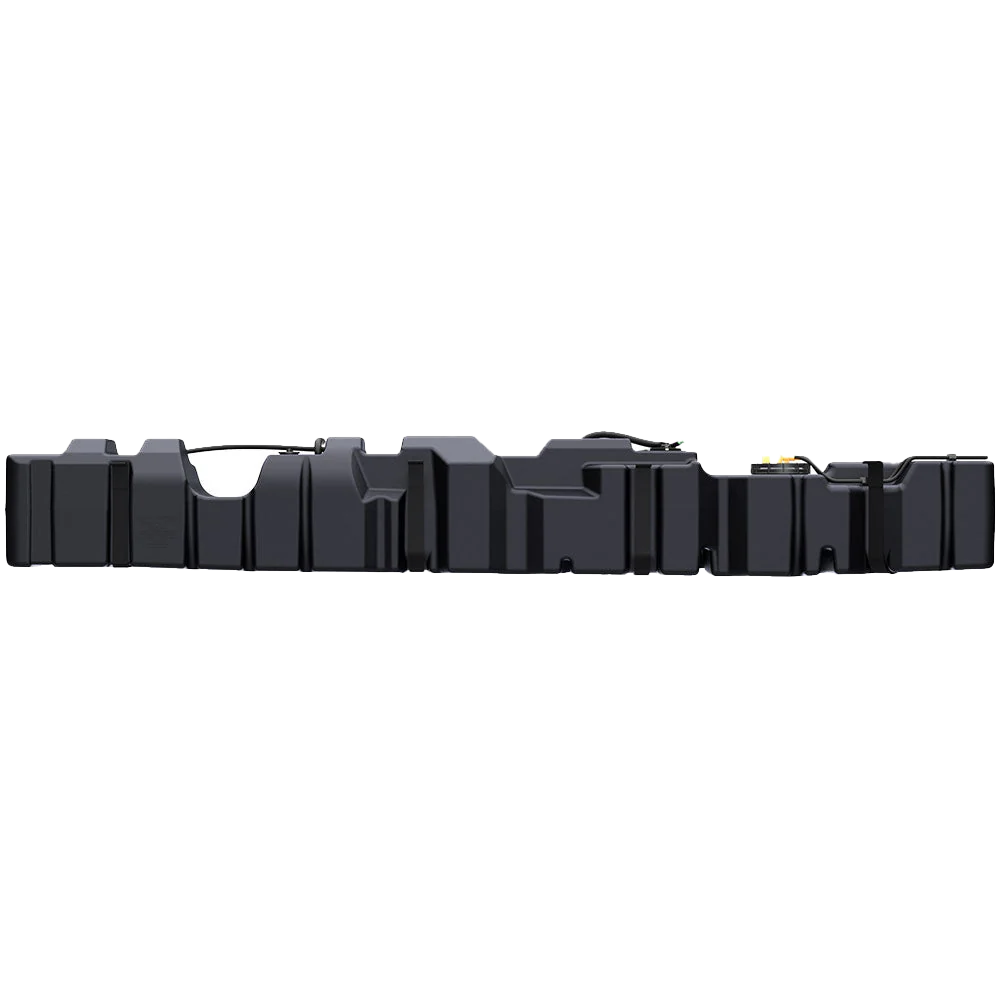

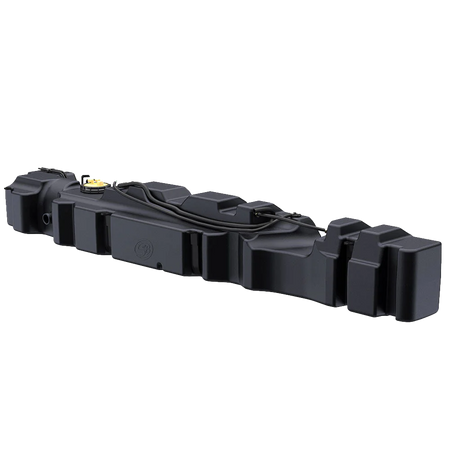

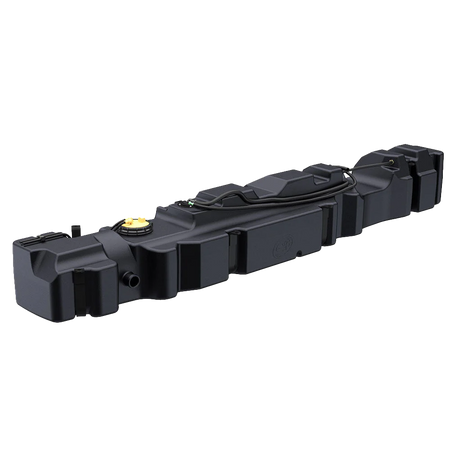

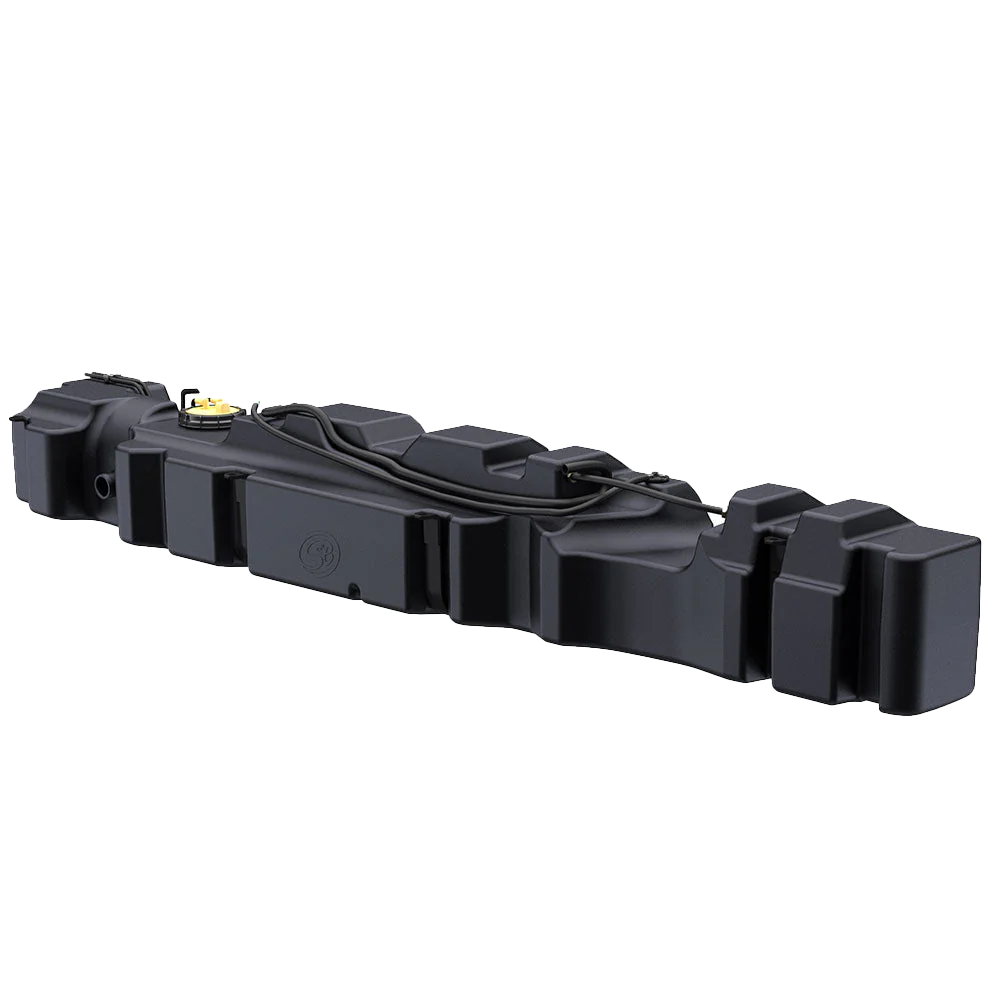

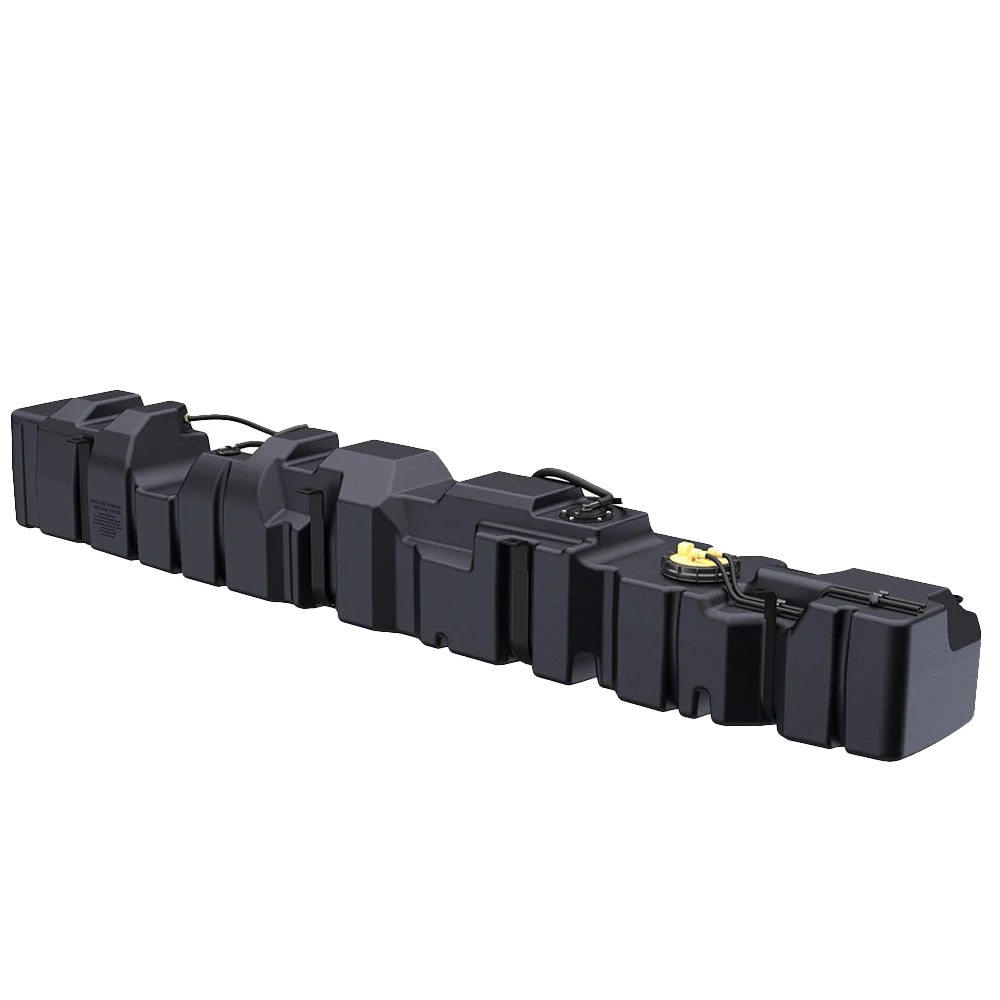

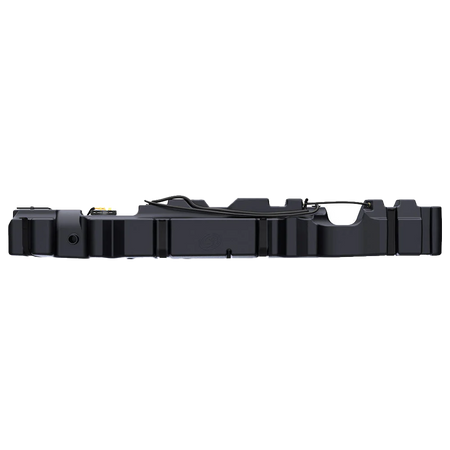

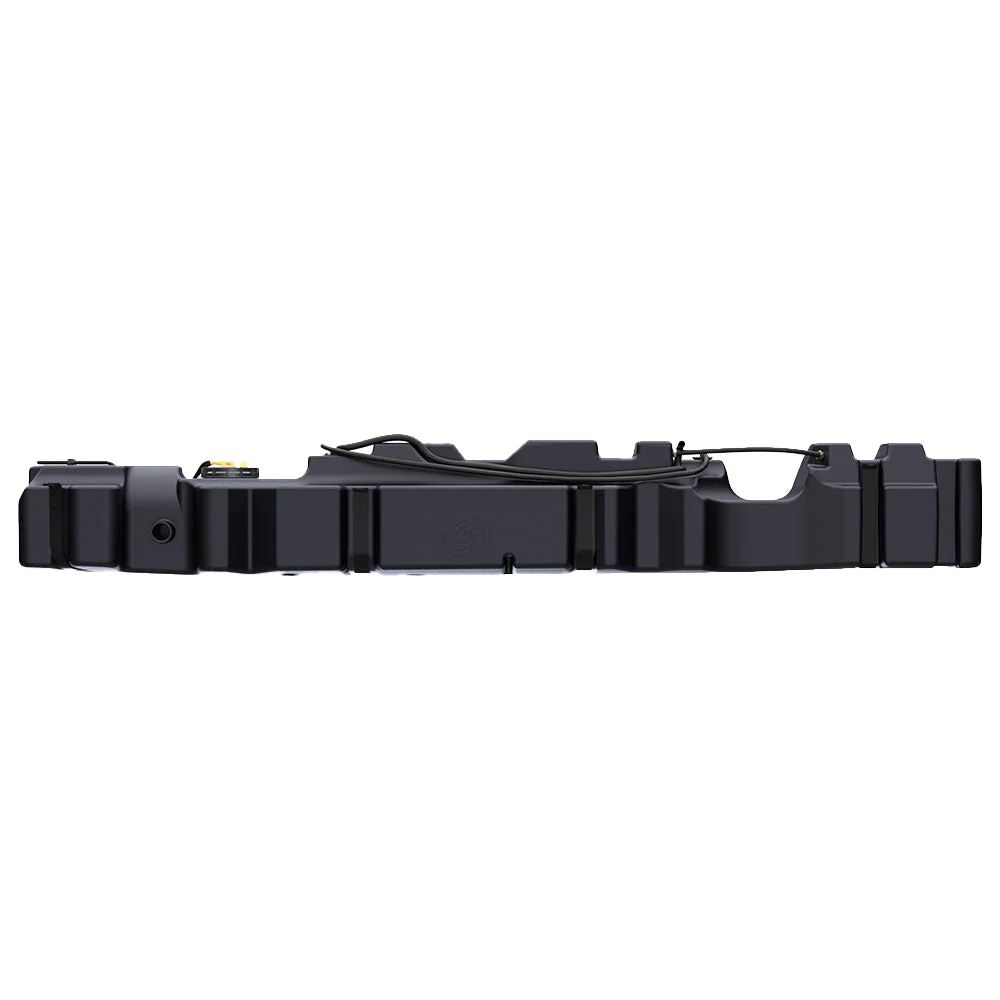

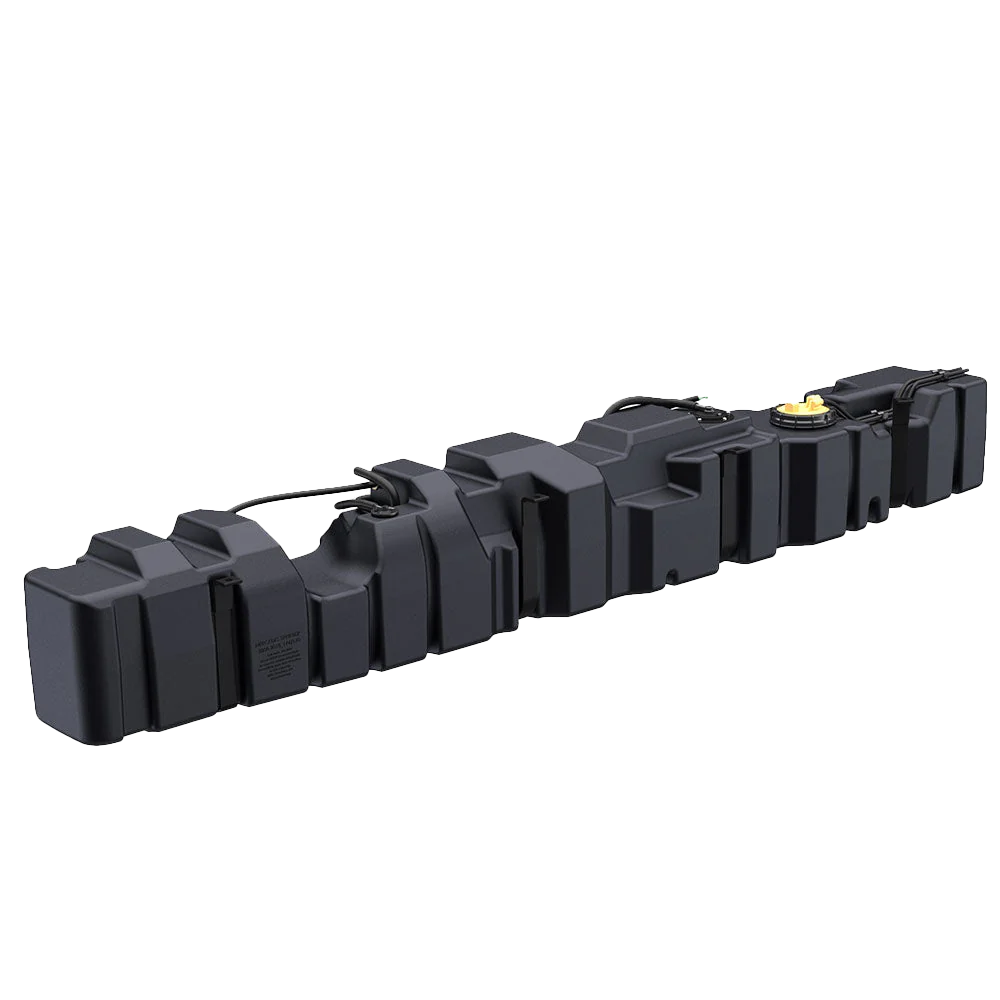

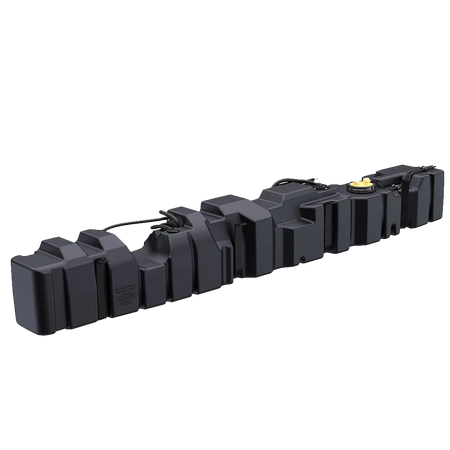

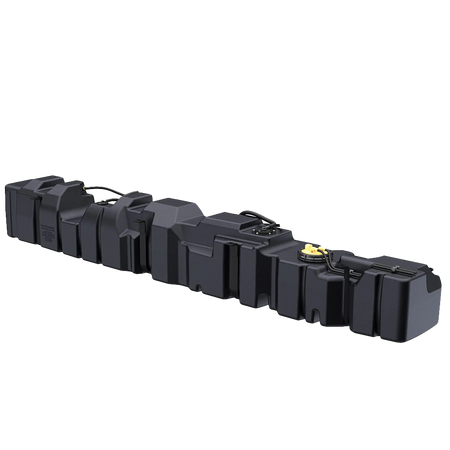

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with their 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward (2.4 inches) and rearward (32.5 inches) of the original tank.
Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by S&B lifetime warranty.
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design.The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.
Dimensions: 98.28" X 15.41" X 14.28"
Drain: No
Ground clearance compare to OE tank: 1.5"
OEM capacity: 24 Gallons
Sending unit: OE
Straps included: Yes
Sump: No
S&B Capacity (Approximate): 47 Gallons
Tank type: Midship
Weight dry: 45lbs
2007-2018 Mercedes, Sprinter 3.0L, Diesel
2007-2018 Mercedes, Sprinter 2.0L, Diesel
2009-2019 Coachmen, Prism 3.0L, Diesel
2010-2018 Forest River, Solera 3.0L, Diesel
This tank will NOT fit 170" Crew Vans or 144" Dually Vans. This tank will also not work with 144" vans that have ride height sensors connected to the rear axle, please see important note C on the instructions
Read why using these with S&B tanks will void the Lifetime Warranty.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
WARNING: This product can expose you to chemicals including carbon black, silica- crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.
