Sprinter(2007-2018) & Revel 2018-2019 (2017-2018 Chassis) 40 Gallon Replacement Fuel Tank
💬 Got questions? Contact Us
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Need help? OVP Install Center is here to help!
S&B Tanks are high capacity direct replacements for the OE fuel tank. Allowing for almost double the fuel capacity, so you can go further and not waste time at the pumps. Let S&B fuel your adventure.

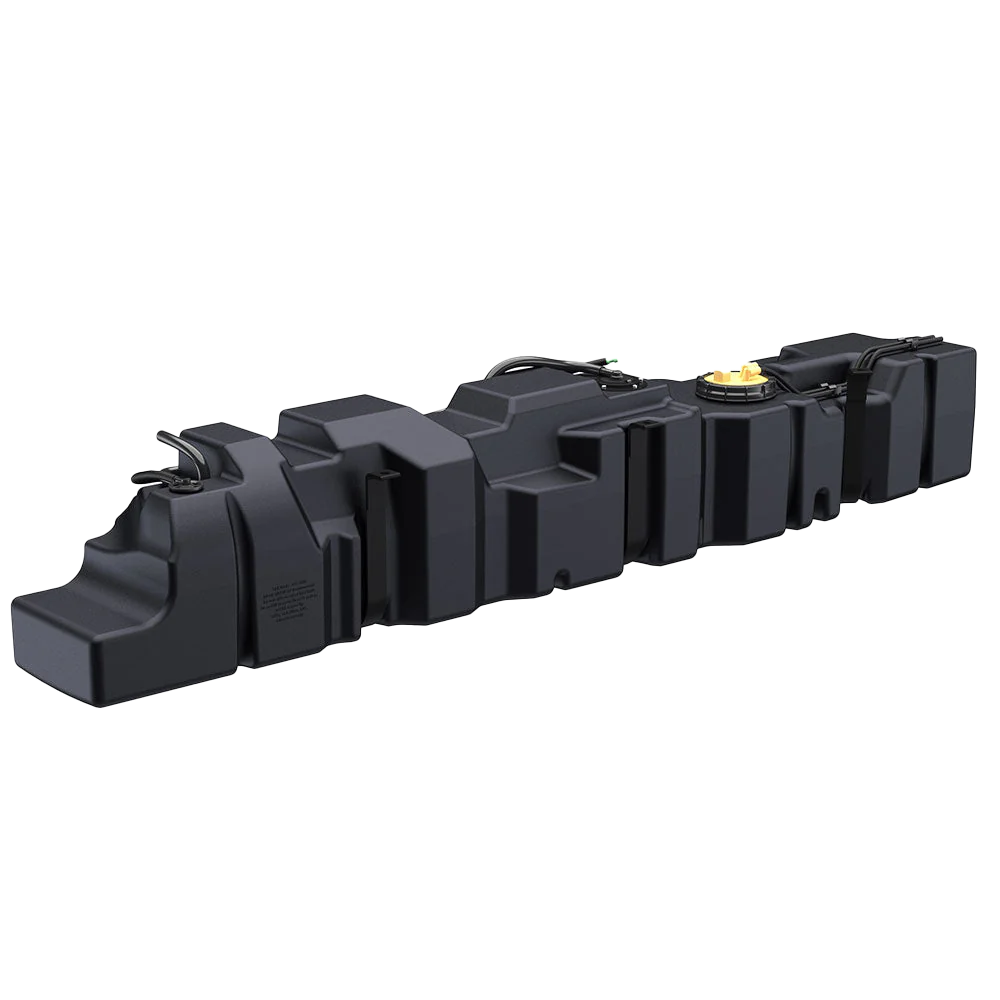

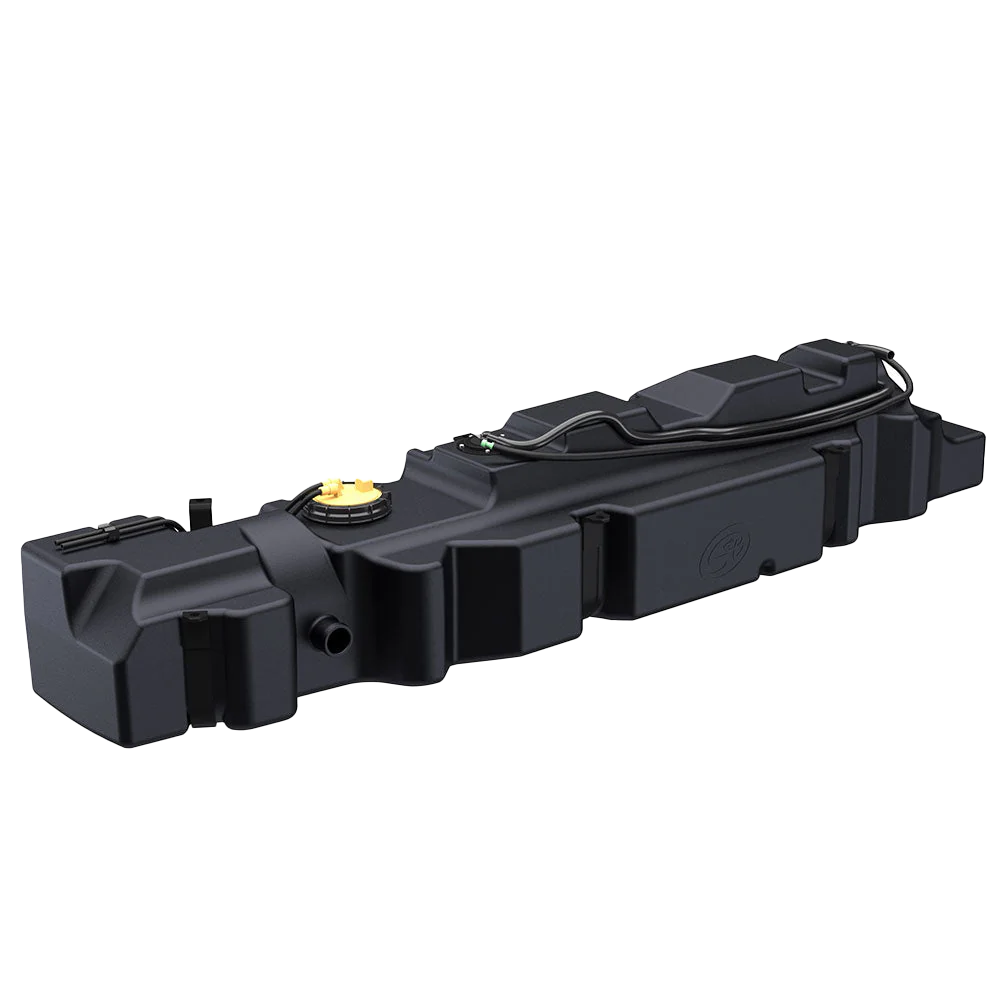

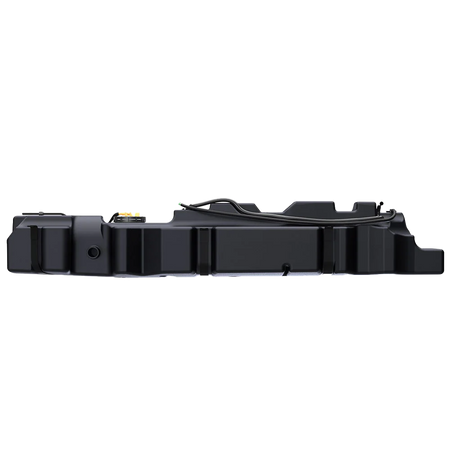

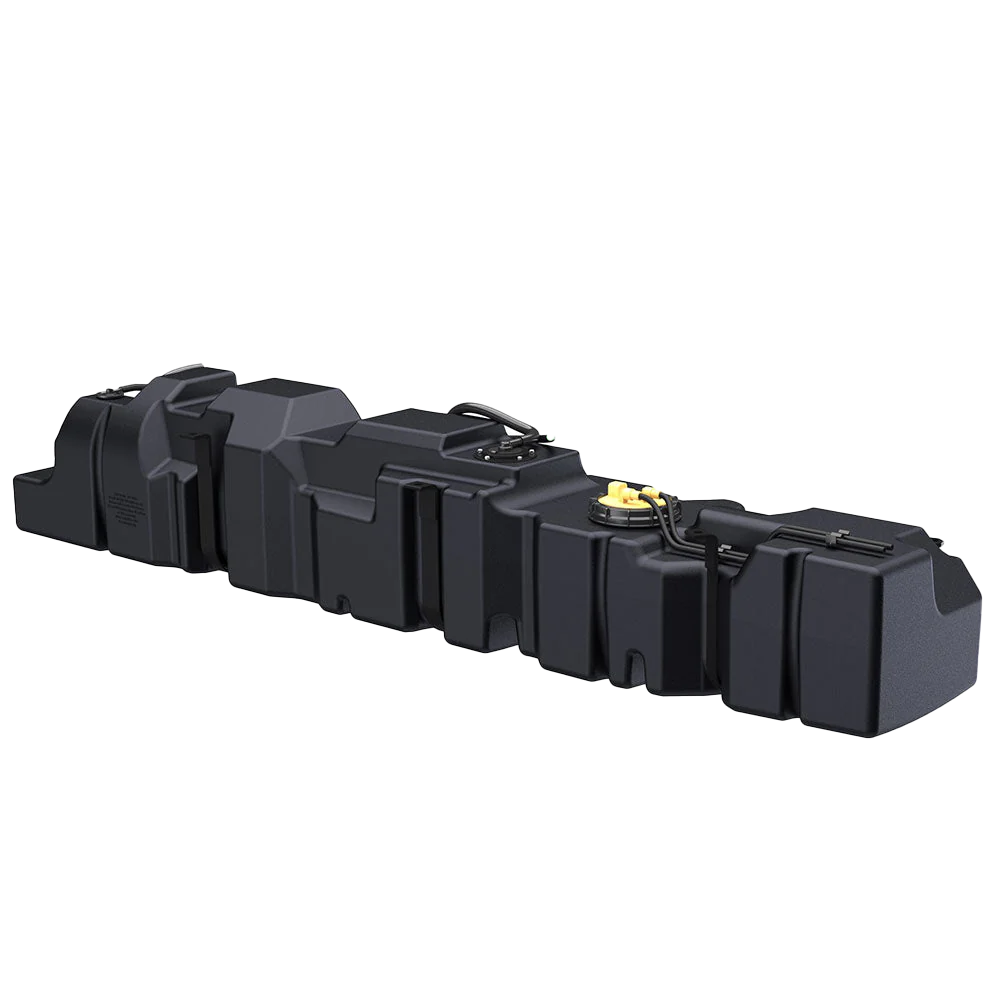

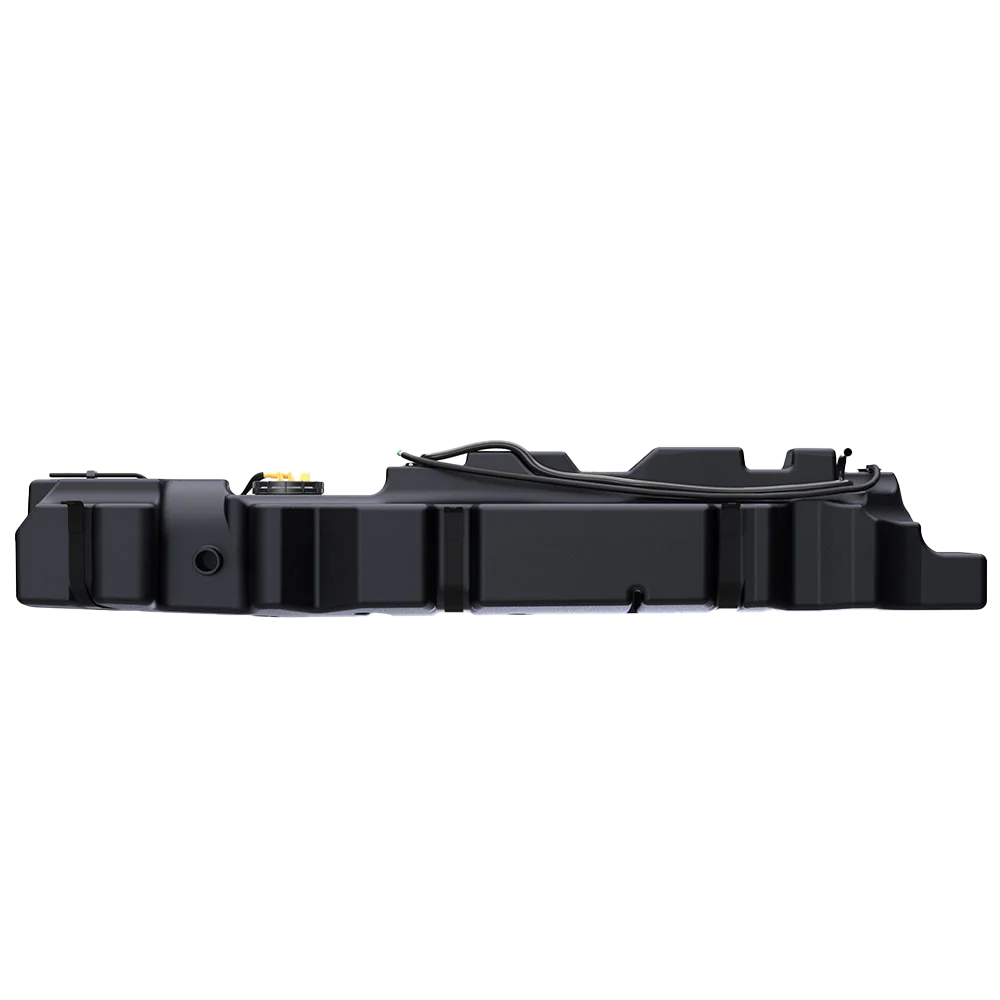

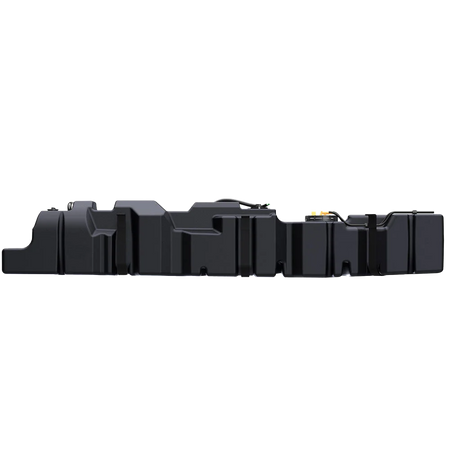

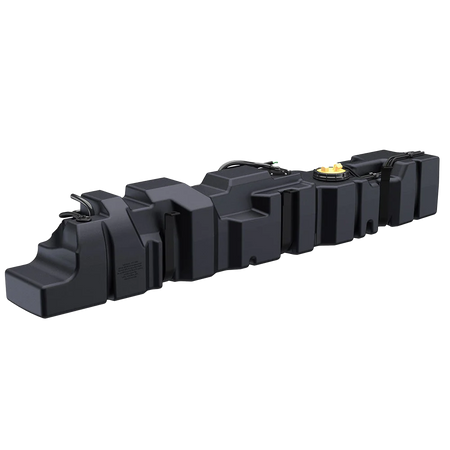

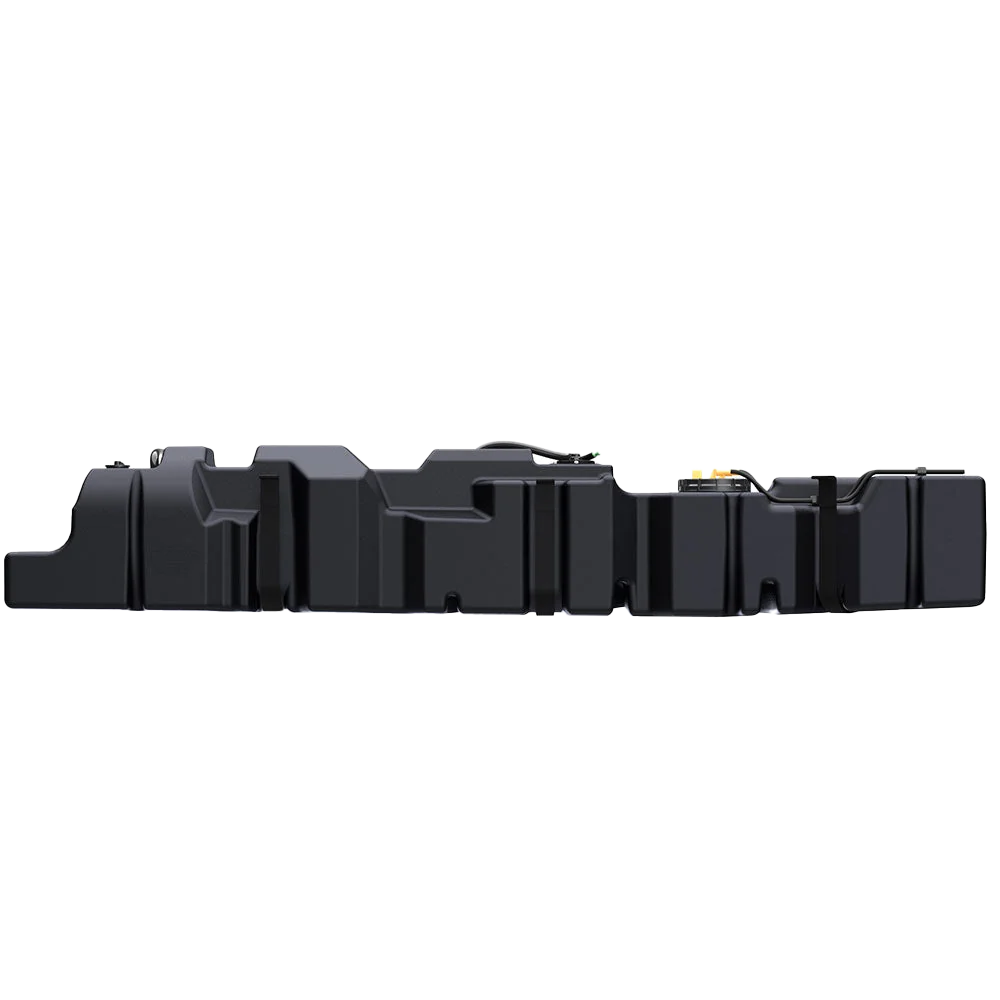

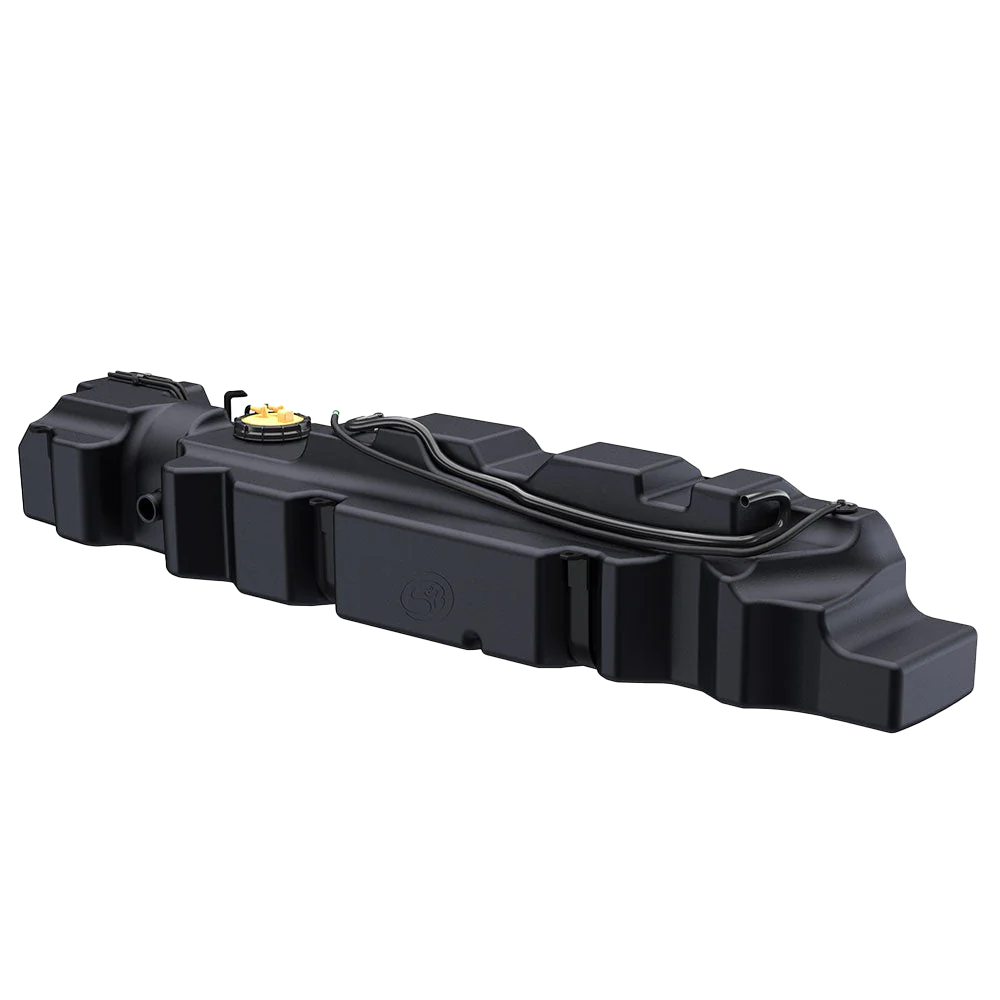

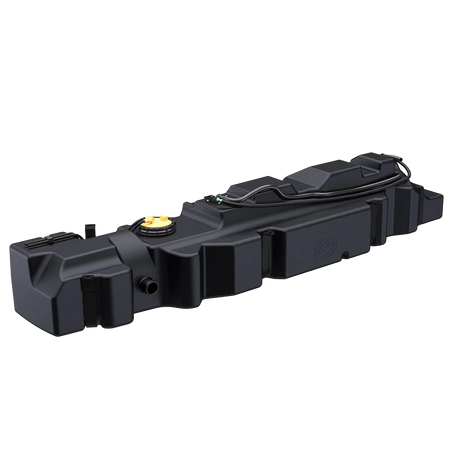

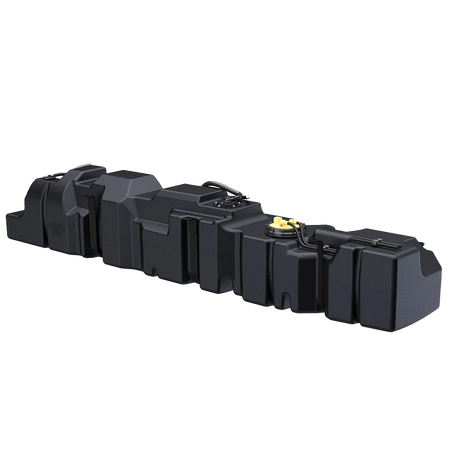

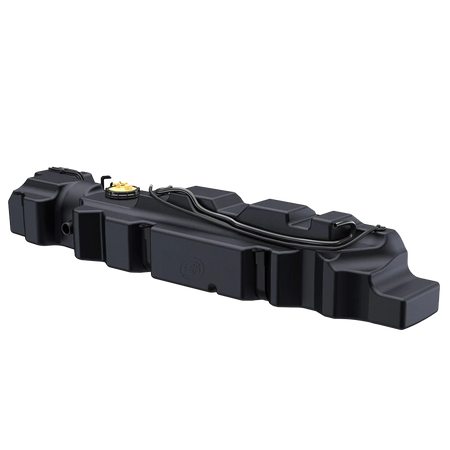

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with their 40 gallon tank. The tank mounts in the stock location using the included straps. The tank occupies the space forward (13.1 inches) and rearward (3.3 inches) of the original tank.
Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by S&B lifetime warranty.
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (40 gallons) you will have 800 miles to empty but your vehicle will show you have 480 miles to empty.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.
- Drain: No
- Ground clearance compare to OE tank: 1.5"
- OEM capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 40 Gallons
- Tank type: Midship
- Weight dry: 37lbs
- 2018-2019
Winnebago, Revel (2017-2018 Chassis)
3.0L, Diesel - 2007-2018
Mercedes, Sprinter
2.0L, Diesel - 2007-2018
Mercedes, Sprinter
3.0L, Diesel - 2009-2019
Coachmen, Prism
3.0L, Diesel
Read why using these with S&B tanks will void the Lifetime Warranty.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
