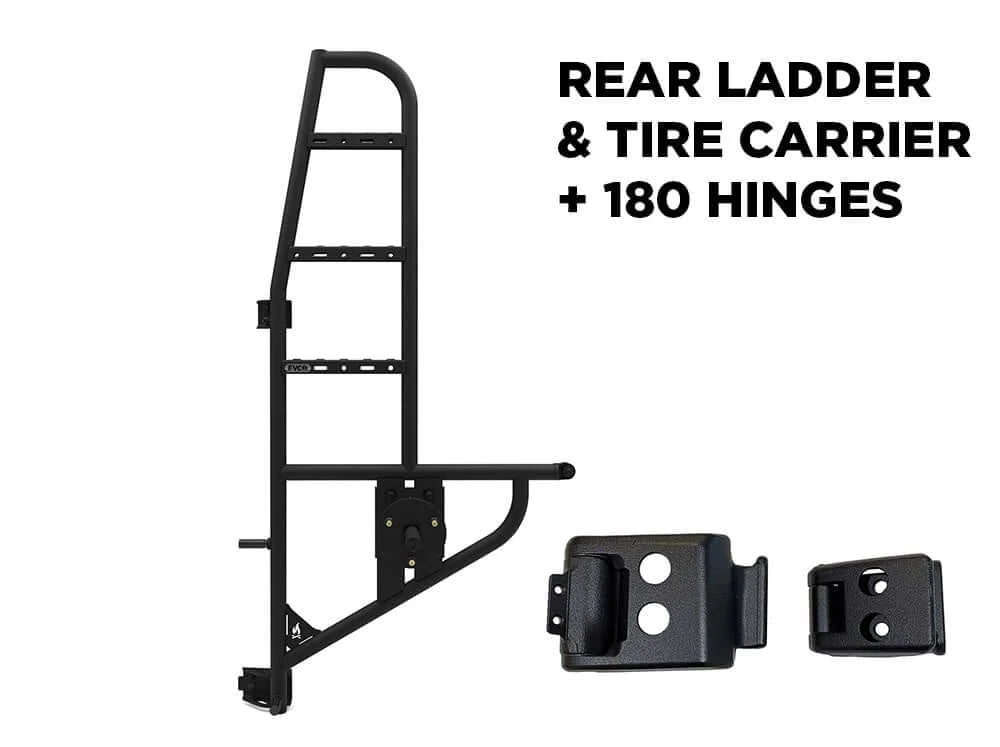

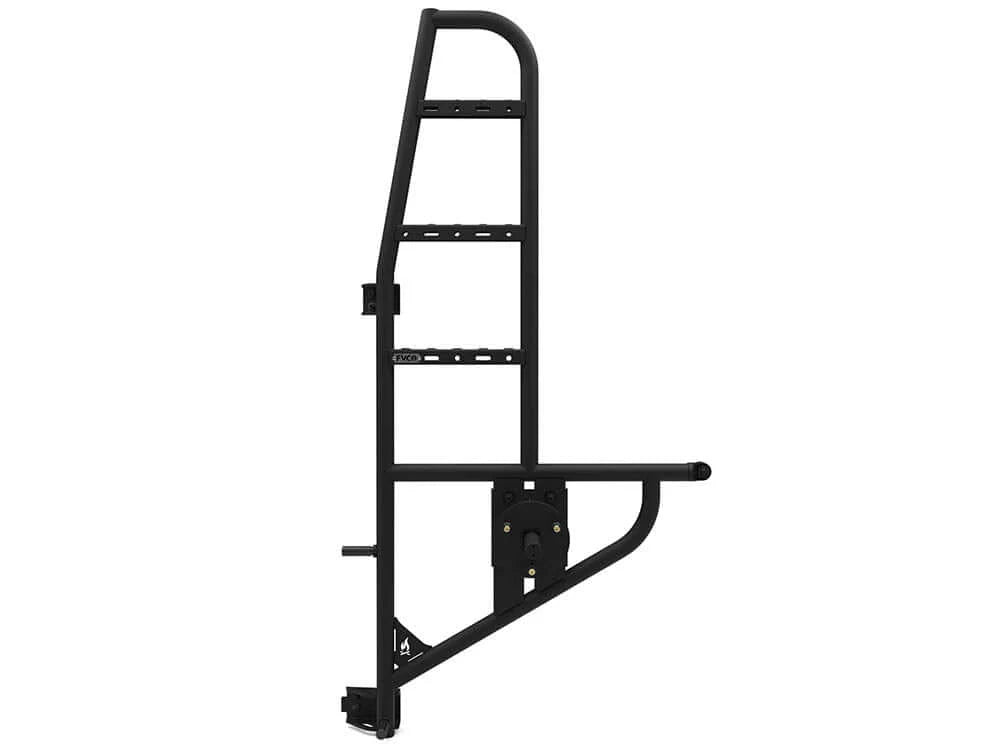

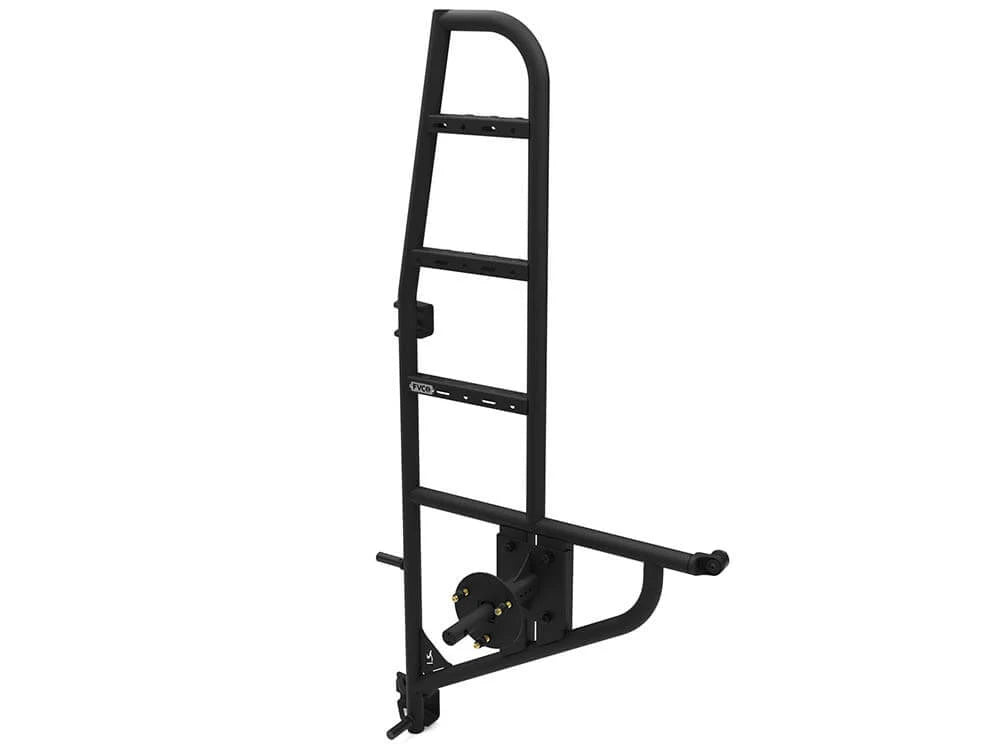

Sprinter Rear Ladder and Tire Carrier

Enjoy easy access to the roof and spare tire + gain more free space underneath your van with the Flatline Van Co. Sprinter Rear Ladder and Tire Carrier. This rear door product combines two essential add-ons to save you on added weight and money.

Storing the spare tire on the rear door makes it easier to access and frees up valuable space underneath your van for things like water and auxiliary fuel tanks. A fixed rear ladder makes it easy to get gear from the roof area, clean solar panels, and more.  It can also be helpful as a secondary ladder when loading big and bulky items on the roof.

The Sprinter Tire Carrier and Ladder is constructed on a sturdy 1.75” aluminum tube frame and features a stainless steel wheel mount, corrosion-resistant wheel studs, and locking lug nuts for security. For using the ladder, machined aluminum footpegs and formed dimples on the rungs provide the traction you want when climbing onto your van. The third mounting point on the rear door also utilizes the Flatline Van Co. dual-shock silicone dampener to prevent damage to the body of your van.

This product is compatible with 2019 and newer vans with 180-degree rear door hinges.

• Lightweight powder coated aluminum construction
• Silicone dampener
• Stainless steel wheel mount
• Locking lug nuts and lug nut key
• 14x1.5 Zinc yellow wheel studs, 65mm length (can accept up to a 15mm spacer), 10.9 grade hardness
• Adjustable lock rod for different wheels (Compatible with traditional hitch lock)
• Fits all tire sizes up to 285 without any alterations - Please note that tires over 275/70R17 may occasionally trip the parking assist sensors in the rear light assembly

• 2019+ Mercedes Benz Sprinter Vans with 180 hinges (VS30) (Driver's Side) NOT compatible with the 3500 Dually model without purchasing additional parts from Mercedes-Benz.
• 2020+ Winnebago Revel & Storyteller Overland with 180 hinges (Mercedes Sprinter models)  (Driver's Side)

• Installation Guide
