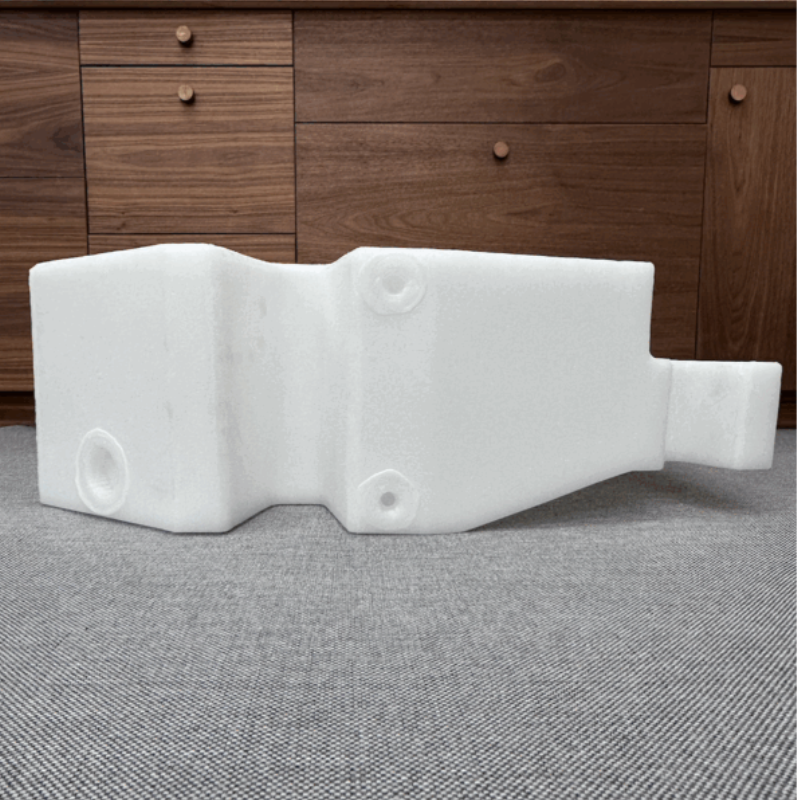

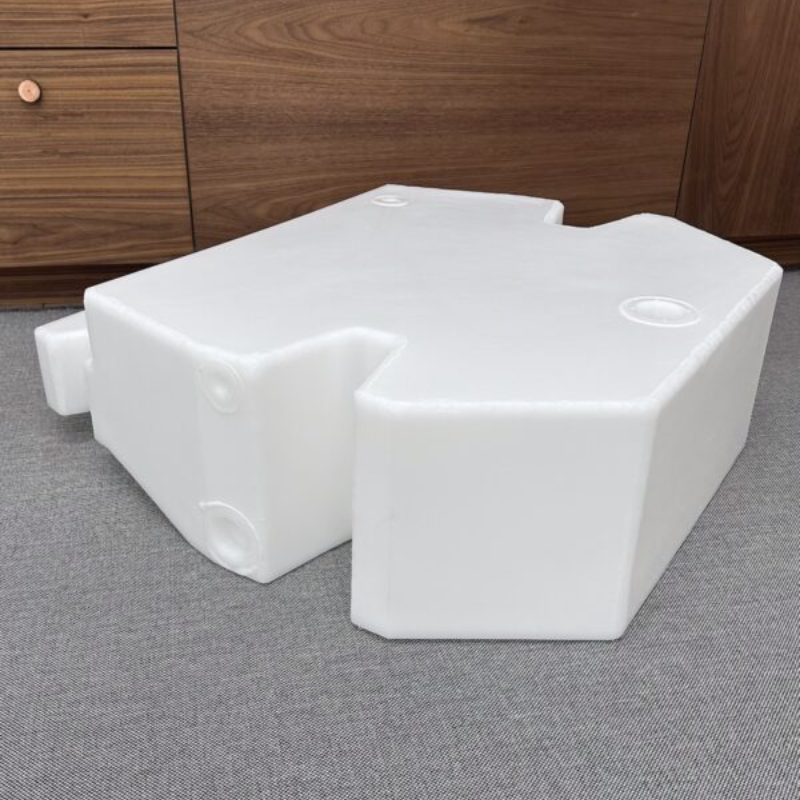

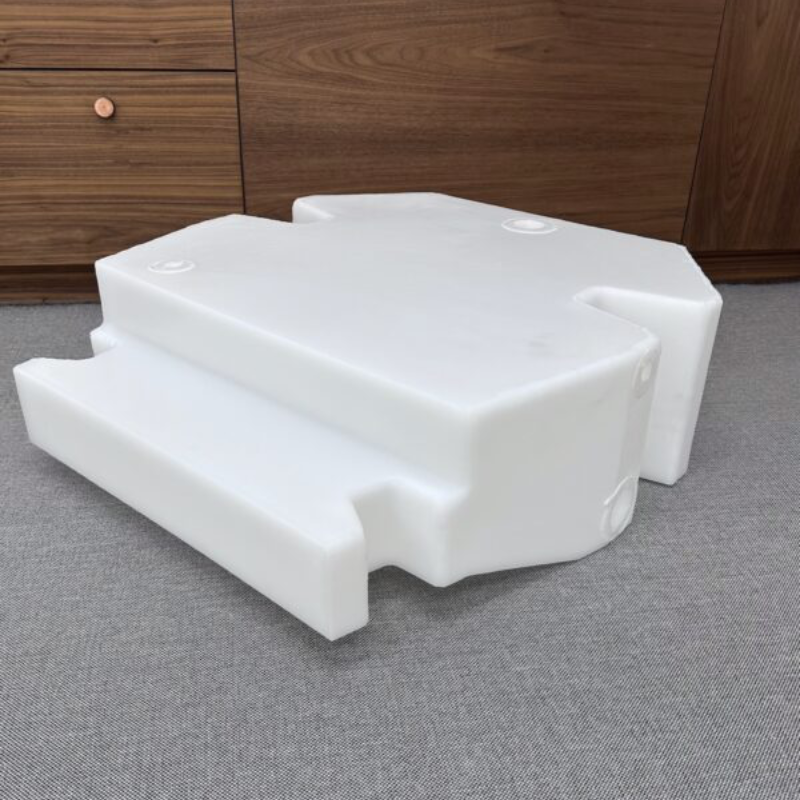

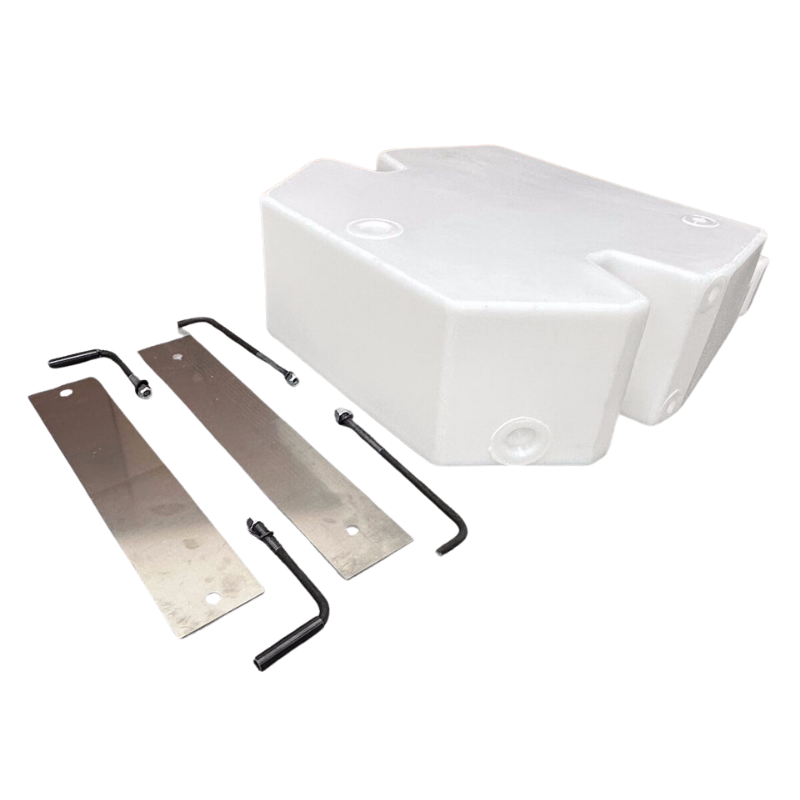

Free up your spare tire space for 24 gallons of water — with all mounting hardware included.

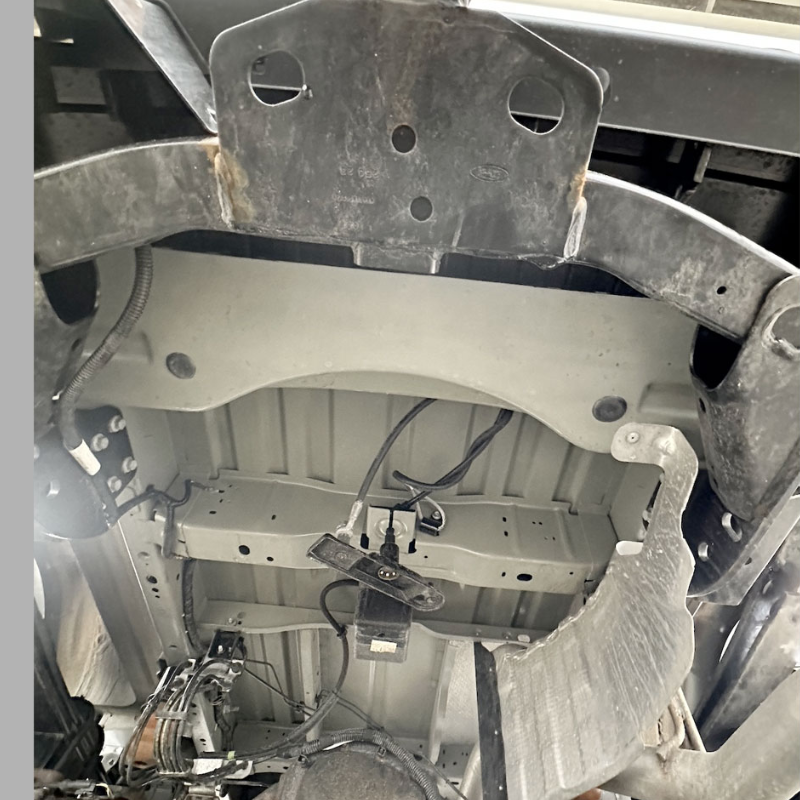

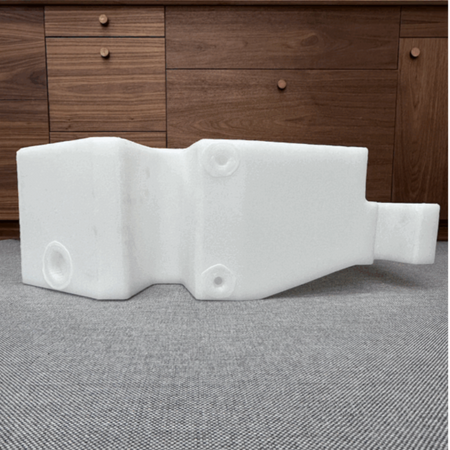

The TR-ST-24 is purpose-built to fit the Ford Transit's factory spare tire location, using the supplied mounting hardware for a secure, clean install. Relocate your spare to the rear door and you've instantly added substantial water storage without giving up a single inch of living space. Works for both fresh water and grey water applications.
Built from food-grade, BPA-free polyethylene and certified to IAPMO TS-4 / RVIA standards. Made in the USA by NW Conversions, trusted by professional van builders and DIY adventurers across North America.
Fits
- Ford Transit (2007–present) — spare tire location
- May fit other makes and models — confirm dimensions before ordering
Specs
| Capacity | 24 gallons |

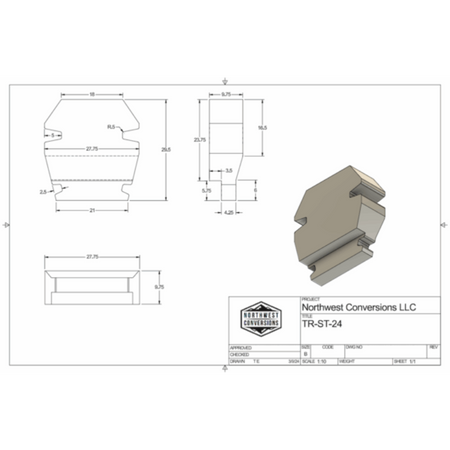

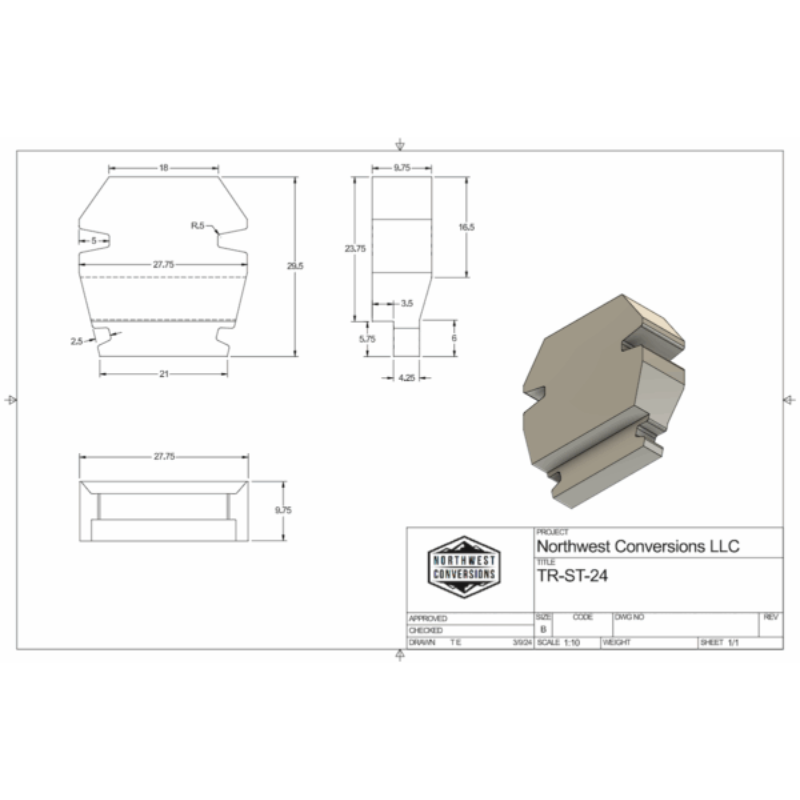

| Dimensions | 30″ L × 28″ W × 9.75″ H (approx.) |
| Weight (empty) | 34 lbs |
| Material | BPA-free, food-grade polyethylene |
| Water use | Fresh water or grey water |
| Certifications | IAPMO TS-4 / TEI Listed / RVIA Approved |
| Made in | USA |
| System type | Non-pressurised — must be vented |

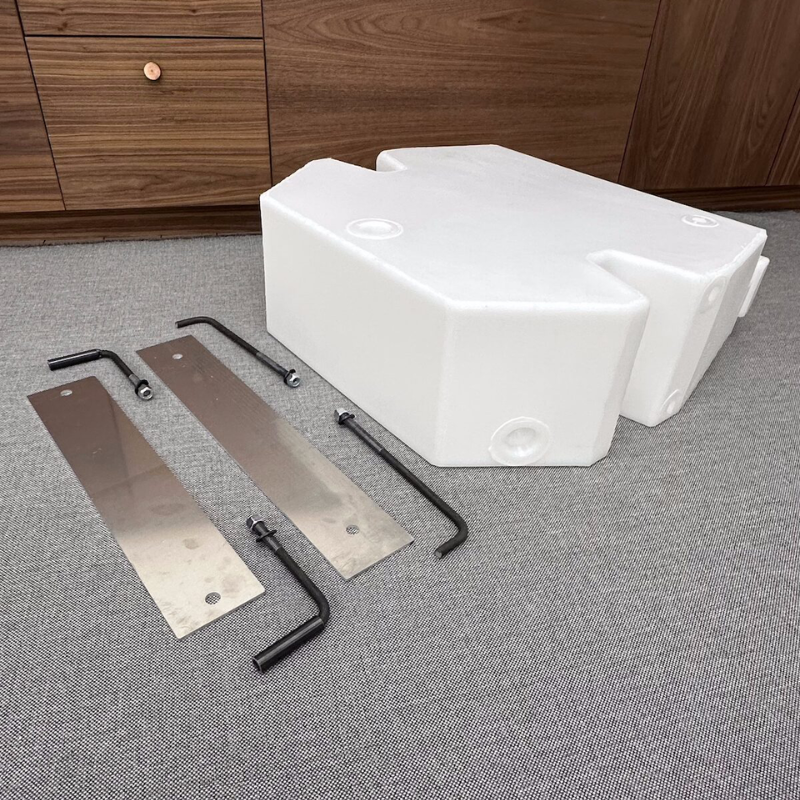

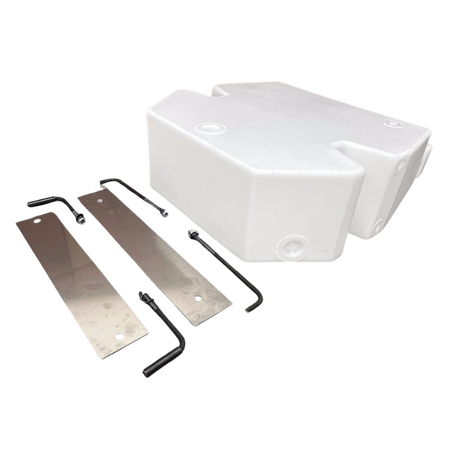

| Hardware included | 1/2″ mounting hardware and plates included |

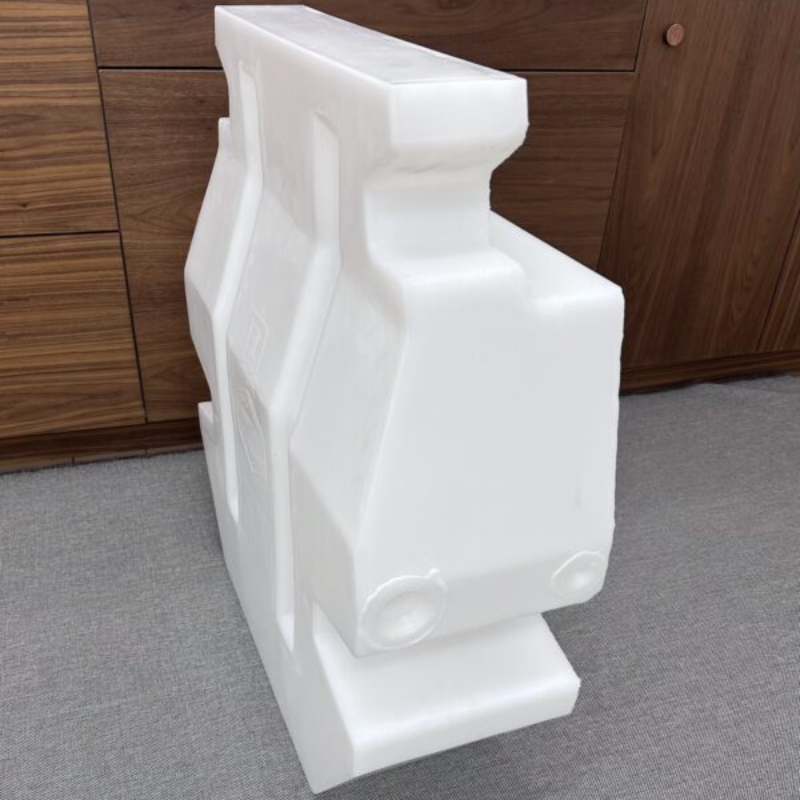

Port Configuration
- Driver side: (2) 1.5″ NPT + (2) 1/2″ NPT
- Top: (1) 1.5″ NPT + (1) 1/2″ NPT (float sensor or vent)
