Maximize your Transit’s water capacity with a driver-side undercarriage tank that uses your existing fuel strap bolt locations.

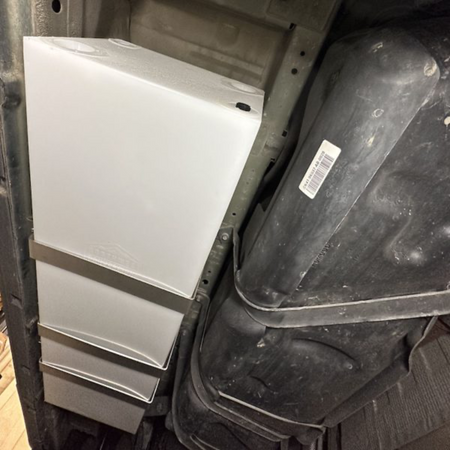

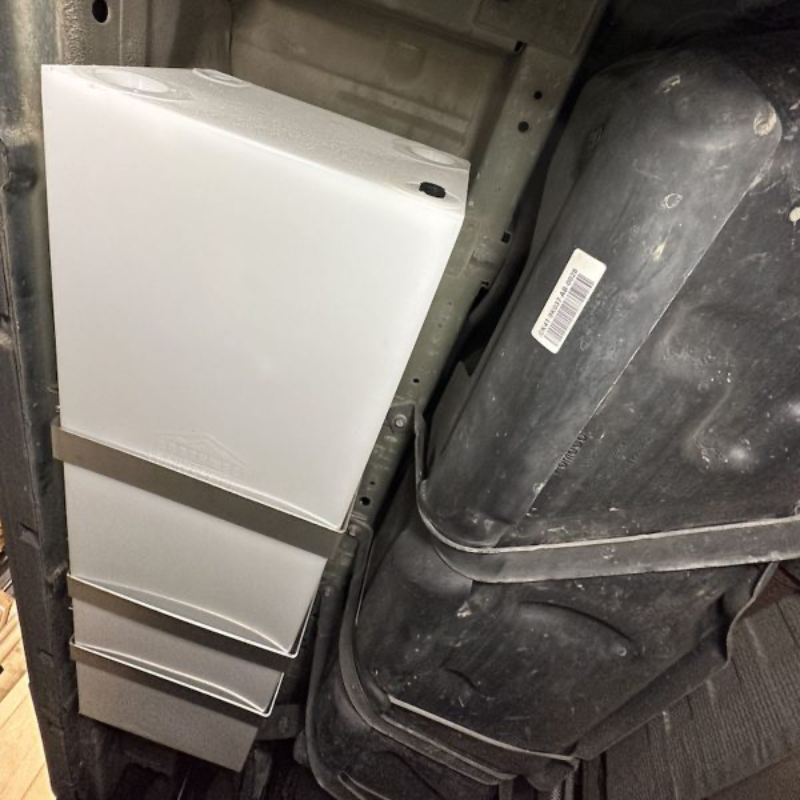

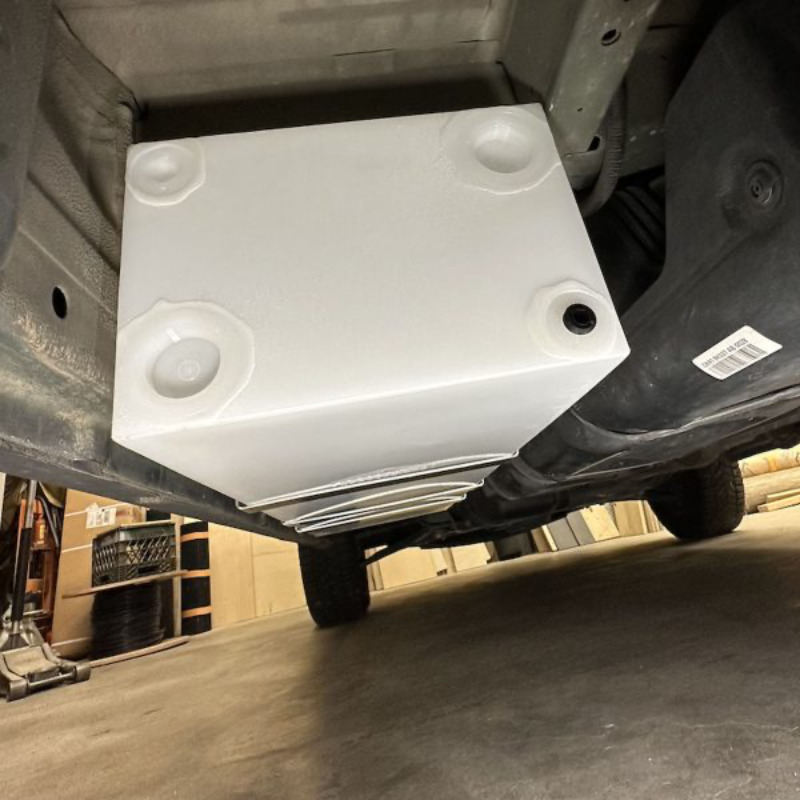

The TR-UC-20 mounts under the driver side of your Ford Transit, next to the OEM fuel tank, using existing fuel strap mounting points to minimise drilling. Three stainless laser-cut straps and all hardware are included. Suitable for fresh or grey water, and sized to give serious water capacity without compromising your interior layout.
Built from food-grade, BPA-free polyethylene and certified to IAPMO TS-4 / RVIA standards. Made in the USA by NW Conversions.
⚠️ May NOT fit Transit vans with a rear passenger heater or AC unit due to heater lines in the mounting bay. Consider the TR-UC-16 if your van has this option.
Fits:
∙ Ford Transit 148″ / 148″ EXT (2014–present)
∙ Driver side undercarriage, next to fuel tank
Specs:
Weight: 23lbs
| Capacity | 20 gallons |

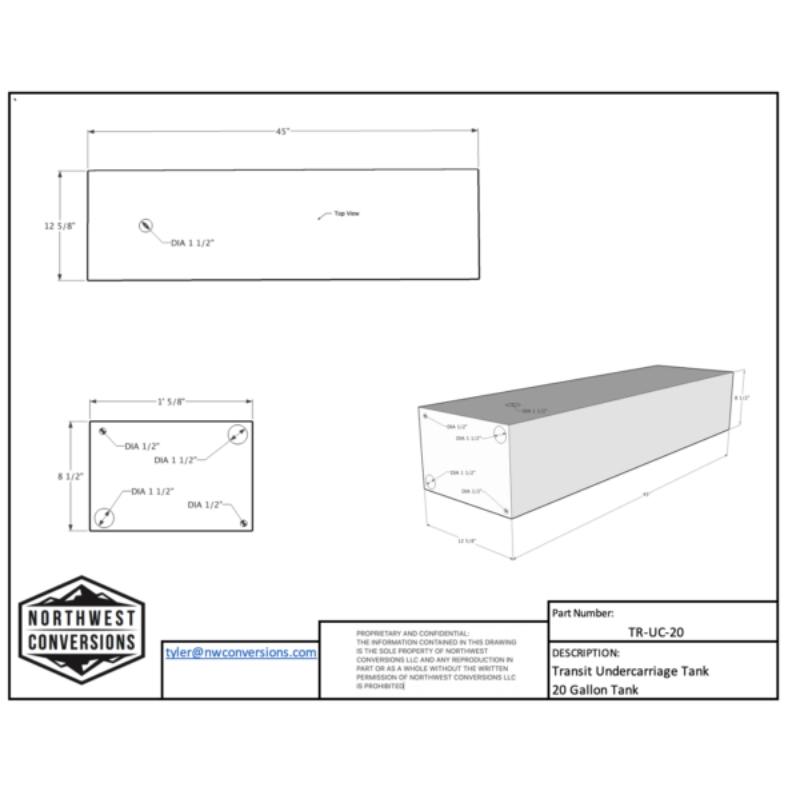

| Dimensions | 45″ L × 12.75″ W × 8.5″ H |
| Material | BPA-free, food-grade polyethylene |
| Certifications | IAPMO TS-4 / TEI Listed / RVIA Approved |
| Made in | USA |
| System type | Non-pressurised — must be vented |
| Hardware included | (3) stainless steel laser-cut mounting straps, 3/8″ hardware, 3/8″ rivnuts. Rivnut tool required — not included. |
| Running board compatibility | ⚠️ Does NOT fit vans with factory running boards or rear passenger heater/AC unit. Confirm clearance before ordering. |
Ports:

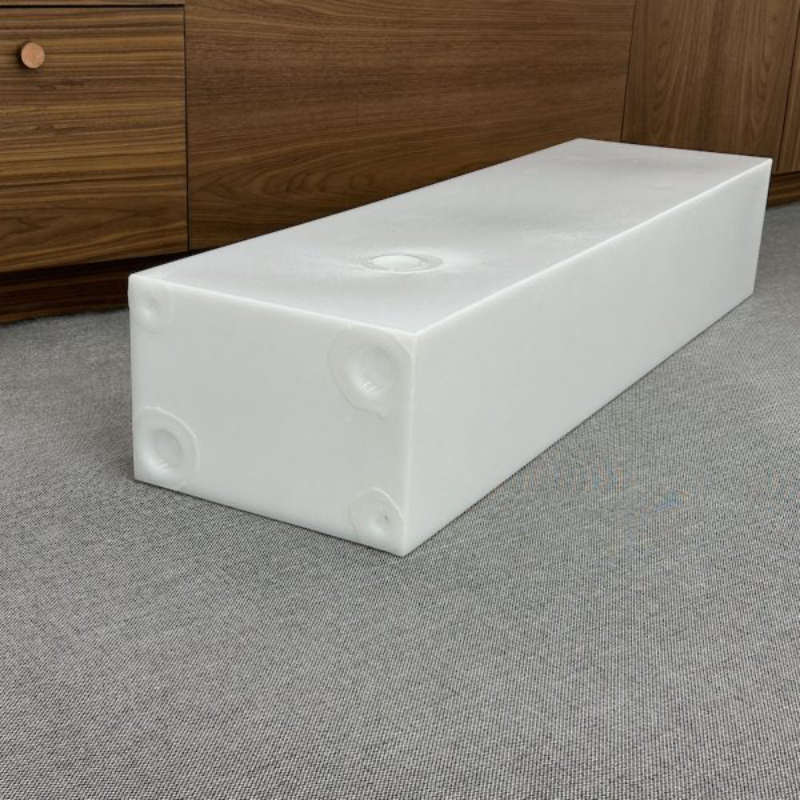

∙ Rear-facing end: (2) 1.5″ NPT + (2) 1/2″ NPT
∙ Top: (1) 1.5″ NPT
What’s Included:

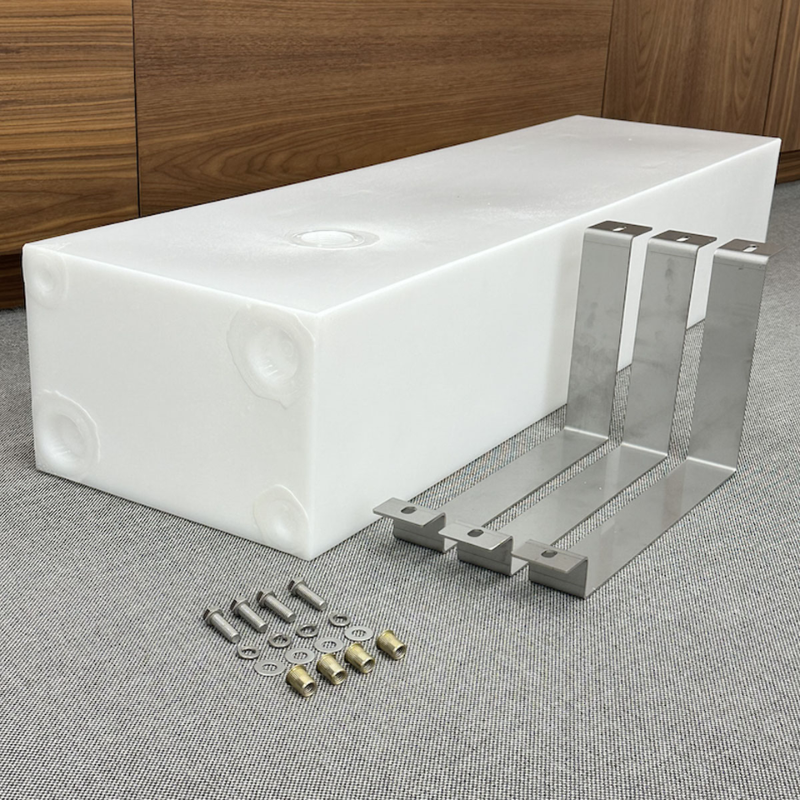

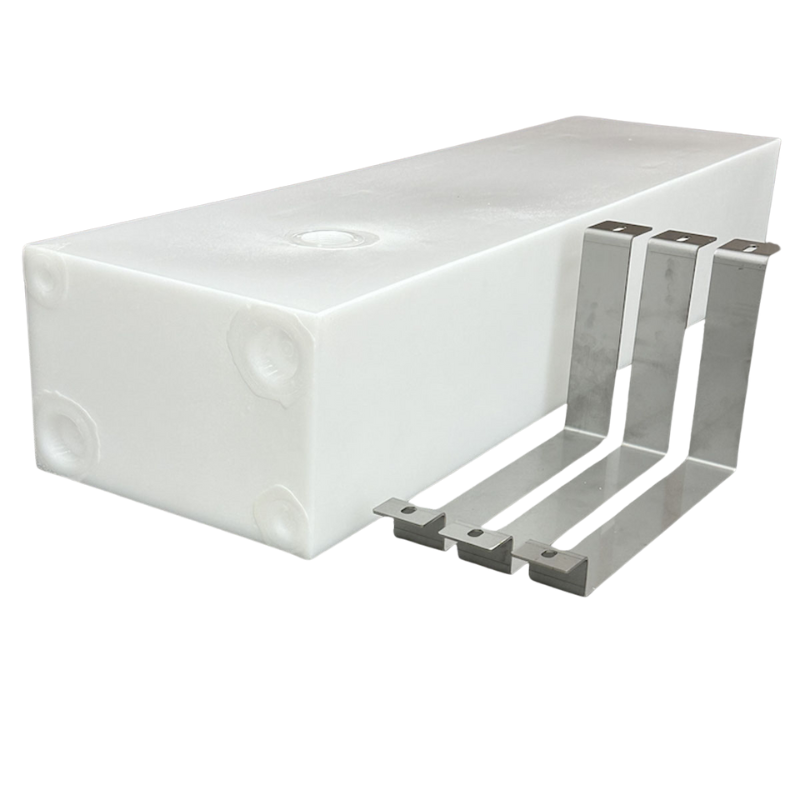

Tank, (3) stainless steel laser-cut mounting straps, stainless 3/8″ hardware, rivnuts. Rivnut tool required — not included.
Tank Compatibility:
