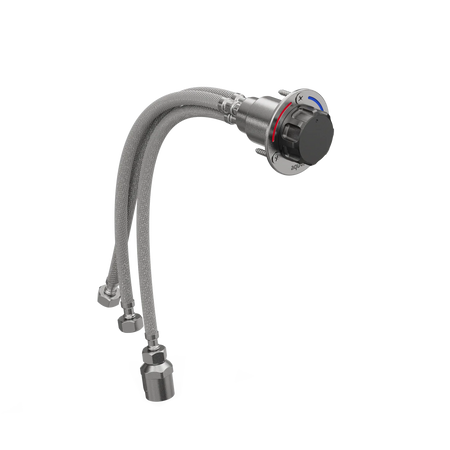

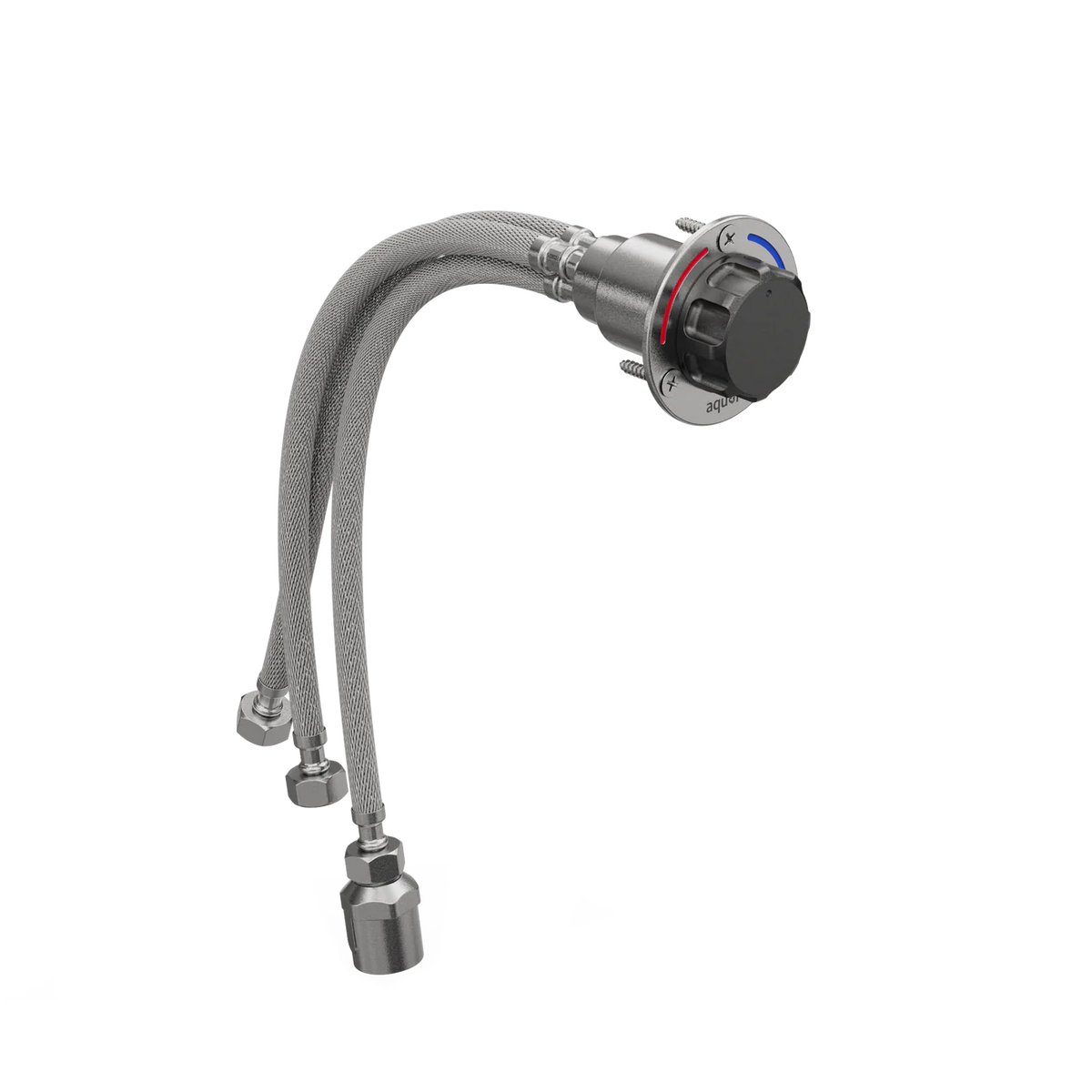

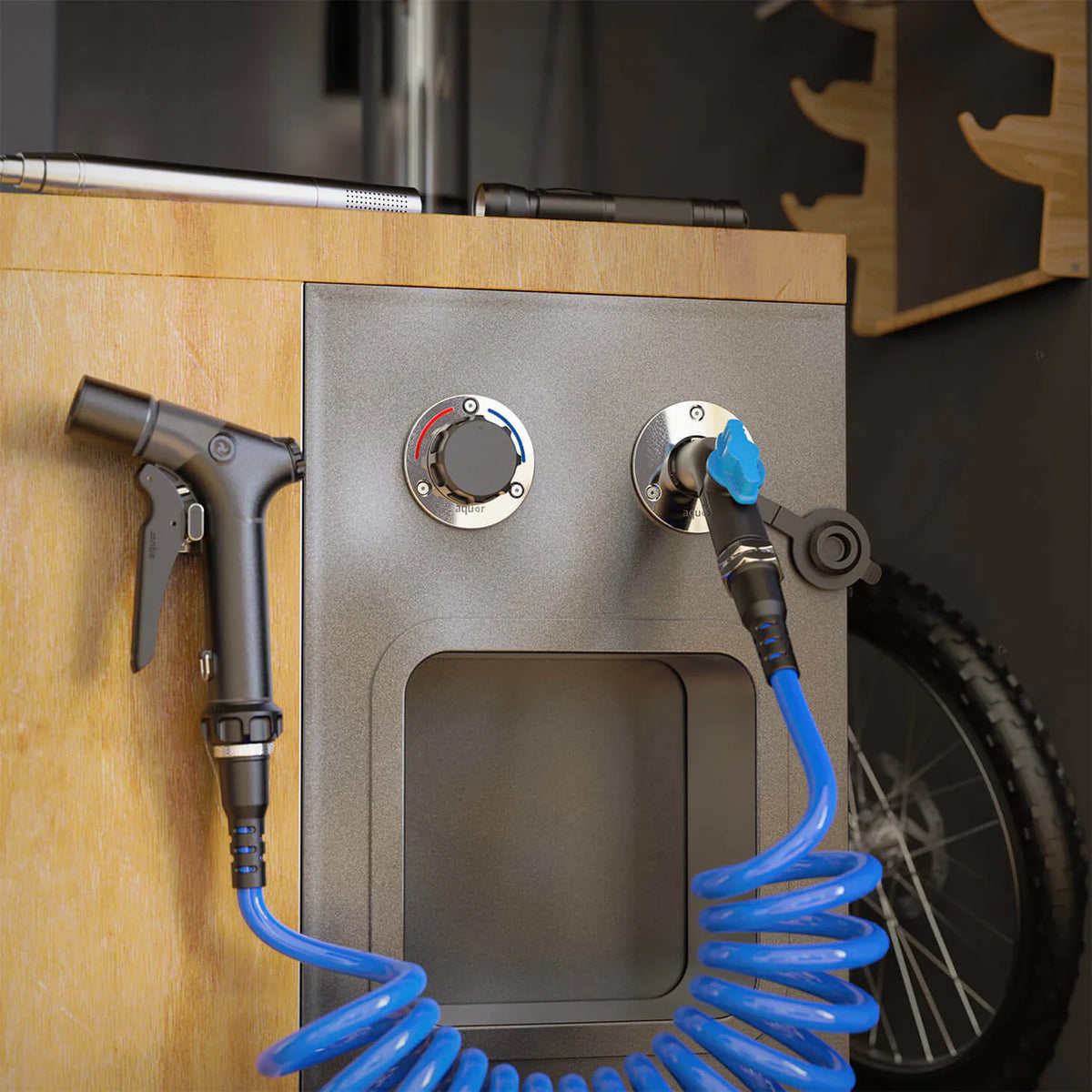

Enjoy convenient access to tempered water with the Aquor Mixing Valve for RV/Marine. A single dial valve that controls temperature, perfect for an outdoor shower or dog wash set-up. Pair with any hydrant such as an RV City Water Inlet, Marine Deckwash, or third party hydrant. Valve, hoses, and mounting hardware included.

Not recommended for residential use.

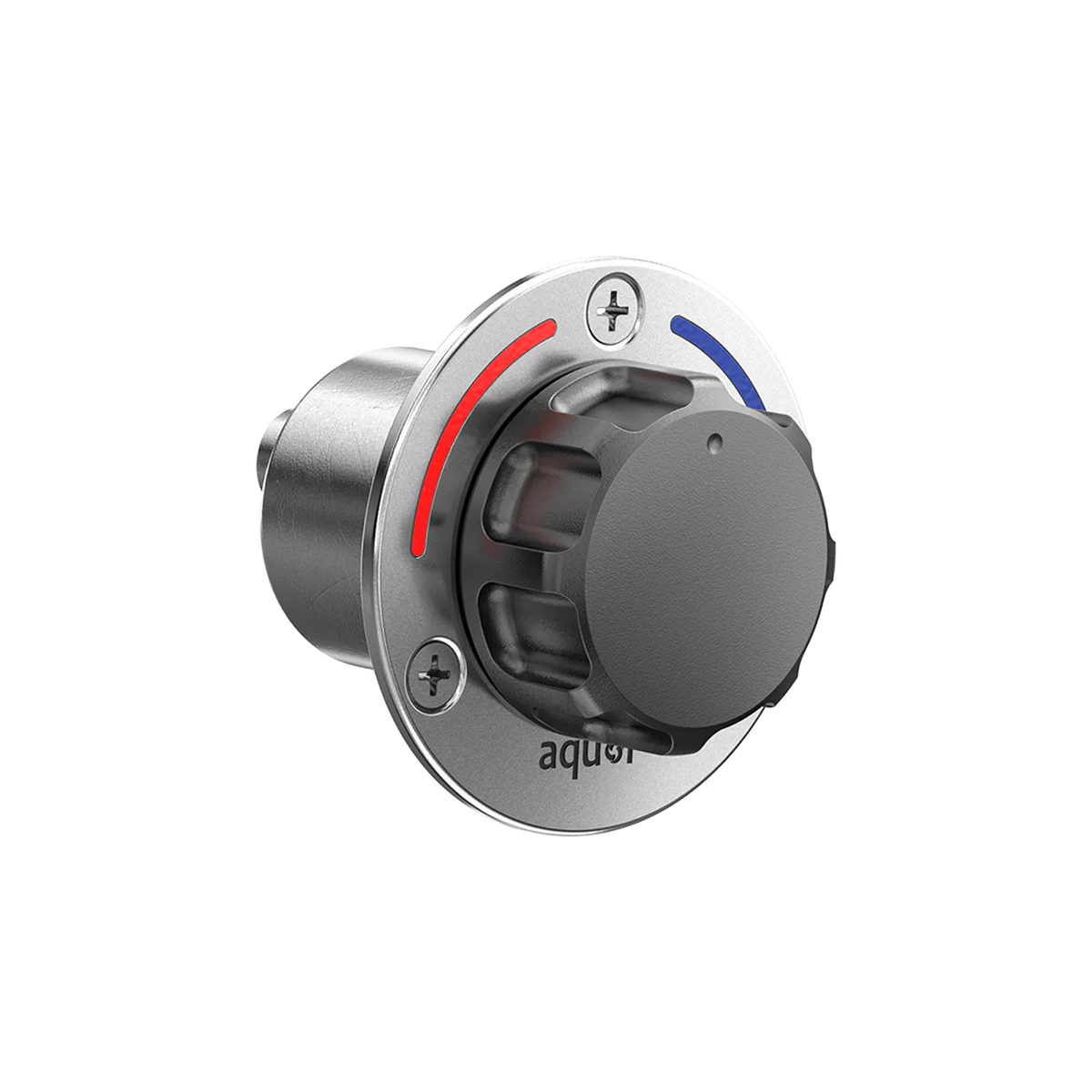

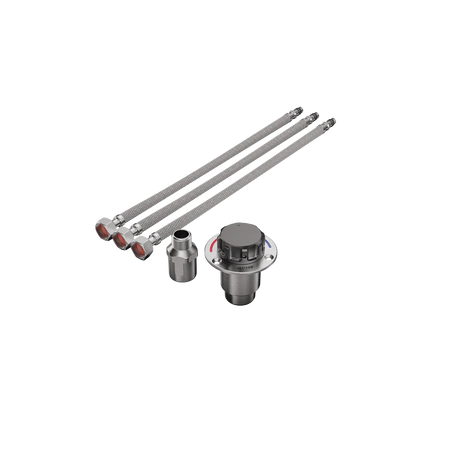

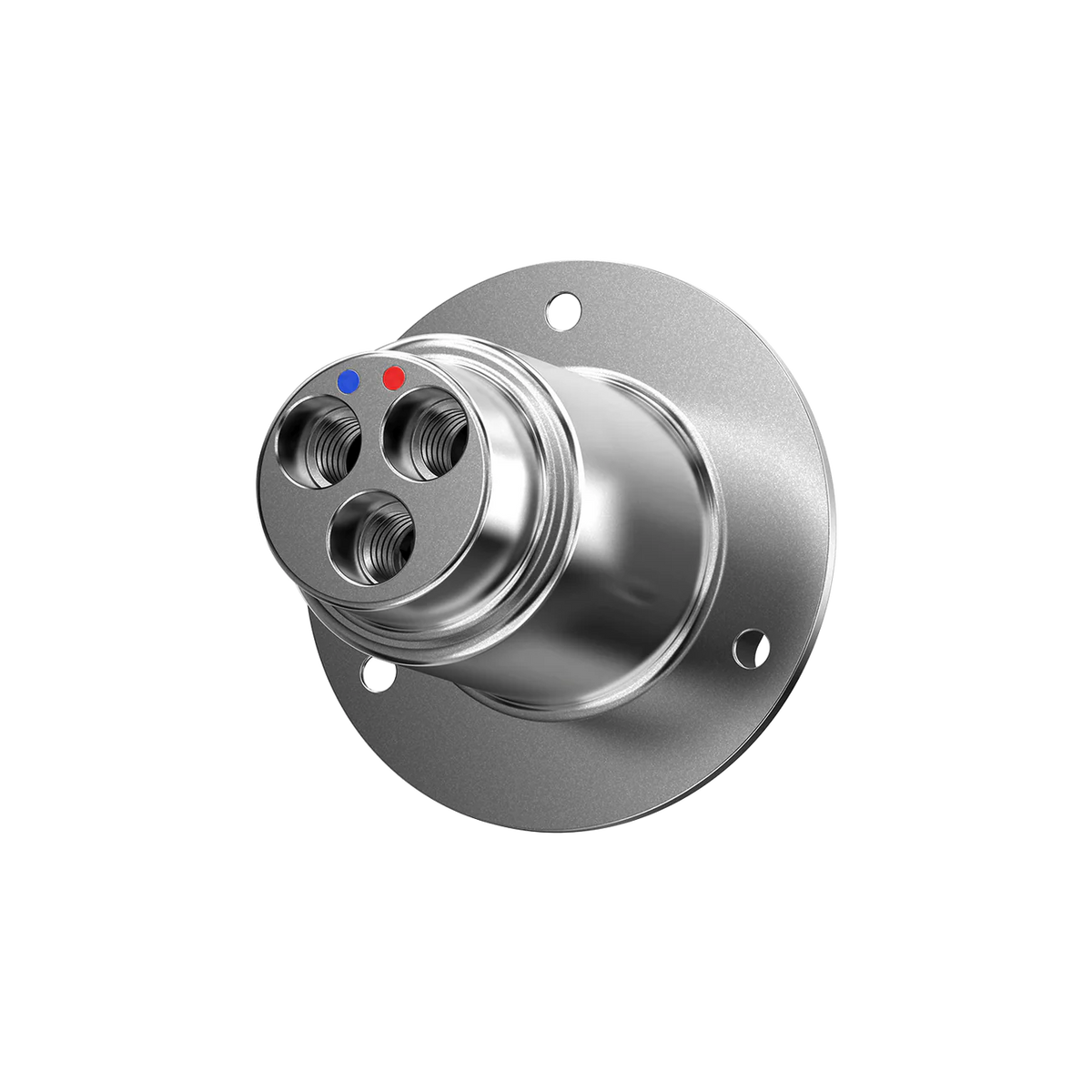

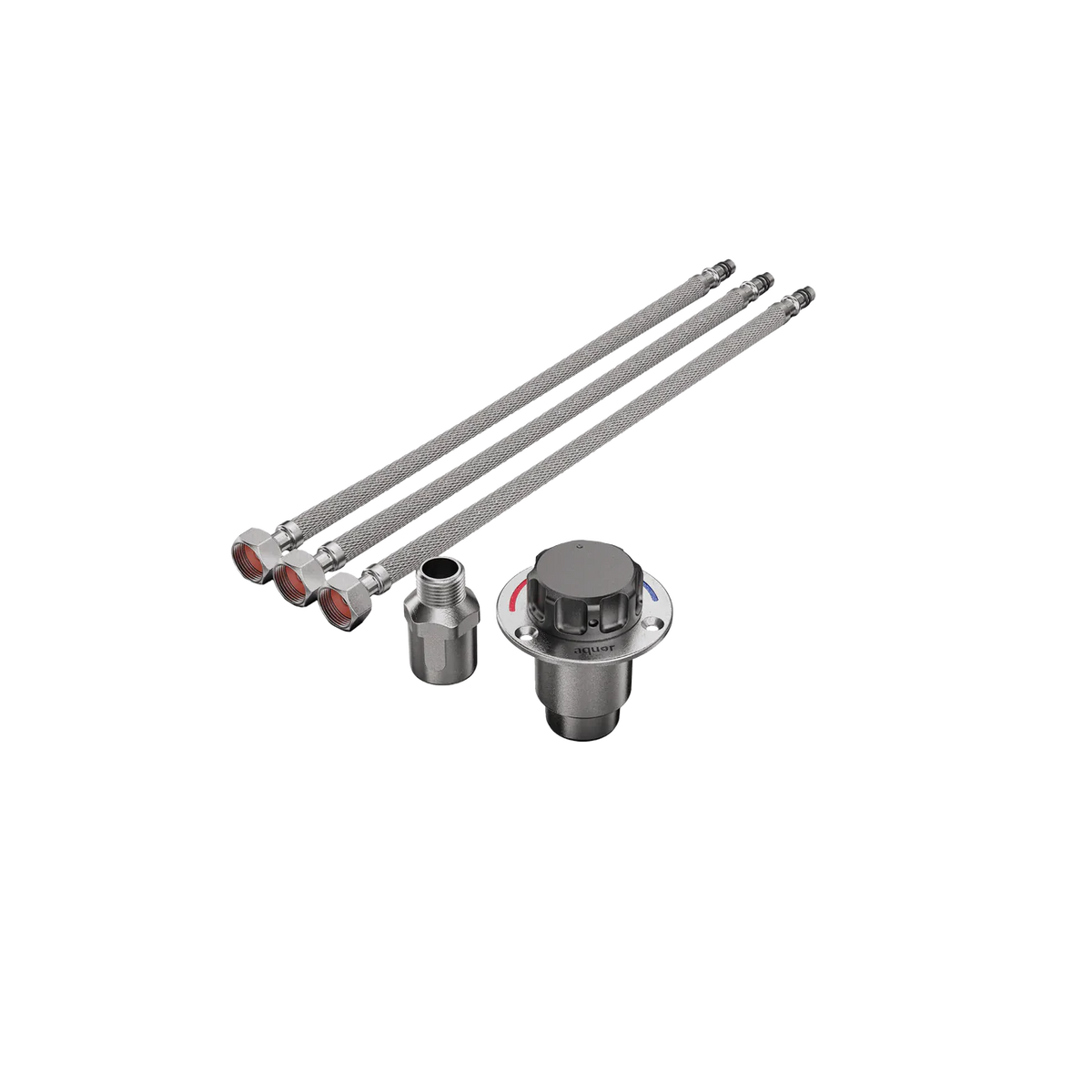

• Valve Body
• x3 M10*1 (m) x G1/2" (f) In/Out Hoses
• x3 #10 Flathead 1 - 1/2" Mounting Screws
• G1/2" (m) Inlet - for connecting to Aquor Hydrants
• Install Guide

• Entry Hole: 1 -3/4"
• Inlet: G1/2" (BSPP) (f)
• Outlet: G1/2" (BSPP) (f)
• Operating Temperature: 33-140°F
• Operating Water Pressure: Up to 125 PSI
• Plumbing Compatibility: G1/2" (BSPP) (f)
• Body Material: Stainless Steel
• Knob Material: Nylon
• Mixing Cartridge: CC-MX1
• O-Ring Material: Fluorocarbon rubber
• Warranty: Limited lifetime all Aquor Hydrants and valves, 5-year limited warranty all other products and parts

Installation Guide

• Recommended for RV/Marine applications
• Outgoing water fixture should be installed a minimum of 3 - 1/2" away from the center of the mixing valve

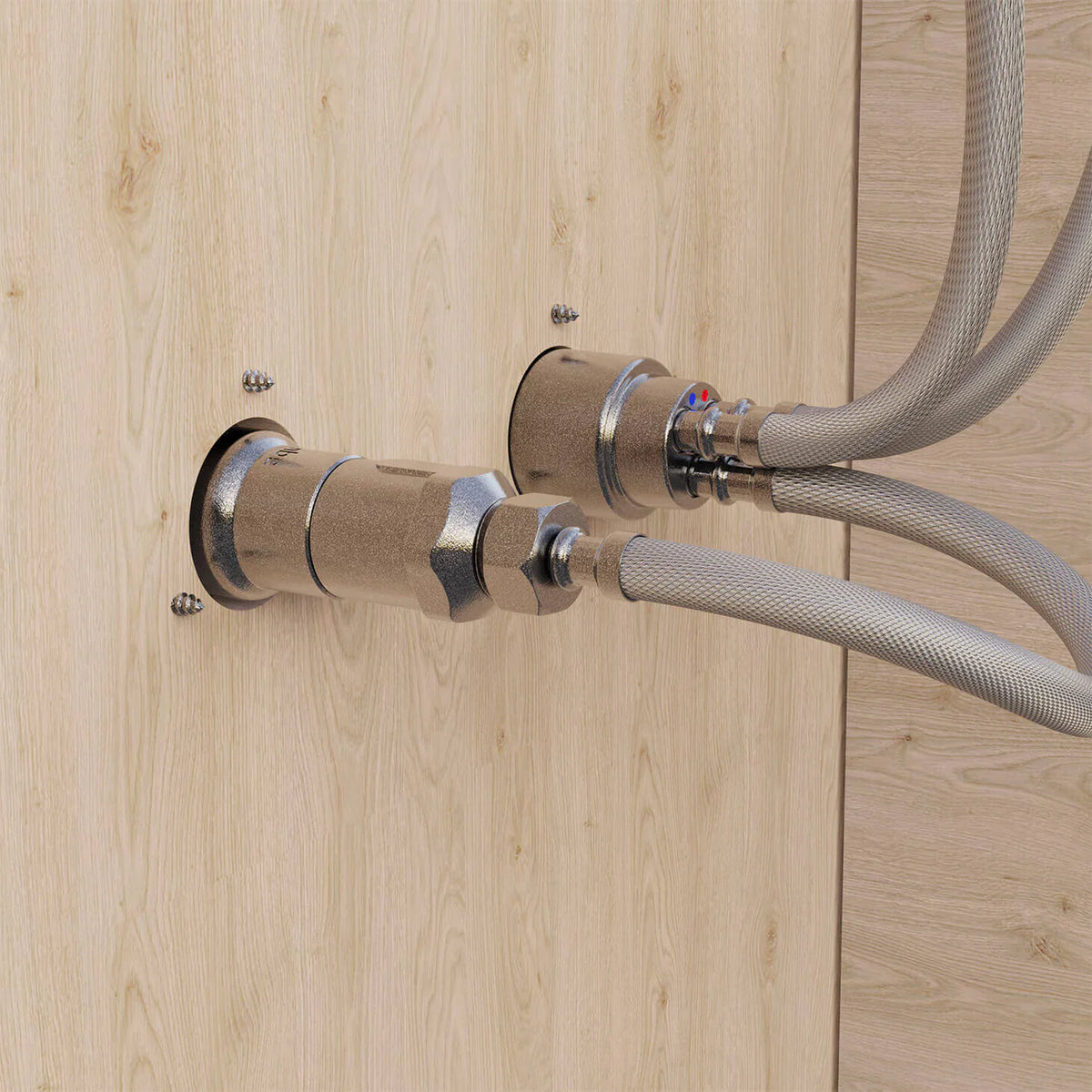

• Leave access to feed hoses when installing
• Intended for mild climates, will not prevent freezing
• Be sure to drain hydrant and plumbing before temperatures drop below freezing to prevent damage
• Marine-grade stainless steel and non-toxic materials
