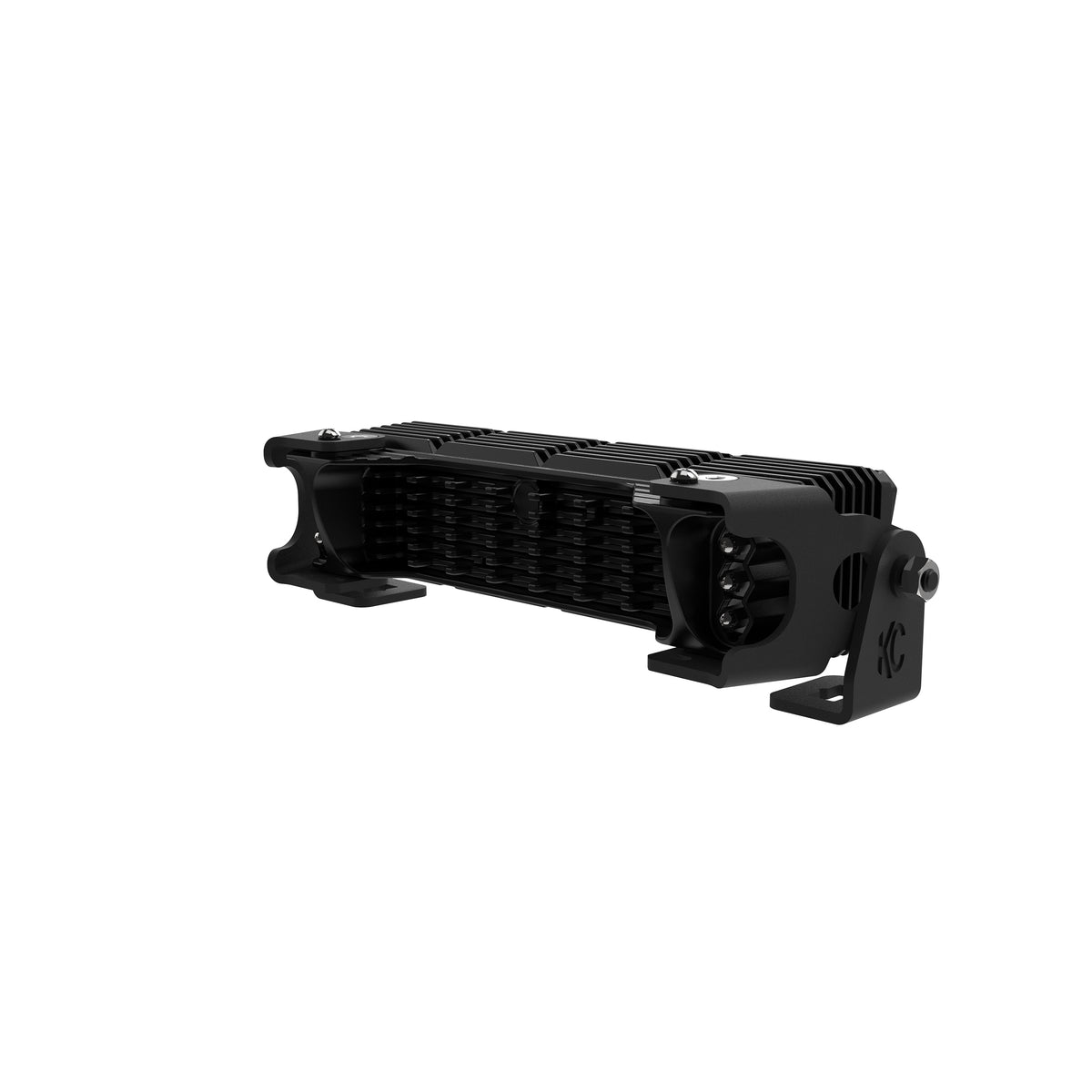

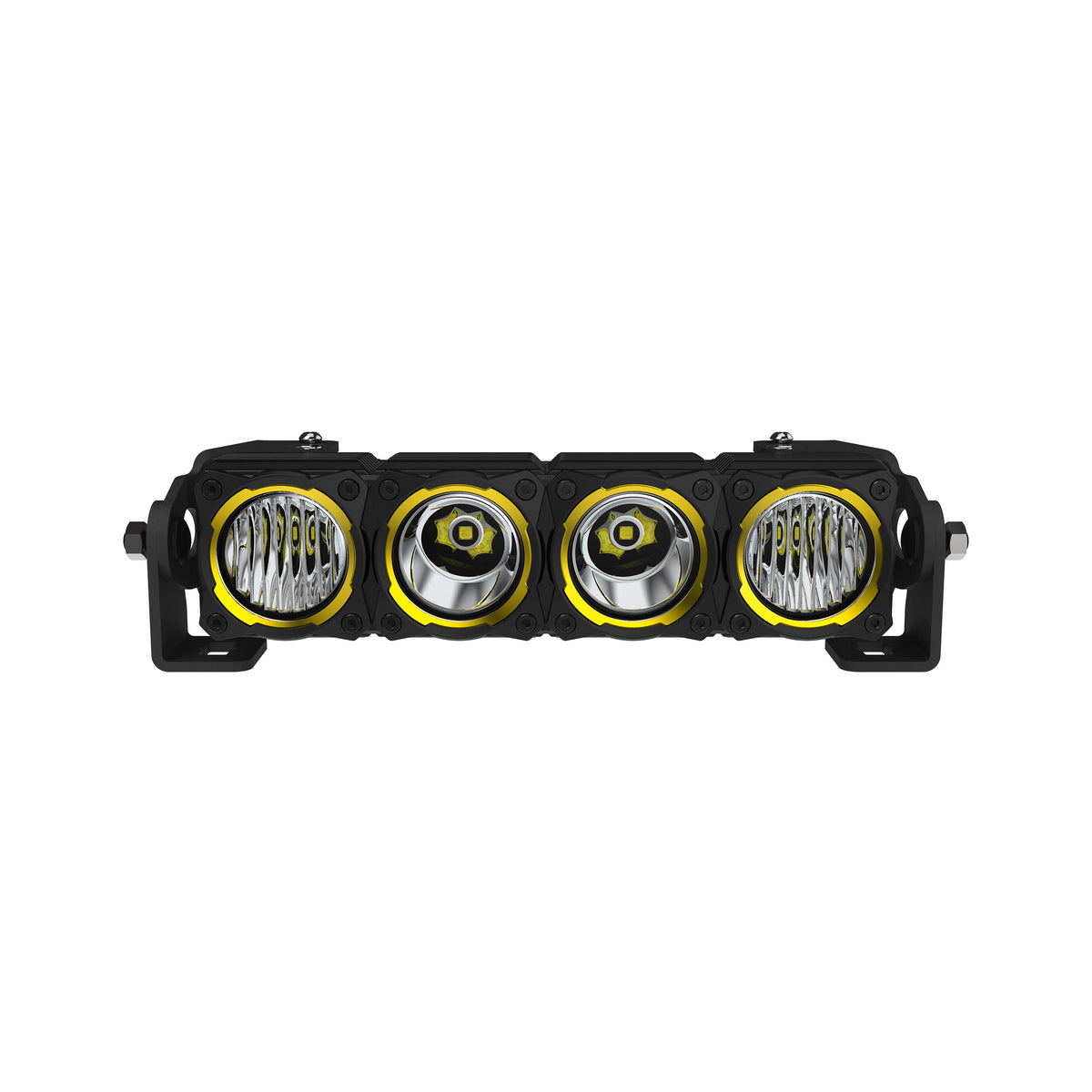

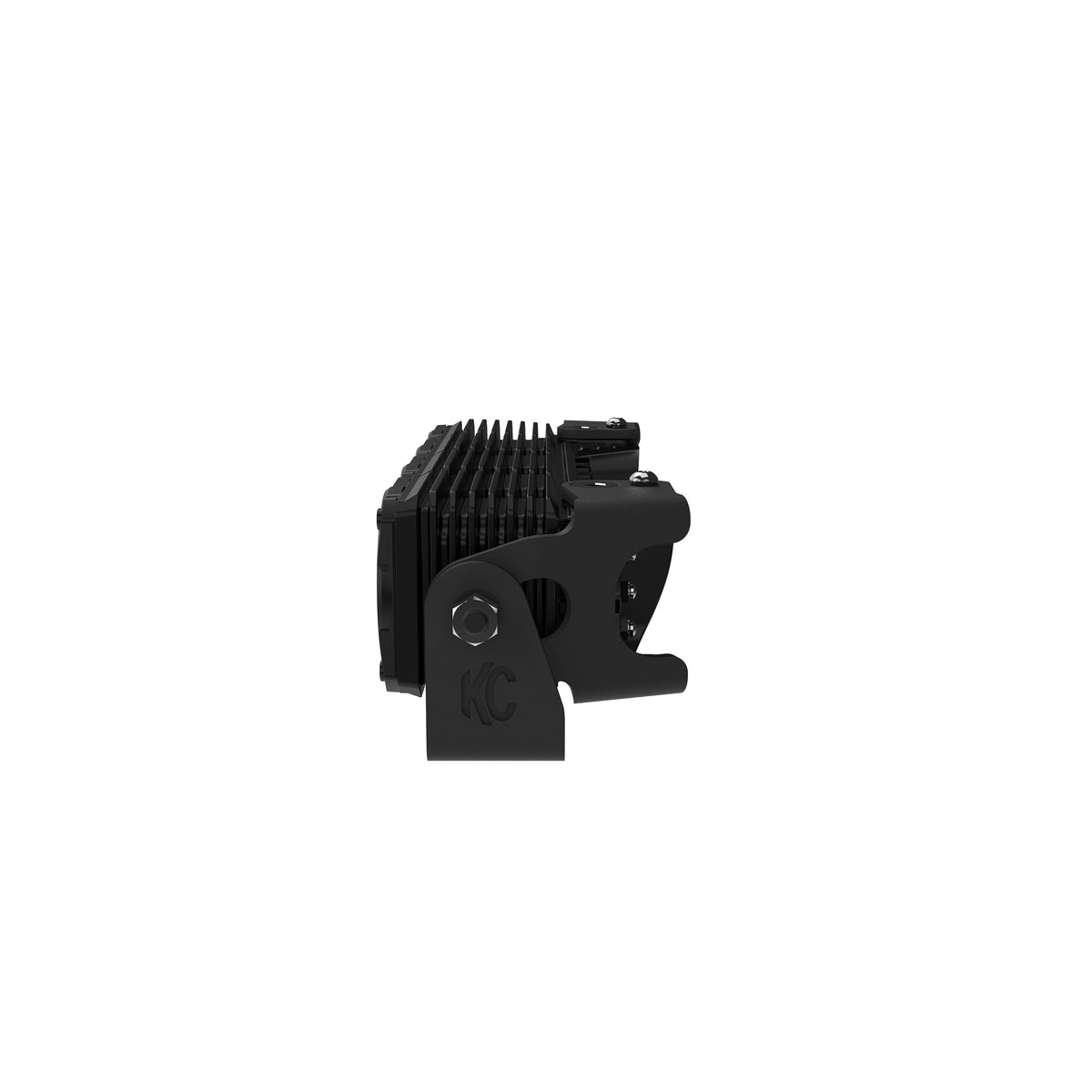

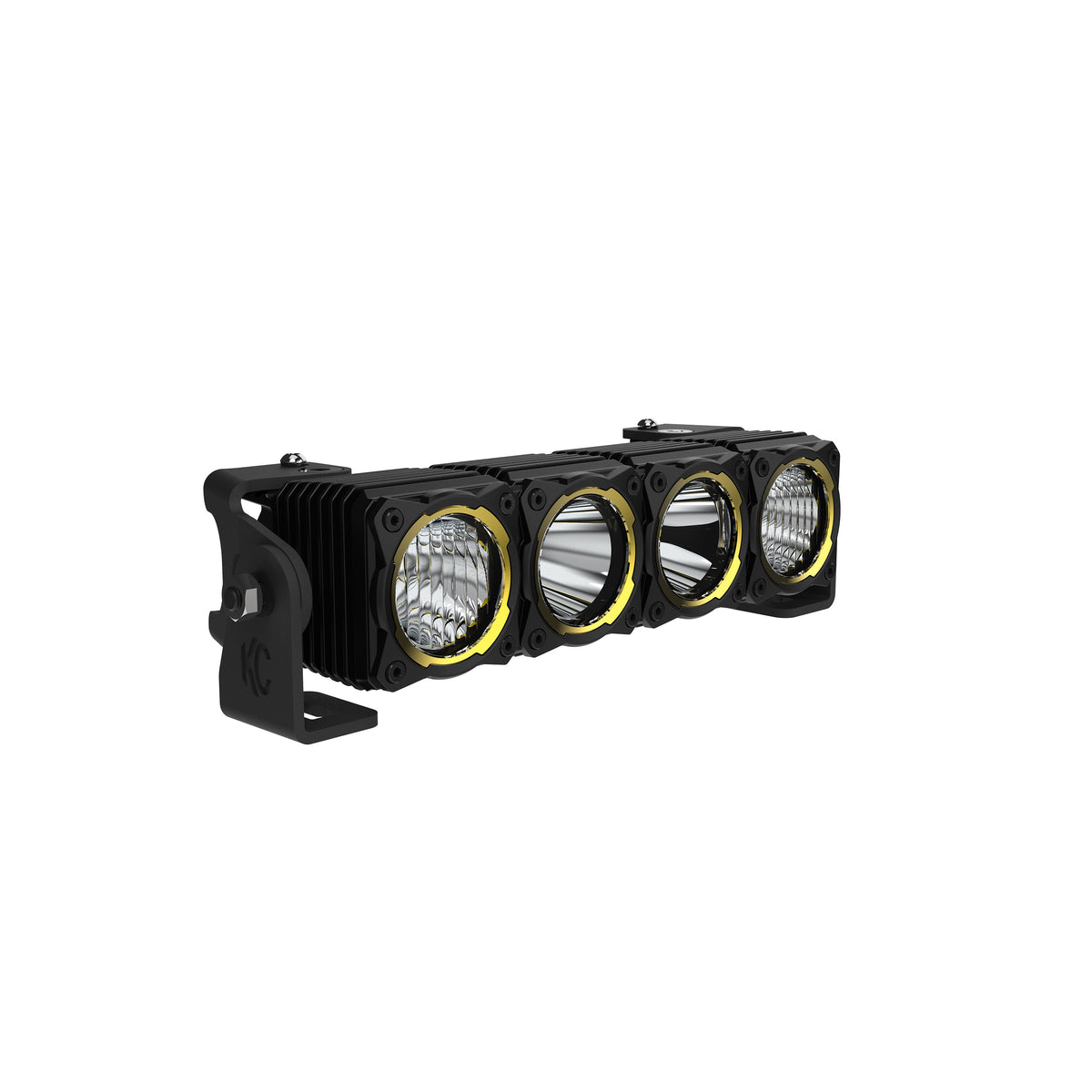

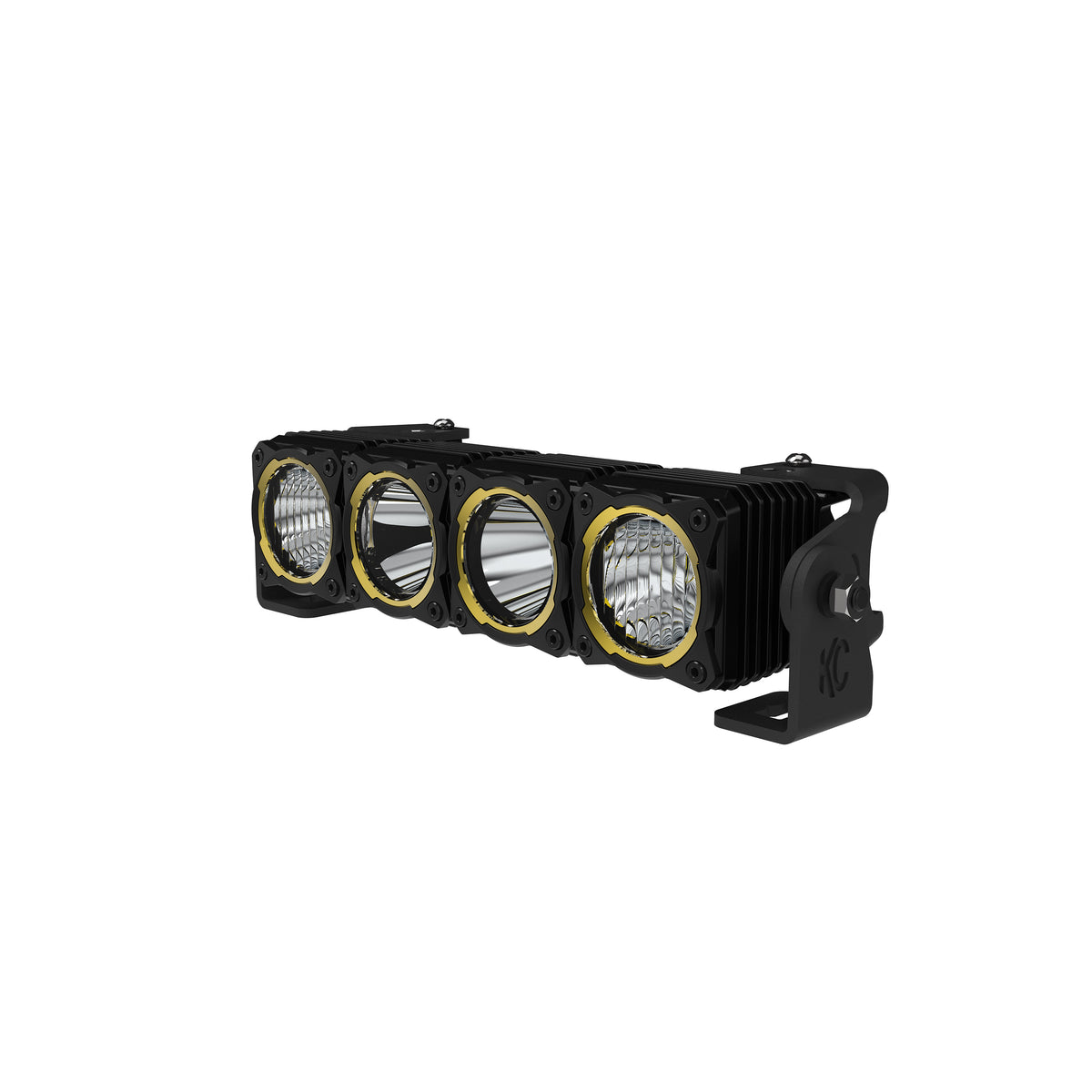

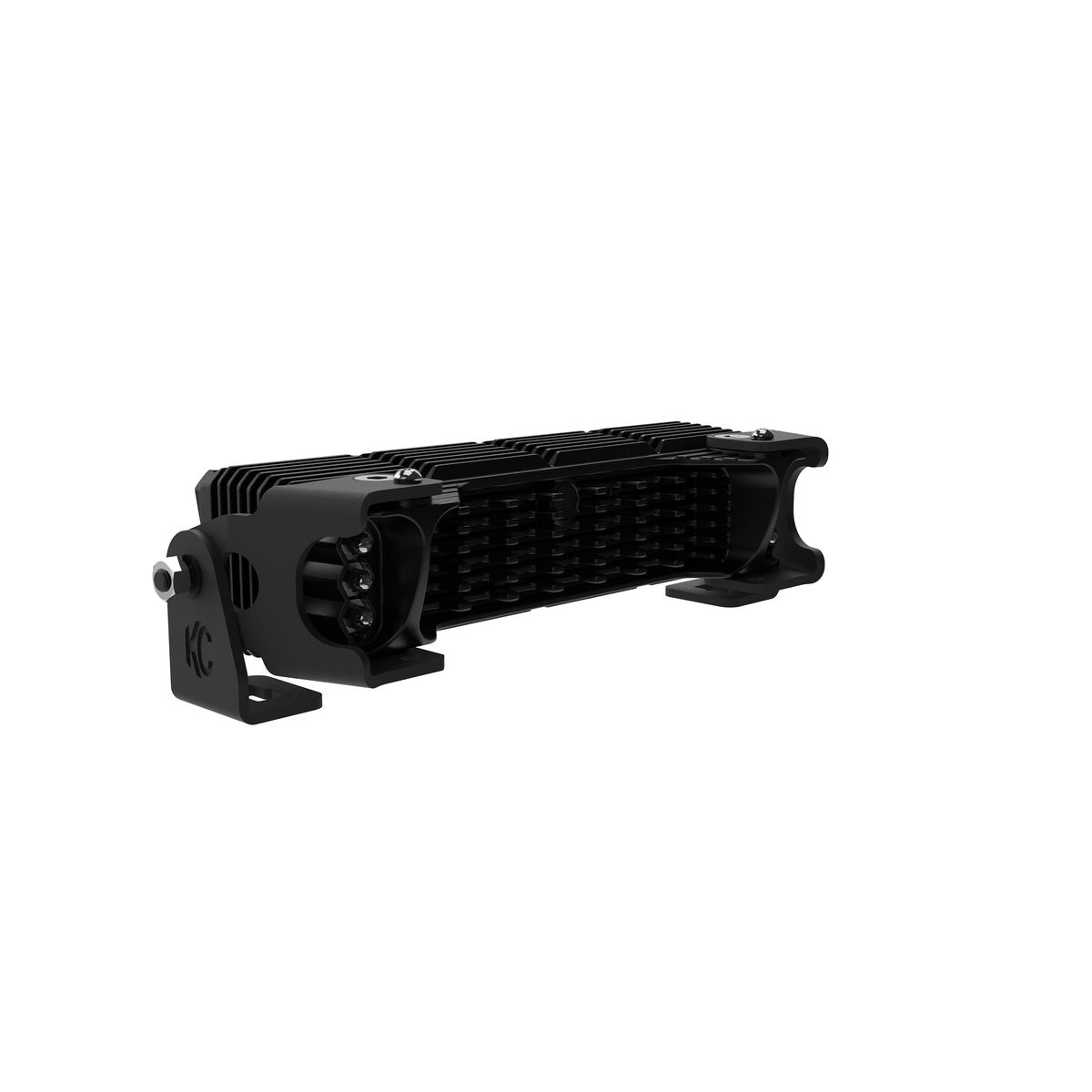

FLEX ERA® LED Light Bar - 10" - Master Kit

• High-Output Performance for Unprecedented High-Speed Performance
• Flexible Design to Adapt the Length, Curvature, and Optics to Your Needs
• Master Kit includes all Beam Pattern Lenses: Pre-assembled in Combo Beam and Spot Beam Lenses Included
• Two Power Modes: Amber LED Backlight and Full Power (off-road use only)
• Customizable Aesthetics, because who doesn't want things to match?
• Legendary KC Build Quality with the Adventure Further Guarantee

• Lumens: 7,912 lm @5000K
• LUX @ 10 meters: 1,610 lx (combo) / 1,800 lx (spot)
• Candela: 161,000 cd (combo) / 180,000 cd (spot)
• Beam Distance (Meters): 401 m (combo) / 424 m (spot)
• Beam Pattern: Combo/Spot

• Wattage: 12W (Amber Backlight) / 108W (High-Power)
• Amp Draw @ 12V: 1.0A / 9.0A
• Voltage: 9V-36V
• IP Rating: IP68
• Product Dimensions: W - 11.37" x H - 2.66" x D - 3.85"

Gone are the days of guessing which beam pattern is best for you. The KC FLEX ERA® LED Light Bar Master Kit bundles the light + both beam pattern lenses + spare o-ring + black and yellow KC logo cover + a complete wiring kit for everything you need to spend less time in the garage and more time out on the trails. Keep the pre-installed Combo Beam Lens for the best all-around performance, or choose to swap to the included Spot Beam Lens for the greatest long-distance visibility.

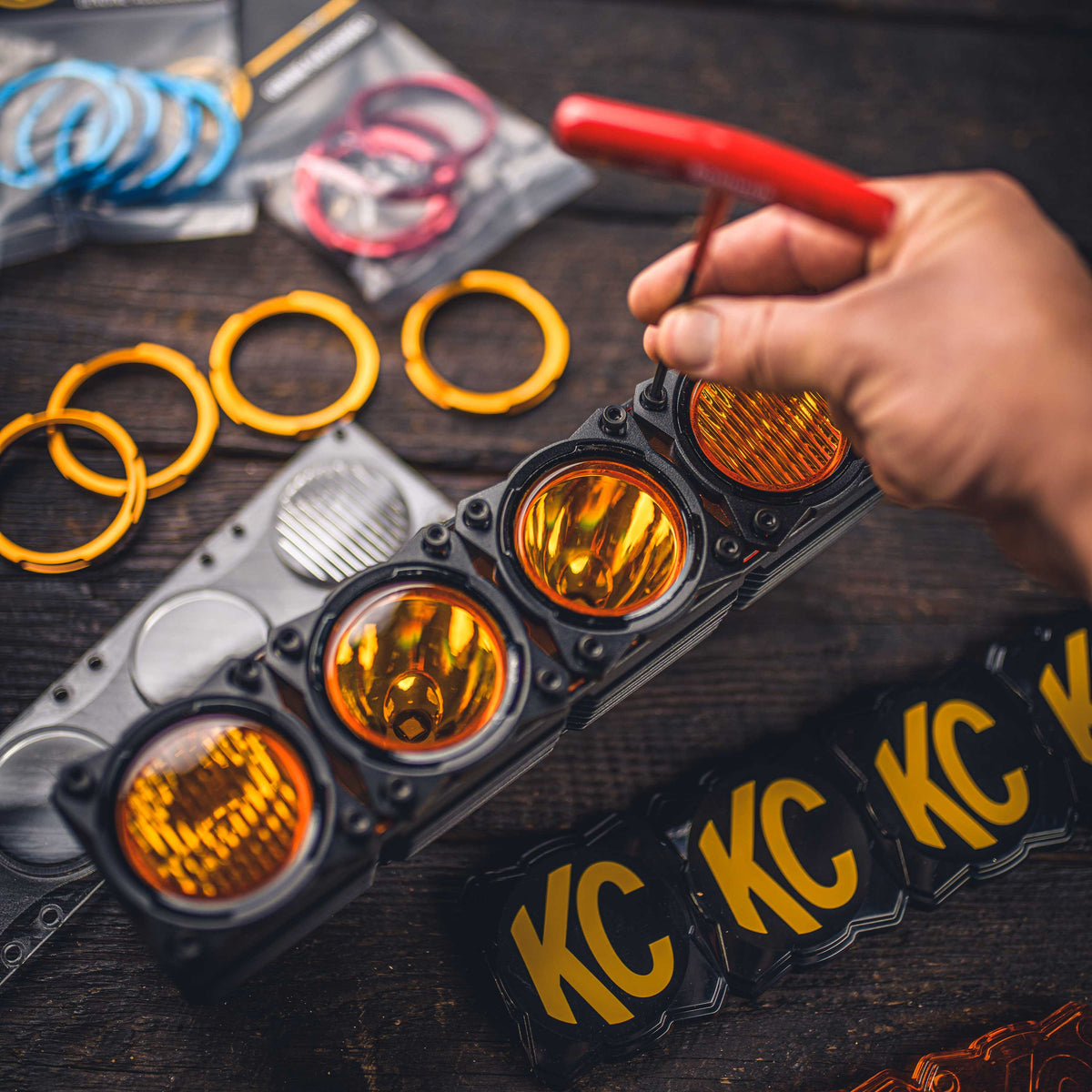

KC gets it, everyone loves to personalize their rig. Their tried and true FLEX
LED® tradition ensures that you can customize the colored accent bezel to match your rig. The FE Bar bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.

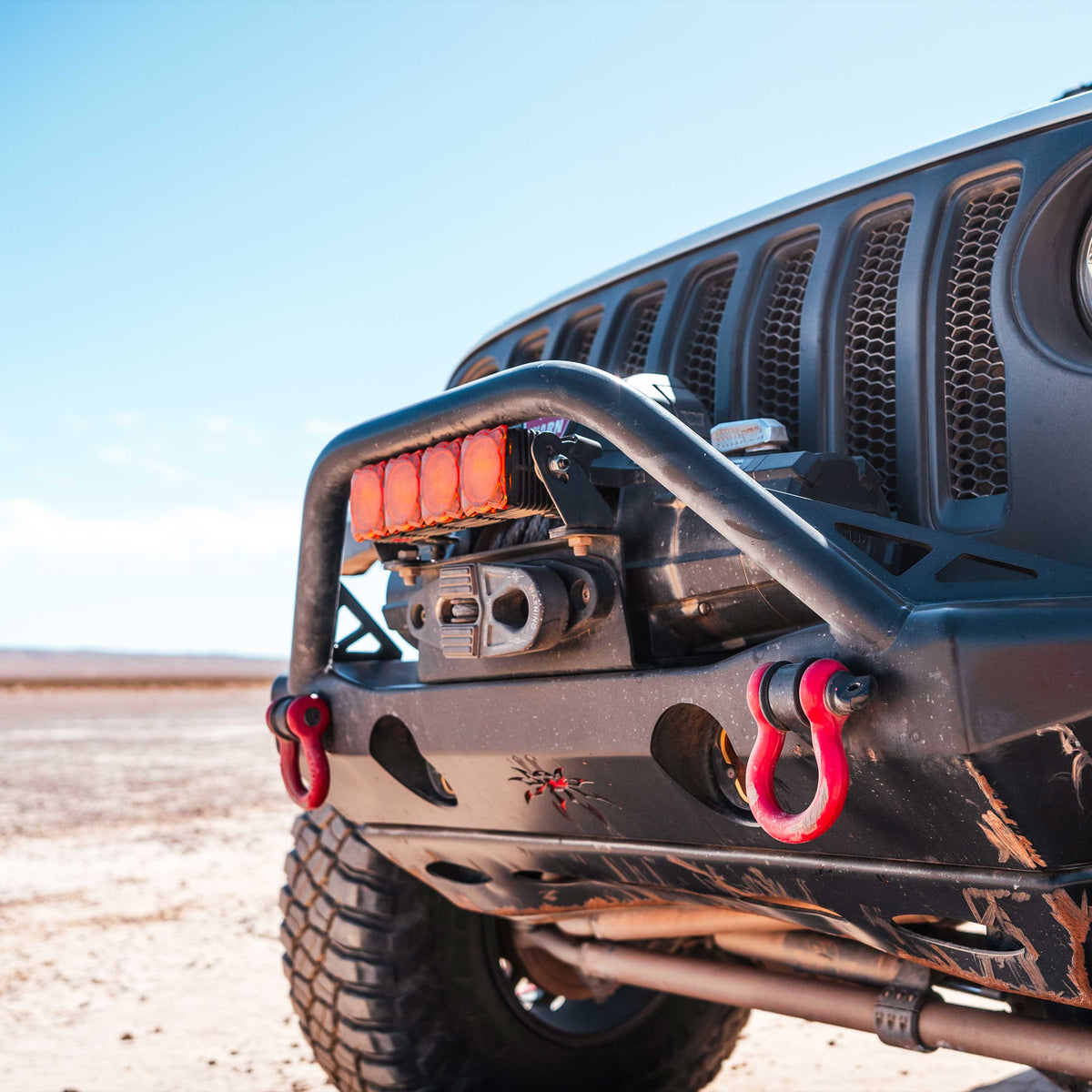

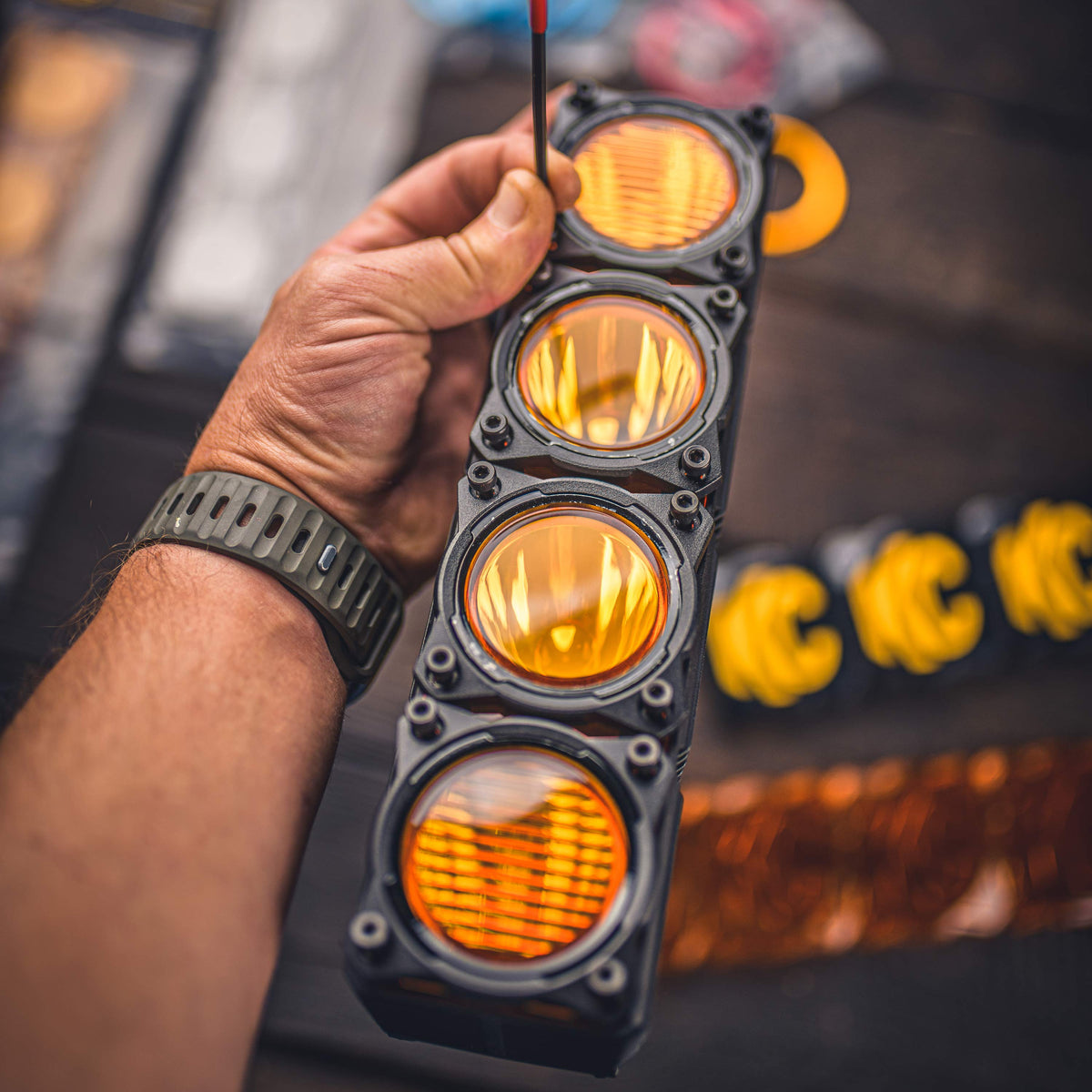

The FE Bar helps you stand out in the crowd thanks to its Amber LED backlight. This can be used on-road or off-road, daytime or nighttime, and gives you an added touch of style.

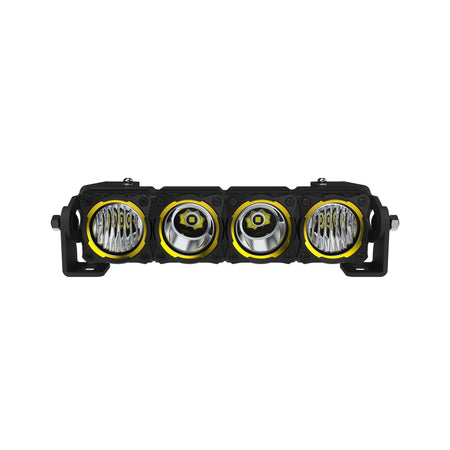

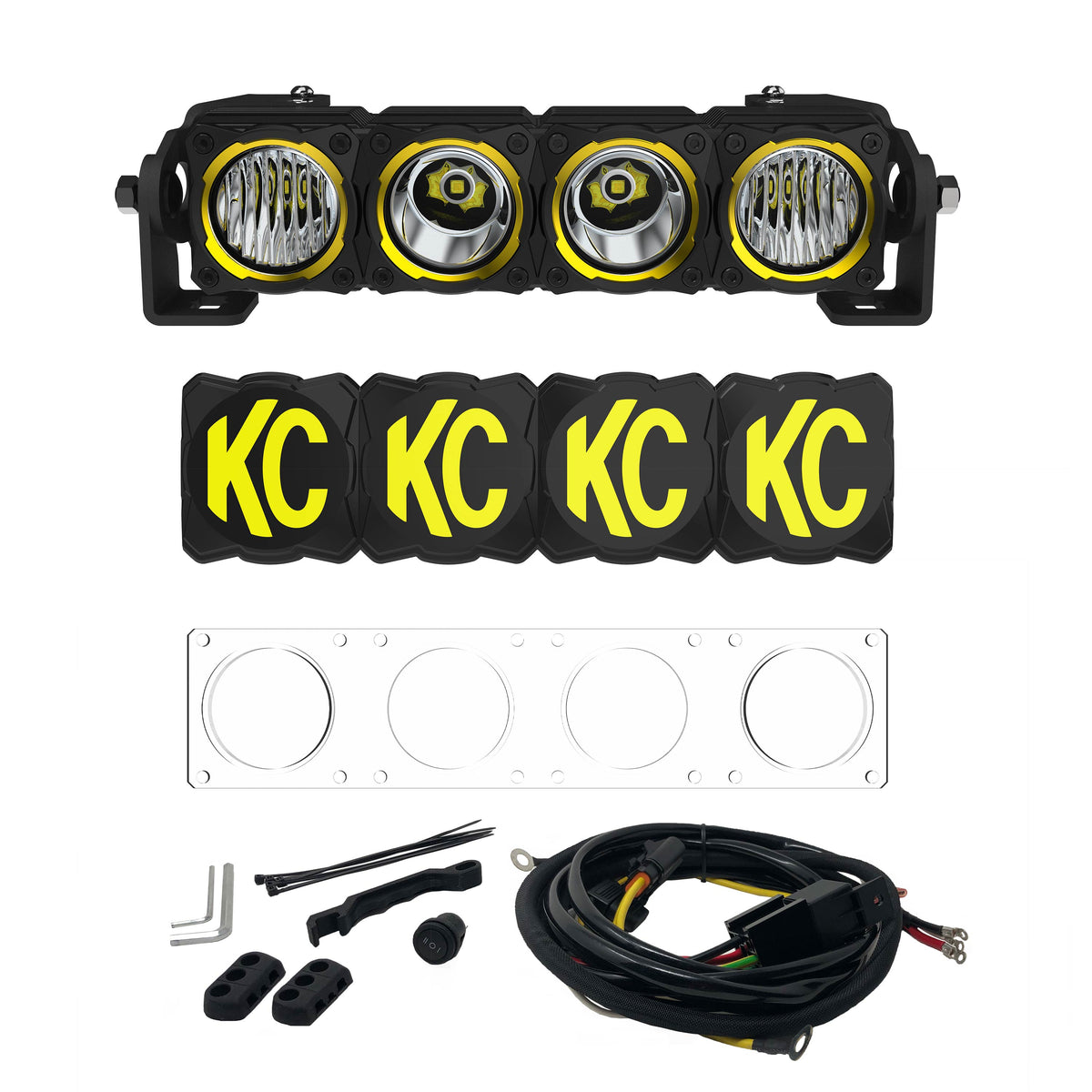

• (1) 10" KC® FLEX ERA® LED Light Bar
• (1) Combo Beam Lens (pre-installed)
• (1) Spot Beam Lens

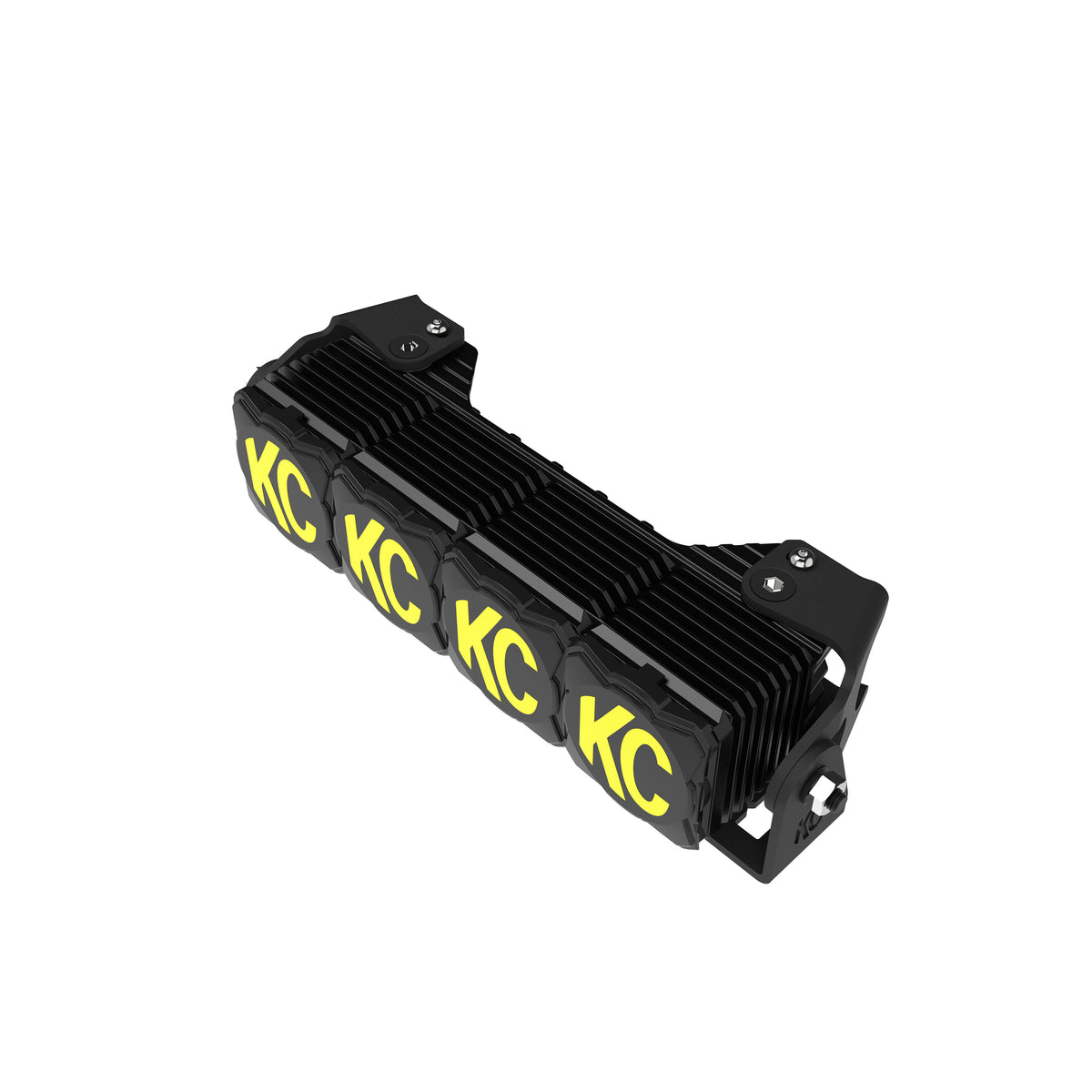

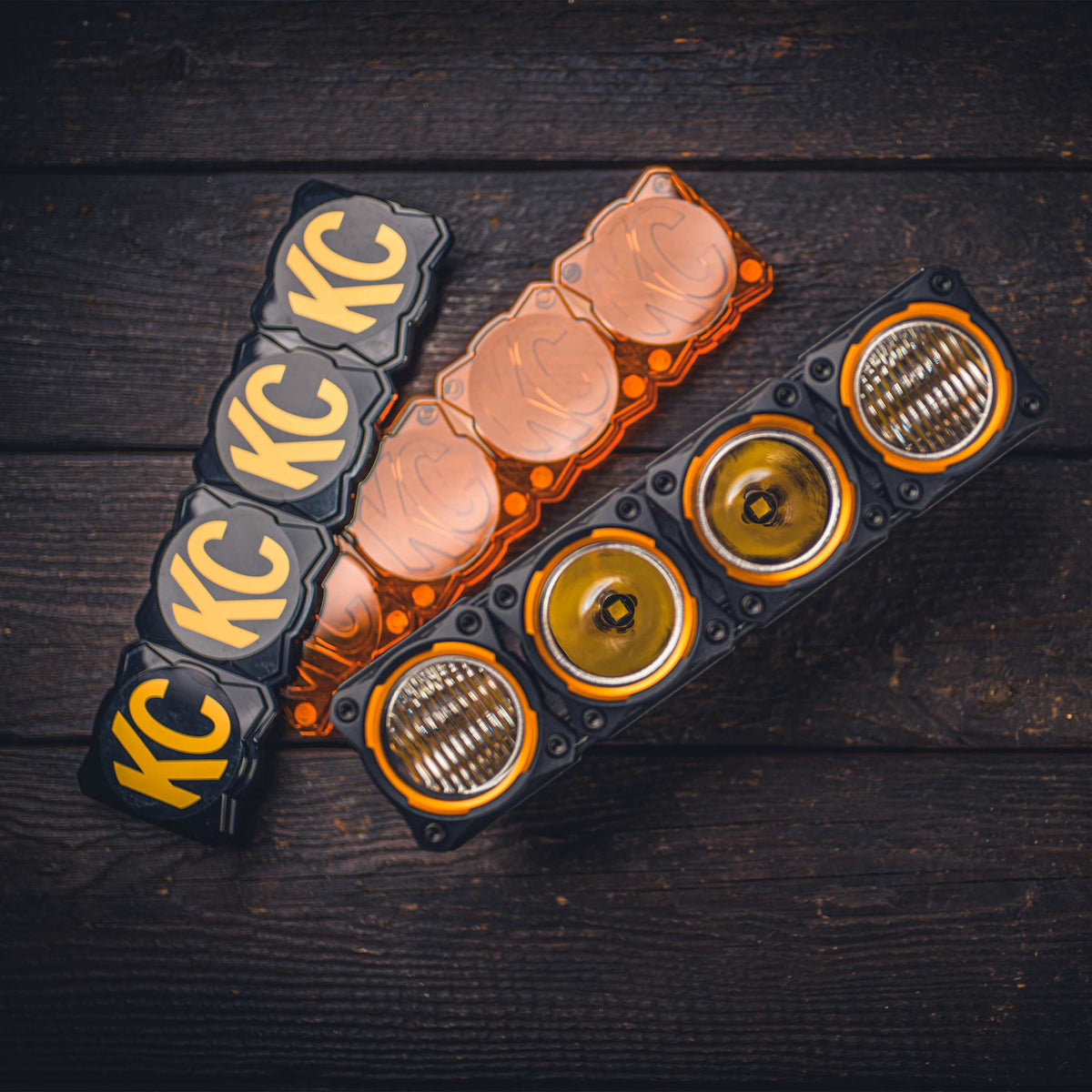

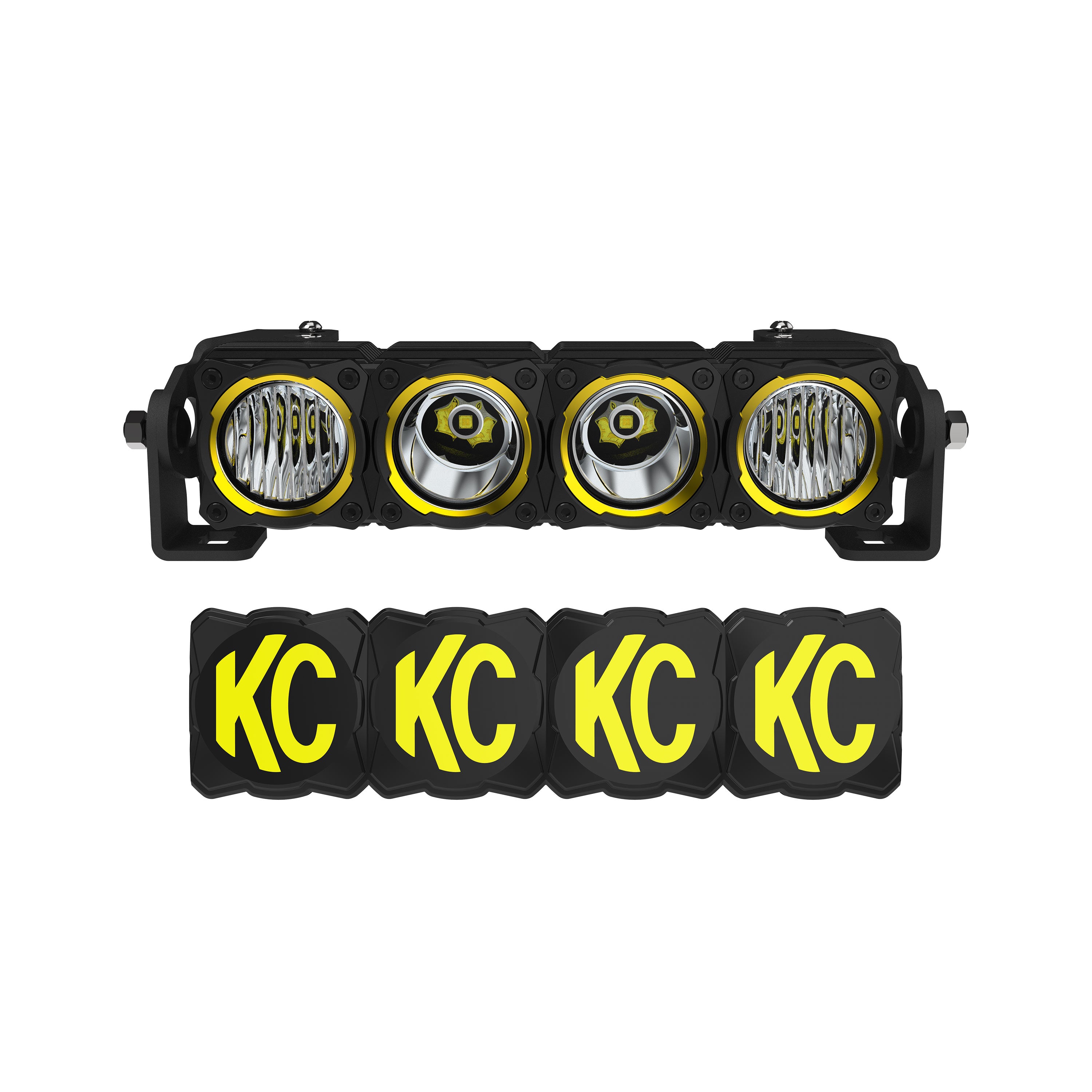

• (1) Light Cover - Black with Yellow KC Logo
• (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch

Installation Guide
