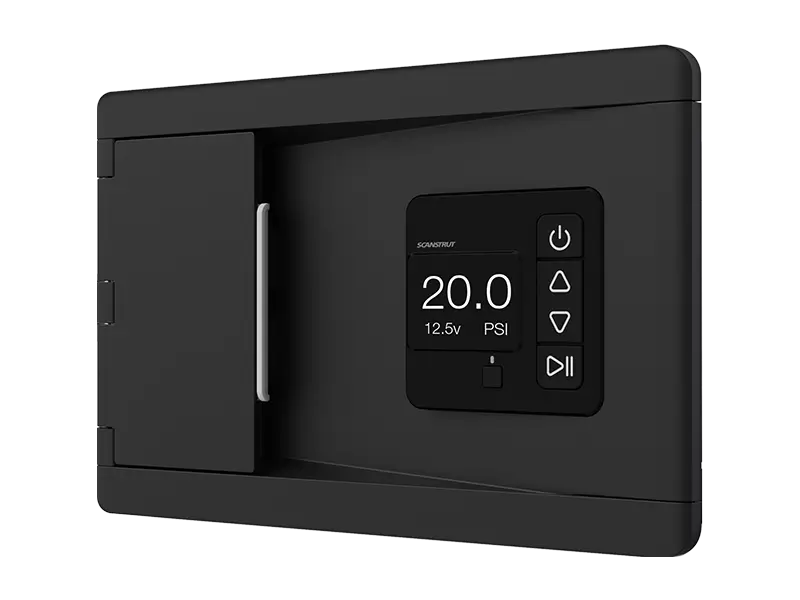

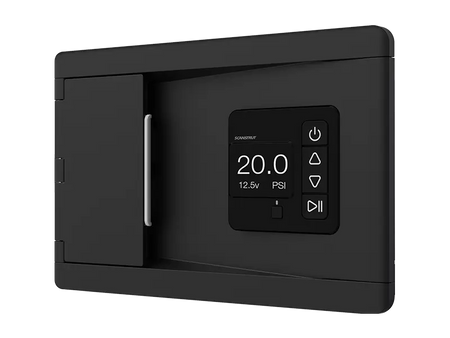

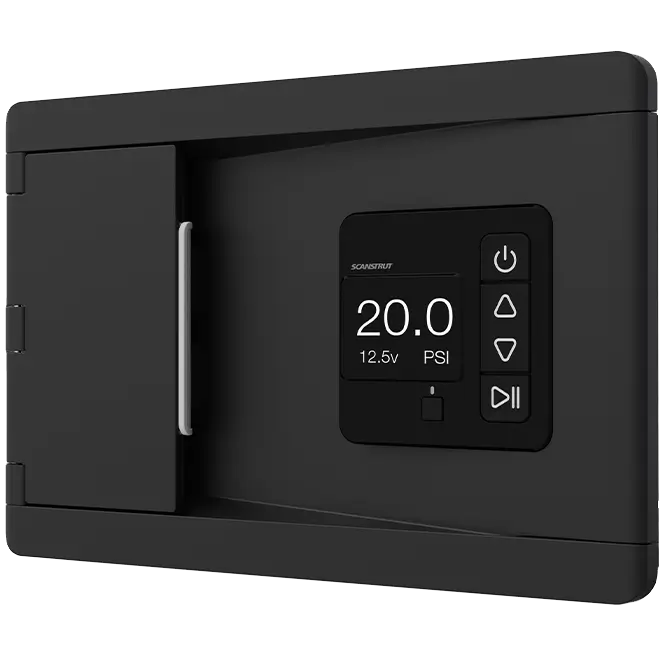

ATMOS 12V Integrated Air Station

$499 USD

Shipping calculated at checkout.

In stock

Payment methods

Amazon American Express Apple Pay Diners ClubDiscoverGoogle Pay MastercardPayPalShop Pay Visa

Designed to maximize quality time on the water

Skip the hassle and hit the water faster with ATMOS - the ultimate built-in air station that inflates your paddleboards, foils, tenders and more!

Designed to be compact, lightweight, and sleek, ATMOS maximizes convenience without taking up precious space in your van. Whether you're gliding across calm lakes or tackling the open sea, ATMOS makes every paddle-boarding adventure effortless.

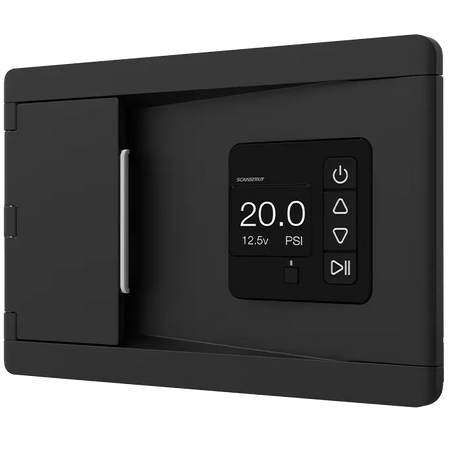

With both inflate and deflate functions, setting up and packing away your paddleboard is a breeze. Just attach the hose, press start, and kick back with a drink while ATMOS does the work for you!

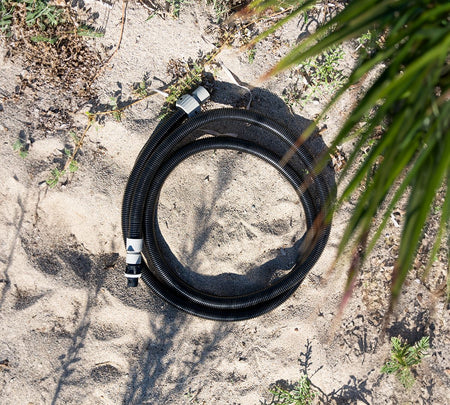

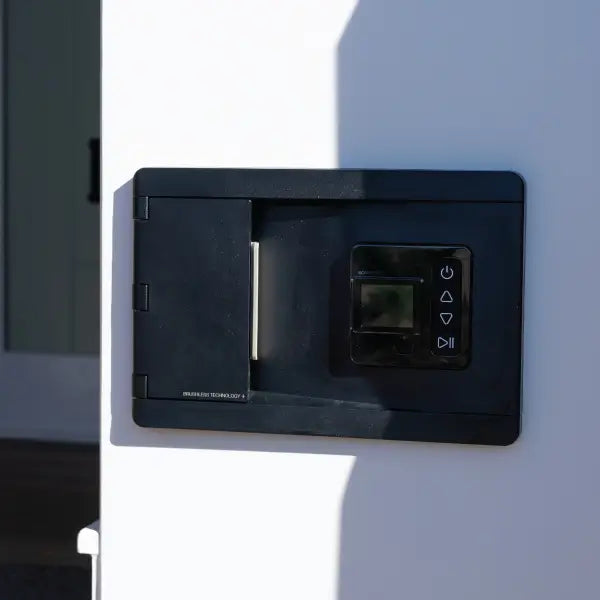

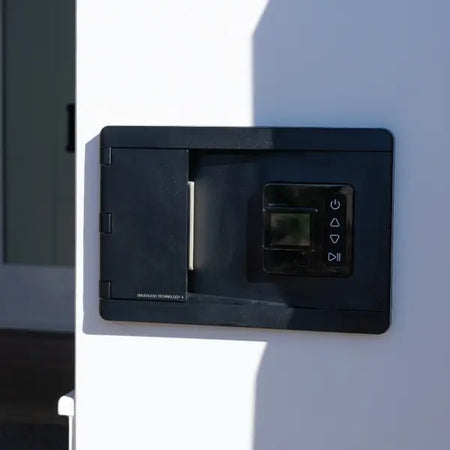

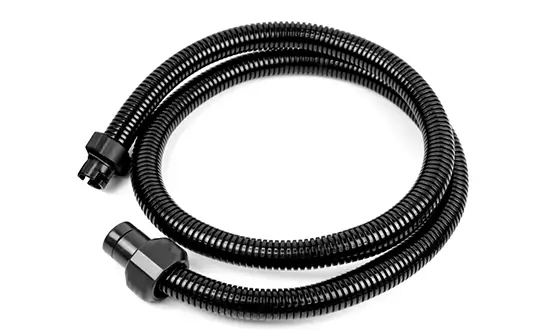

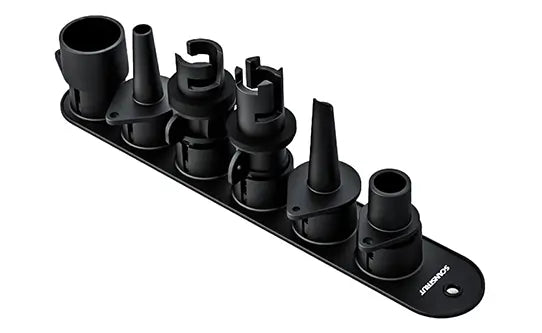

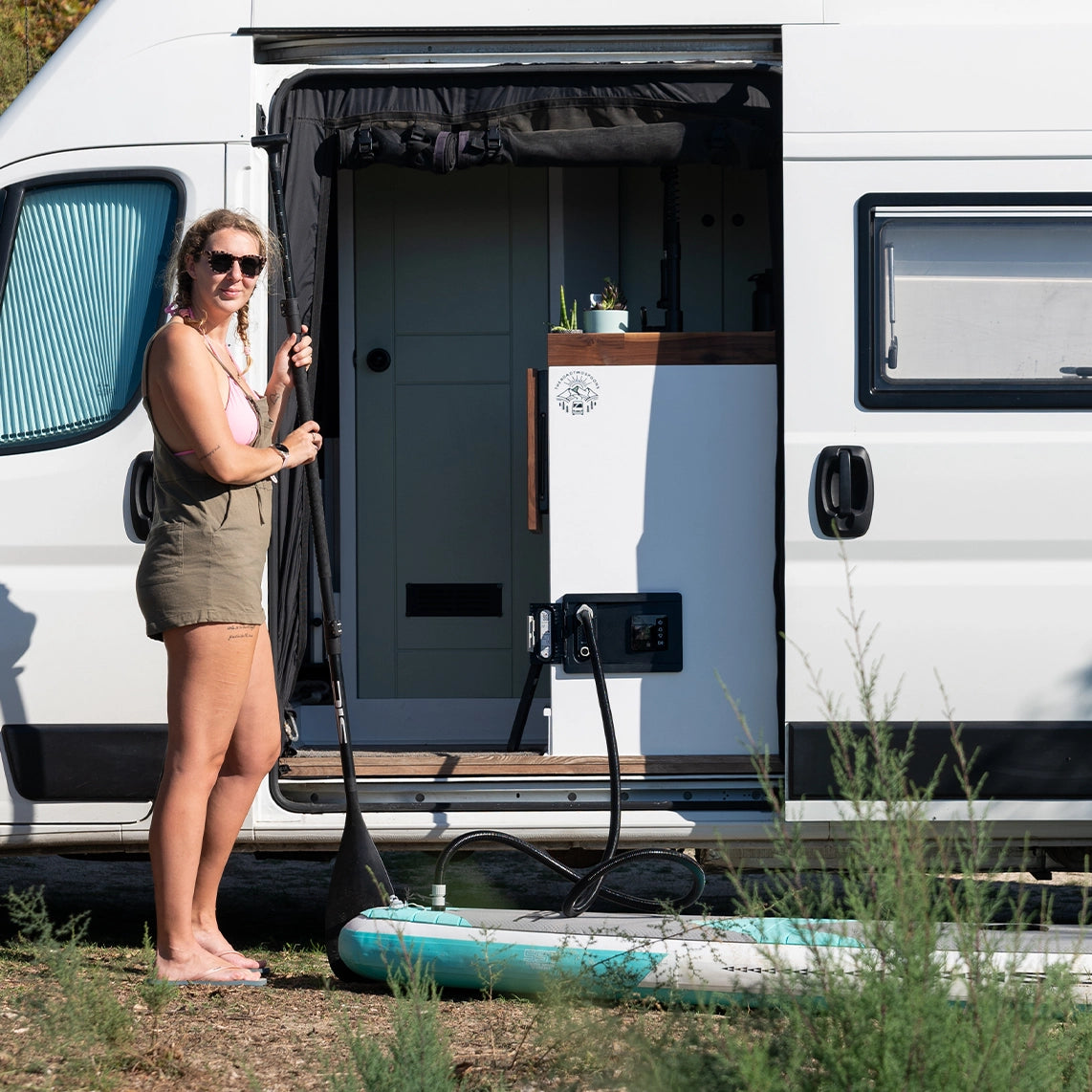

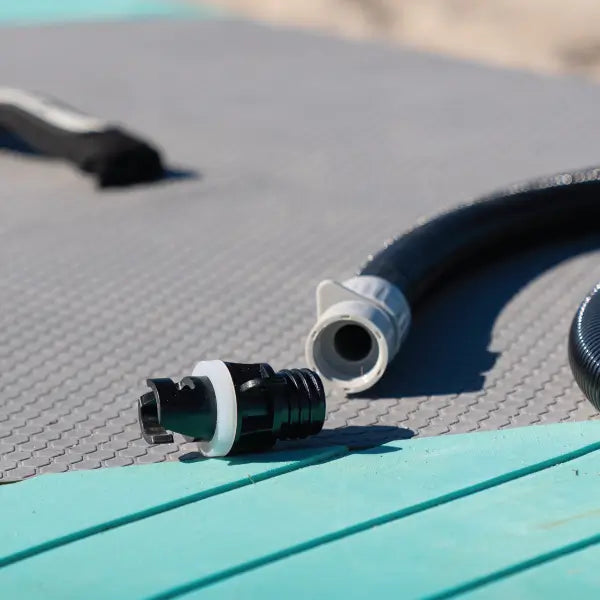

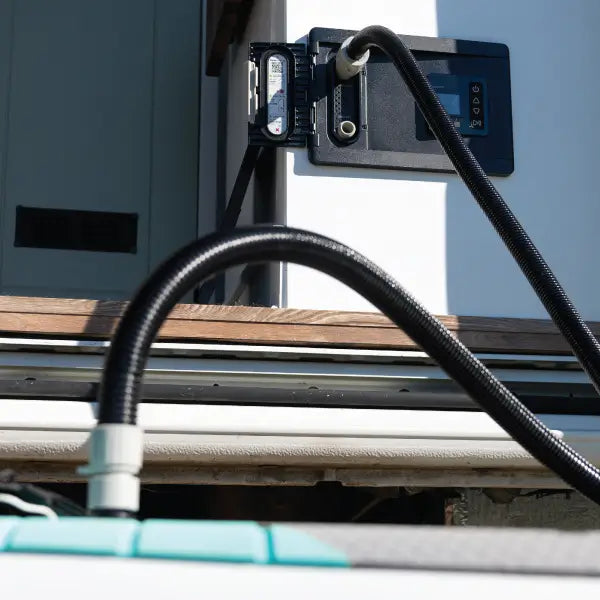

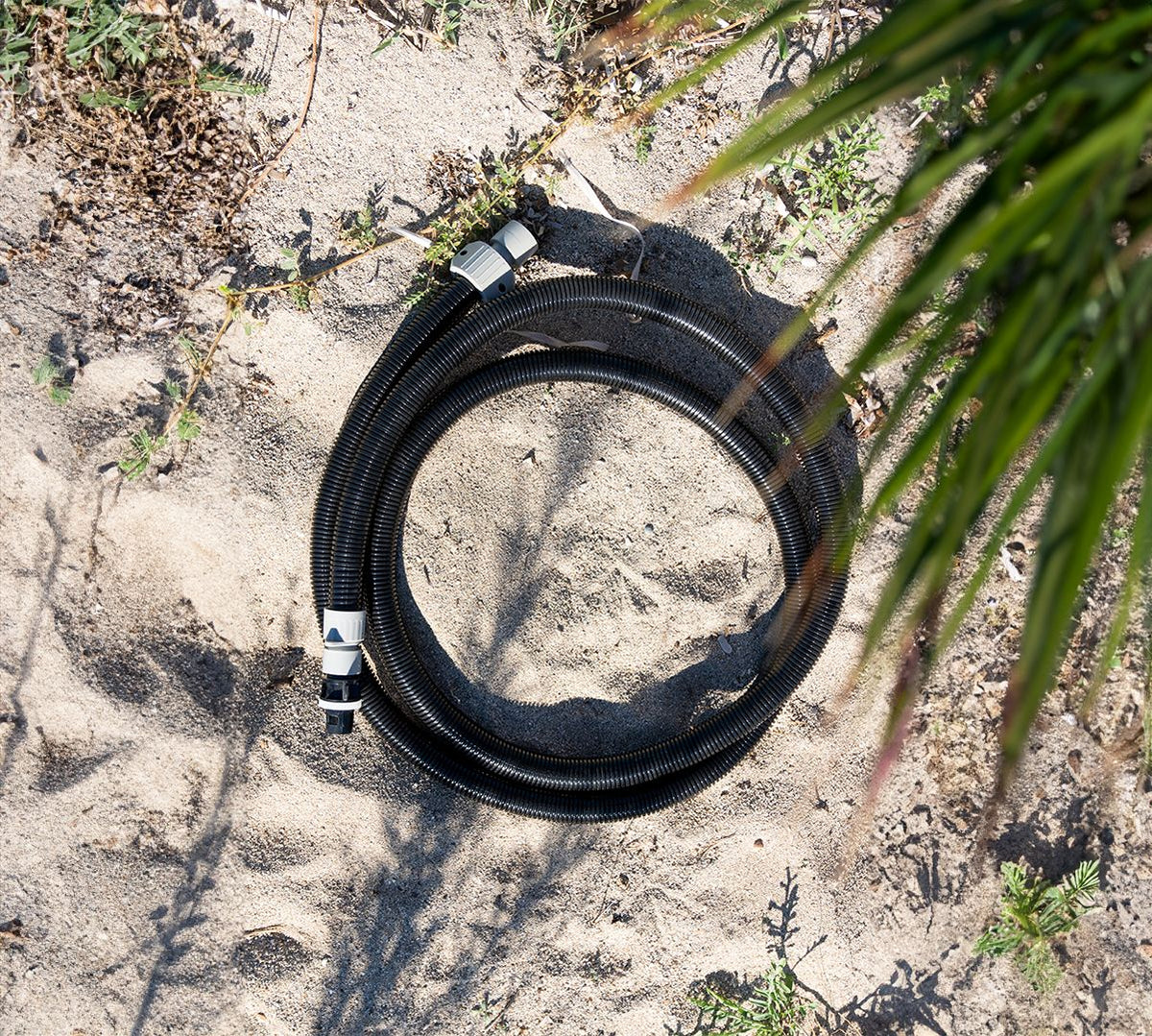

Easily integrate ATMOS into your van setup with its 2.5-meter hose and six versatile attachments, enabling other sporting and uses, so you can spend less time prepping and more time enjoying your sports!

Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh outdoor environments.

Product Overview

Specs

  • Ambient operating temp -20º to +50 ºC
  • Input voltage 12V Battery system (11.5 – 14V)
  • Max current draw 12A (140W)
  • Max pressure 20 PSI / 1.37 BAR
  • Max volume of airflow 0-1 PSI 350 LPM/12.3 CFM
  • Max volume of airflow 1-20 PSI 70 LPM/2.5 CFM
  • Standby power draw 0.1W Max
  • Two stage pump: Stage 1 = 0 - 1 PSI
    Stage 2 = 1.1 - 20 PSI

Environment

  • Environmental protection Conformal coated electronics and PCB
  • Brushless Technology Featuring high performance brushless motors designed for the marine environment.
  • Protection Reverse polarity, short-circuit, under voltage, overload, over temp.
  • Certifications CE, ROHS, UN ECE R10, UKCA

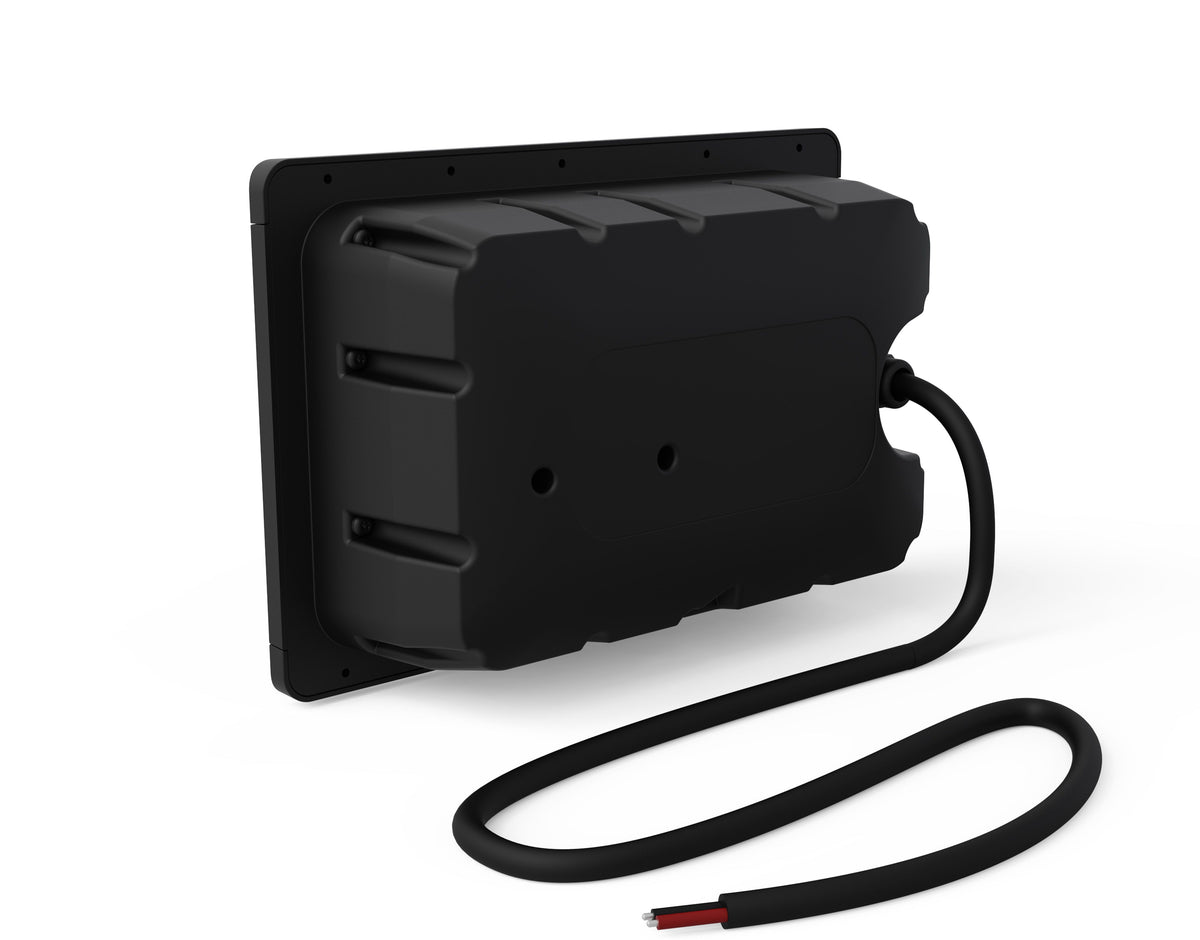

  • Cable length 500mm (20”) 1.5mm2 16 AWG
  • Waterproof rating IPX6 front and rear (door closed)
  • Air flow In and out of front of unit only. Rear of unit sealed

Safety

  • Max run time 25 minutes (3 SUPs)
  • Under protection Soft motor start
  • Standby mode No activity auto shut off - 5 mins
  • Max pressure output 20 PSI / 1.4 BAR
  • Warranty 2 Year warranty
  • Auto shut-off At target pressure
  • Ambient operating temp -20º to +50 ºC
  • Ignition Protection ATMOS SC-AOB-A2 meets the ISO 8846 and SAE J1171 test standard for Ignition Protection.

Installation

How: Panel mounted using self-tapping screws or bolts (not included), foam gasket included.

Installation angle: + 10º to - 30º from vertical

Service: No end-user serviceable parts

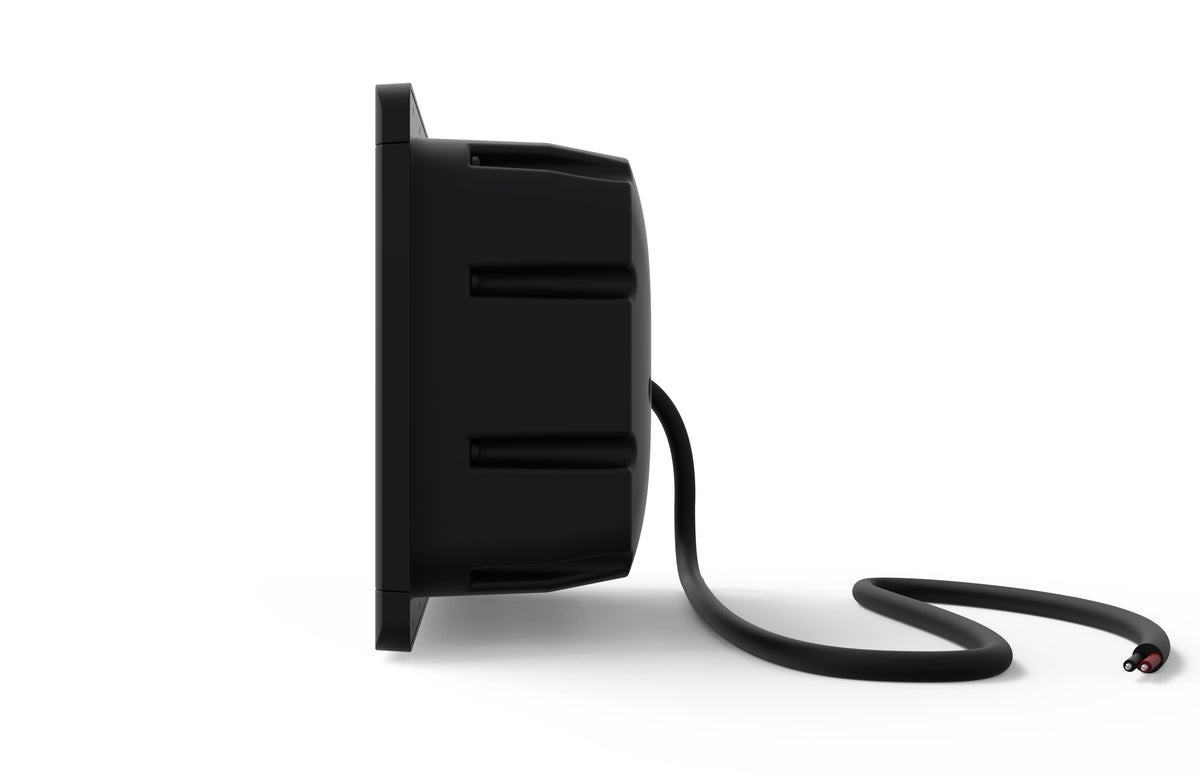

Where: Fit into a wide variety of locations on board: seating, side panels or consoles. Min cavity depth 110mm (4.33”)

Ignition Protection - ISO 8846 and SAE J1171: ATMOS has successfully undergone all required tests and complies with the rigorous standard for Ignition Protection. This certification signifies that ATMOS can be safely installed in any location on a boat
or vehicle.
